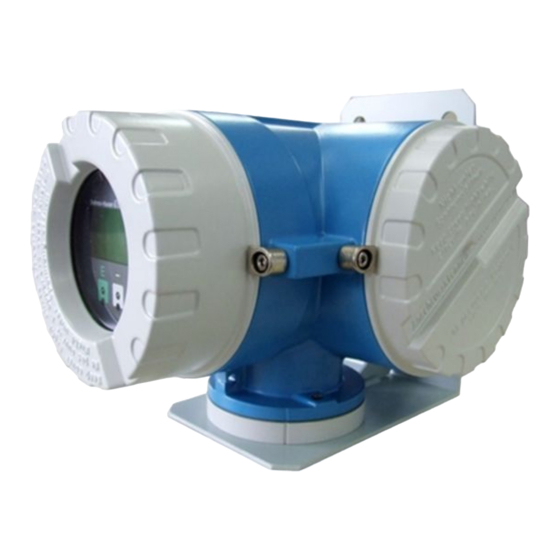

- Page 1 Operating Instructions Promonitor NRF560 Tank Side Monitor BA00425G/08/EN/02.12 71201677 Valid as of Software-Version: V.1.94...
- Page 2 Displacer status LEVEL Gauge status Promonitor NRF560 is a monitoring unit for use with the Proservo NMS5 of tank gauges. The Proservo NMS5 can be operated to measure the level, interface level, bottom level, or to hoist the displacer. ®...
-
Page 3: Table Of Contents
10.4 Contact addresses of Endress+Hauser ....33 Cable Gland ....... . . 16 Technical data . -
Page 4: Safety Instructions
The Promonitor NRF 560 is a tank side monitor and control station for the Proservo NMS5 of intelligent tank gauges. The Promonitor NRF560 is a simple low-cost tank site monitor for displaying interface level, tank bottom level, and temperature. Additionally, the Proservo NMS5 can be operated to measure the level, interface level, bottom level, or to hoist the displacer. -
Page 5: Notes On Safety Conventions And Symbols
A connection made to the plant grounding system which may be of type e.g. neutral star or equipotential line according to national or company practice Temperature resistance of the connection cables States, that the connection cables must be resistant to a temperature of at least 65 °C. t > 65°C Endress+Hauser... -
Page 6: Identification
Promonitor NRF560 2 Identification Identification Device designation 2.1.1 Nameplate The following technical data are given on the instrument nameplate: Order code Serial number PROMONITOR NRF560 Power supply Order code Manufacturing date Ser. no. Test date Supply Tester Ex d IIC T4 Certification number... - Page 7 2 Identification Promonitor NRF 560 Order code Serial number PROMONITOR NRF560 Input rated Order code Input Ser. no. Input rated Input -20 ~ +60 ℃ Ambient temperature Manufacturing date XP Class I, Div. 1, Gp. A, B, C, D ;...
- Page 8 Promonitor NRF560 2 Identification Order code Serial number Input rated PROMONITOR NRF560 Input Order code Ser. no. Input rated Input Ambient temperature -20 ~ +60 Manufacturing date XP Class I, Div. 1, Gp. C, D ; DIP Clsss II, Div. 1, Gp. E, F, G ; Class III.
-
Page 9: Product Structure
Promonitor NRF 560 2 Identification Product structure 2.2.1 Promonitor NRF560 Approval Weather proof, IP67 NEMA 4X TIIS Ex d IIB T4 FM XP Cl.I, Div.1, Gr.A-D CSA Cl.I, Div.1, Gr.A-D ATEX II 2G Ex d IIC T4 ATEX II 2G Ex d IIC T4, NMi IECEx, Ex d IIC T4 Gb Special version, TSP-no, to be spec. -
Page 10: Scope Of Delivery
EN 50014 "Electrical apparatus for potentially explosive atmospheres-General requirements". The instrument described in this manual thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the instrument by affixing to it the CE mark. -
Page 11: Inatallation
3.1.3 Storage Pack the measuring instrument so that is protected against impacts for storage and transport. The original pack- ing material provides the optimum protection for this. The permissible storage temperature -20... +60ºC (-4 ... 140ºF). Endress+Hauser... -
Page 12: Installation Condition
Promonitor NRF560 3 Installation Installation Condition 3.2.1 Dimensions 0.0°C LEVEL approx. 30 12 4 holes approx. approx. 85 Example of U bolt with use of standard bracket Standard mounting bracket Body color: Blue Suitable bolt: U bolt (not standard order ) 1. -
Page 13: Installation Variants
Ø 7, 4 holes PCD 78 Cable gland Flexible tube, conduit, or steel armoured cable Note! After removal of the cover, the display and operating elements of the Promonitor NRF560 can be engaged in steps of 90 degree. 0.0°C 0.0°C LEVEL LEVEL Endress+Hauser... - Page 14 Promonitor NRF560 3 Installation 3.3.2 Mounting on pipe If it is impossible to mount on wall by restruction of the construction or there is a pipe on the tank side from the start, select mounting on pipe. Customer has to prepare 50mm U bolt. Mouting braket for NRF has hole processing to mount 50mm U bolt.
-
Page 15: Wiring
4 Wiring Wiring Caution! Shut off the power supply before mounting the Promonitor NRF560 or changing a wire. Check that voltage and frequency of the local power supply tally with the data written on the name plate of the Promonitor NRF560. -
Page 16: Input
Cable Gland Caution! • Promonitor NRF560 of Ex d IIB T4, TIIS is delivered with cable glands. • Be sure to use the attached cable glands. • Except for the above approval type, cable glands are not attached. Caution! If not all the cable entries (inlets) are needed, remove the unnecessary cable glands and plug the openings. -
Page 17: Operation
5.1.1 Display The Promonitor NRF560 has an illuminated LCD that consists of 4 lines with 128 x 64 (pixels). During normal operation, it shows the level, the temperature, and the status of the device on the "HOME" position. For the display of the other data and the programming of the parameters for operation, the Promonitor NRF560 uses a convenient programming matrix. -
Page 18: Functions Of The Operating Elements
Promonitor NRF560 5 Operation Functions of the operating Elements HOME Display LEVEL data Temp.data Displacer Status Symbol Gauge status/Error Function Group Display Communication VH:position Group Message Key Guide Back Enter Matrix Function • Access to the programming matrix (touching the key for more than 3 s) •... -
Page 19: Programming Matrix
Promonitor NRF 560 5 Operation Programming Matrix From the Promonitor NRF560, you can operate the Proservo NMS5. The following Proservo NMS5 operations are available from the Promonitor NRF560: • Level measurement • Displacer hoist/stop • Interface level measurement • Tank bottom measurement Operating for NMS5 is available using access code 50. -
Page 20: Access Code Setting
50 as well: functions the selection of 50 offers are also available. Inversely, if you select code 50, the available functions are limited. Setting for Promonitor NRF560 Connections The following settings are required at Proservo NMS5, in order to display Promonitor NRF560 data on Proservo NMS5 screens. Note! Power on NMS5 in first. -
Page 21: How To Select An Access Code
ACCESS CODE 0 3 9 4)"50" is blinking. Gently touch "+" again to increase the second digit from 0 to 1. Now you have 51. 5) Here touch "E"; "EDITING ENABLED" will be displayed. Endress+Hauser... -
Page 22: Home Position
Promonitor NRF560 5 Operation HOME Position After turning on the power supply, the LCD first shows the current data on the HOME position. HOME position The letters A, B, and C stand for the areas where information on measured values and status of the device is... - Page 23 The displacer is being lowered and in correction of balance. The displacer is resting at the lower stop. Note! If no LCD operation, the Promonitor NRF560 will turn off the backlighting of the LCD 12 hours later. Touching LCD again after this time will turn on the backlighting. Endress+Hauser...
-
Page 24: Promonitor Nrf560 Programming Matrix
Promonitor NRF560 6 Promonitor NRF560 Programming Matrix Promonitor NRF560 Programming Matrix The Programming Matrix is a table in which messages appearing in the NRF560’s LCD screen are listed. When access code 50 is selected all the matrix functions are available. In the table, H stands for horizontal (row), and V for vertical (column). -
Page 25: Description Of The Programming Matrix
Promonitor NRF 560 6 Promonitor NRF560 Programming Matrix Description of the Programming Matrix Endress+Hauser... -
Page 26: Proservo Nms5 Programming Matrix
7 Proservo NMS5 Programming Matrix Proservo NMS5 Programming Matrix This section shows the programming matrix of the Proservo NMS5 (Necessary for Promonitor NRF560 only). Each matrix group appears on a separate page. The functions are described in the following way:... - Page 27 Promonitor NRF 560 7 Proservo NMS5 Programming Matrix Endress+Hauser...
-
Page 28: Maintenance
Repairs to Ex-approved devices When carrying out repairs to Ex-approved devices, please note the following: • Repairs to Ex-approved devices may only be carried out by trained personnel or by the Endress+Hauser Service. • Comply with the prevailing standards, national Ex-area regulations, safety instructions (XA) and certificates. -
Page 29: Accessories
Promonitor NRF 560 9 Accessories Accessories Mounting Bracket Note! U bolt is not attached to the mounting bracket. If you need U bolt, please contact Endress+Hauser. Example of U bolt with use of Standard mounting bracket standard bracket approx. 30... -
Page 30: Troubleshooting
10 Troubleshooting Troubleshooting If an error occurs in the Proservo NMS5, or the Promonitor NRF560, your current matrix and error message will blink alternately in the Promonitor NRF560’s LDC screen. Controls relevant to the display are operative even while an error message is displayed. -
Page 31: Spare Parts
10.1 Spare parts Spare parts are contained in kits. Spare parts which you can order from Endress+Hauser for the Promonitor are shown with their order numbers in the diagram below. For more information on service and spare parts, contact Endress+Hauser. - Page 32 Promonitor NRF560 10 Troubleshooting Specification Specification 11 O-ring, Packing 33 Fuse 017803-0030 O-ring,display cover, NBR 017801-0105 Fuse 250VAC T2A50 16 Mechanical seal 017801-0107 Fuse cover, 10 pcs. 56004435 Set NRF screw part 34 Terminal 21 Cover...
-
Page 33: Return
10 Troubleshooting 10.2 Return The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or calibration: • Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where fluid may be present. -
Page 34: Technical Data
Promonitor NRF560 11 Techenical data Technical data 11.1 Technical data at a glance Input Multidrop local HART Display (LCD) 4 line. 128 x 64 (pixels), illuminated Language selection: English, Chinese, Japanese, Programming 3 visual operating elements for selection of matrix functions ("touch control") Power supply High Voltage: 85...264VAC... - Page 35 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
- Page 36 www.endress.com/worldwide Endress + Hauser Japan Co., Ltd. Product Center Yamanashi 862-1 Mitsukunugi Sakaigawa-cho Fuefuki-shi Yamanashi, 406-0846 Japan Phone: ++81 55 266 4964 Fax: ++81 55 266 4969 BA00425G/08/EN/02.12 71201677 FM+SGML 8.0J...
