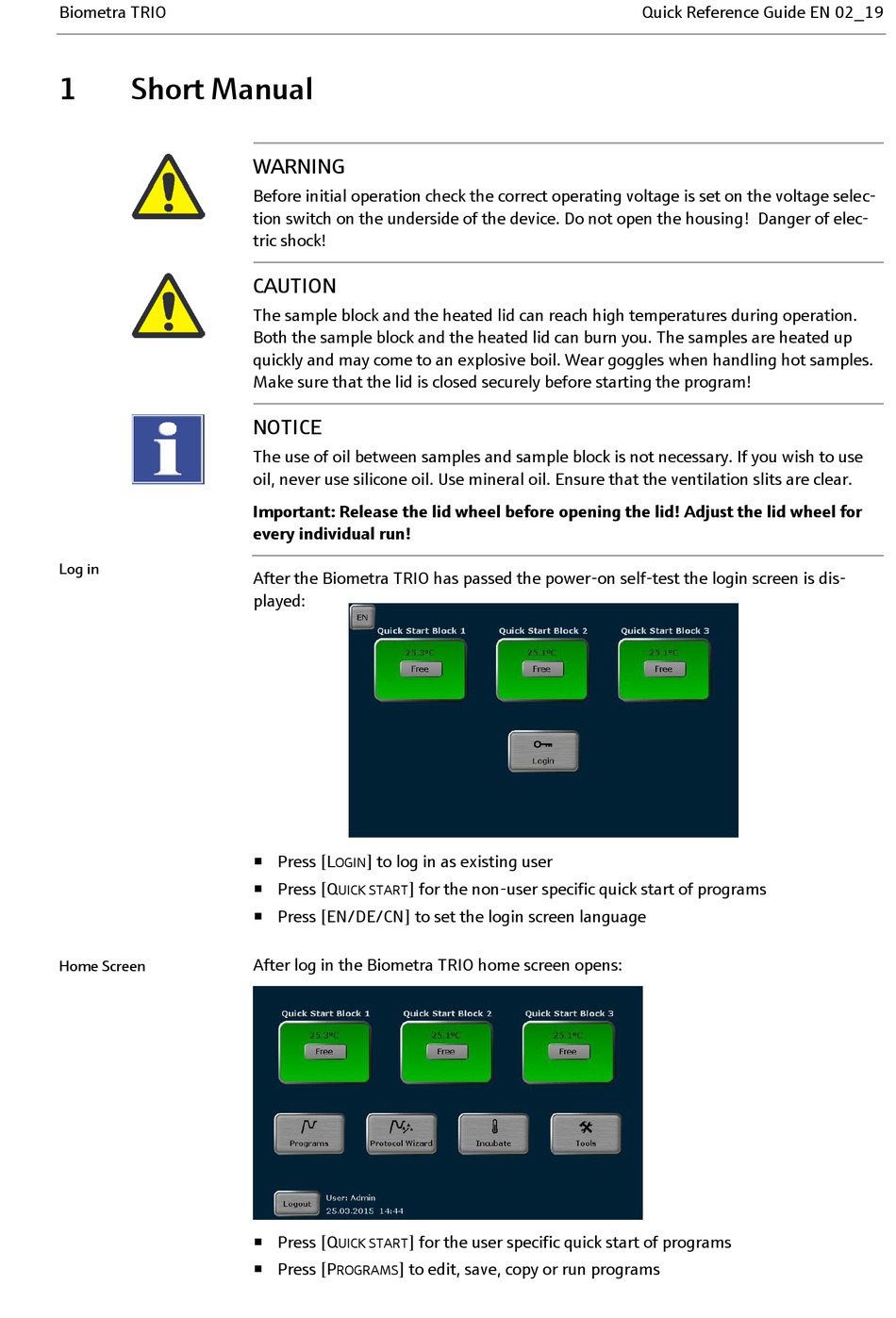

Biometra TRIO
1

Short Manual

Log in

Home Screen

WARNING
Before initial operation check the correct operating voltage is set on the voltage selec-
tion switch on the underside of the device. Do not open the housing! Danger of elec-
tric shock!
CAUTION
The sample block and the heated lid can reach high temperatures during operation.
Both the sample block and the heated lid can burn you. The samples are heated up
quickly and may come to an explosive boil. Wear goggles when handling hot samples.
Make sure that the lid is closed securely before starting the program!
NOTICE
The use of oil between samples and sample block is not necessary. If you wish to use
oil, never use silicone oil. Use mineral oil. Ensure that the ventilation slits are clear.
Important: Release the lid wheel before opening the lid! Adjust the lid wheel for
every individual run!
After the Biometra TRIO has passed the power-on self-test the login screen is dis-
played:
 Press [L
] to log in as existing user
OGIN
 Press [Q
] for the non-user specific quick start of programs
UICK START
 Press [EN/DE/CN] to set the login screen language
After log in the Biometra TRIO home screen opens:
 Press [Q
] for the user specific quick start of programs
UICK START
 Press [P
] to edit, save, copy or run programs
ROGRAMS
Quick Reference Guide EN 02_19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Analytik Jena Biometra TRIO and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Analytik Jena Biometra TRIO

Summary of Contents for Endress+Hauser Analytik Jena Biometra TRIO

  • Page 1 Biometra TRIO Quick Reference Guide EN 02_19 Short Manual WARNING Before initial operation check the correct operating voltage is set on the voltage selec- tion switch on the underside of the device. Do not open the housing! Danger of elec- tric shock! CAUTION The sample block and the heated lid can reach high temperatures during operation.
  • Page 2 Quick Reference Guide EN 02_19 Biometra TRIO  Press [I ] to incubate the sample block at a constant temperature NCUBATE  Press [T ] to access the system settings, user management, documentation, OOLS backup tool or self-test functions  Press [L ] to log out OGOUT Important note: It depends on your rights settings if you are allowed to create, delete,...
  • Page 3 Biometra TRIO Quick Reference Guide EN 02_19  Use the cursor keys at the top of the screen to switch between program steps. The number of the currently activated step is displayed.  Touch the input box “T ” and enter a temperature (°C). EMPERATURE ...
  • Page 4 Quick Reference Guide EN 02_19 Biometra TRIO Save program Copy/Delete programs  To copy programs press the button [P ] in the Biometra TRIO home screen. ROGRAMS To copy all programs located in a user directory select a user directory and press the button [C ].
