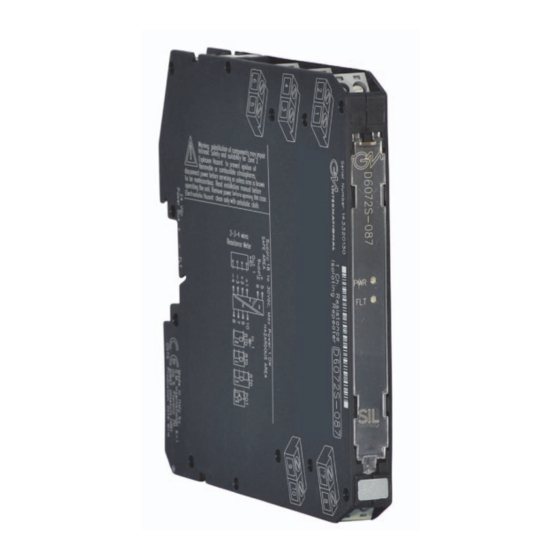

- Page 1 D6072S-087 - D6072D-087 INSTRUCTION MANUAL SIL 2 Resistance Repeater, DIN-Rail Models D6072S-087, D6072D-087 D6072-087 - SIL 2 Resistance Repeater G.M. International ISM0421-7...
-
Page 2: Technical Data
): 0.1 to 10 mA. Performance: Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature, slow integration mode, 4 wires (for D6072S-087) or 3 wires (for D6072D-087) configuration for RTD, input/output range 10 to 400 Ω. Input to output, after calibration: Calibration and linearity accuracy with input standard range: <... -
Page 3: Ordering Information
D6072D-087: Input Ch1 for 3 wire RTD D6072D-087: +Output Ch1 for 2, 3 wire RTD D6072S-087: Input for 2, 3, 4 wire RTD or potentiometer D6072S-087: +Output for 2, 3, 4 wire RTD D6072D-087: Input Ch1 for 2, 3 wire RTD or potentiometer... -
Page 4: Function Diagram
Function Diagram SAFE AREA, ZONE 2 GROUP IIC T4, NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2, GROUPS A, B, C, D T-Code T4 MODEL D6072S-087 2 wires 2-3-4 wires Supply 24 Vdc Potentiometer RTD / Resistance (SIL 2) 2-3-4 wires... -
Page 5: Operation
Operation Each input channel of Resistance Isolating Repeater D6072-087 accepts a 2-3-4 wire RTD (D6072S-087) or 2-3 wire RTD (D6072D-087) temperature or transmitting potentiometer sensor and repeats, with isolation, the signal to drive a load. Presence of supply power is displayed by a “POWER ON” green signaling LED. Burnout condition is signaled by red front panel LED for each channel.
