Summary of Contents for GMI D5072D-087

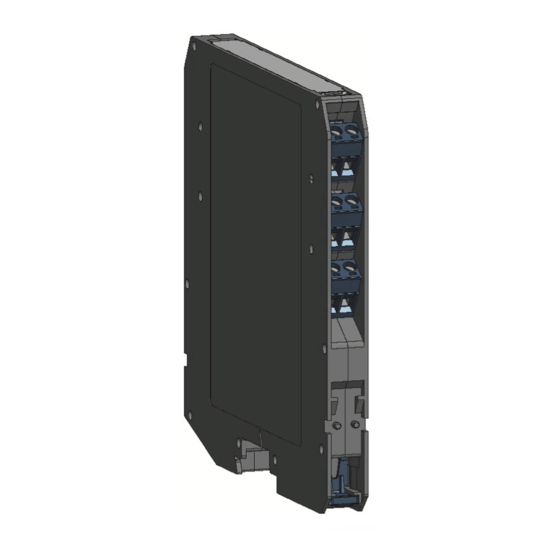

- Page 1 D5072S-087 - D5072D-087 INSTRUCTION MANUAL SIL 2 Resistance Isolating Repeater DIN-Rail Models D5072S-087, D5072D-087 D5072-087 - SIL 2 Resistance Isolating Repeater G.M. International ISM0178-5...
-
Page 2: Technical Data
): 0.1 to 10 mA. Performance: Ref. Conditions: 24 V supply, 23 ± 1 °C ambient temperature, slow integration mode, 4 wires (for D5072S-087) or 3 wires (for D5072D-087) configuration for RTD, input/output range 10 to 400 Ω. Input to output: Calibration and linearity accuracy with input standard range: <... -
Page 3: Ordering Information
D5072S-087: +Output for 3, 4 wire RTD D5072D-078: Input Ch1 for 3 wire RTD D5072D-087: +Output Ch1 for 2, 3 wire RTD D5072S-078: Input for 2, 3, 4 wire RTD or potentiometer D5072S-087: +Output for 2, 3, 4 wire RTD... - Page 4 Ch1 7 - 8 - 9 - 10 Uo / Voc = 7.2 V ≤ Ui / Vmax 7 - 8 - 9 D5072D-087 10 - 11 - 12 Ch1 7 - 8 - 9 - 10 D5072S-087 Io / Isc = 23 mA ≤...
- Page 5 CLASS I, ZONE 0, GROUP IIC MODEL D5072S-087 2 wires 2-3-4 wires Supply 24 Vdc Potentiometer RTD / Resistance 2-3-4 wires Fault and Power Bus MODEL D5072D-087 2 wires 2-3 wires poten. RTD / Resistance 2-3 wires In 1 Out 1 In 2...
-
Page 6: Function Diagram
Hazardous Area, and repeats, with isolation, the signal to drive a Safe Area load. Presence of supply power is displayed by a “POWER ON” green signaling LED. Burnout condition is signaled by red front panel LED for each channel. D5072D-087 module has double input and output channel, and can also be programmed to interface a single input and obtain dual output channel (duplicator) or configurable output channel (outputs can repeat the corresponding inputs).
