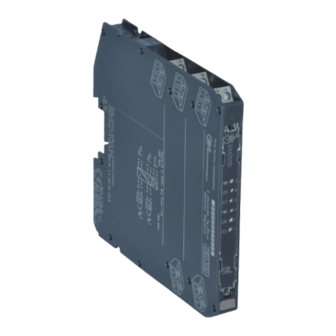

GMI D6030S Instruction Manual

Sil 3 switch/proximity detector repeater relay output, din rail,
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
D6030S - D6030D
INSTRUCTION MANUAL
SIL 3 Switch/Proximity Detector Repeater
Relay Output, DIN Rail,
Models D6030S, D6030D
D6030 - SIL 3 Switch/Proximity Detector Repeater Relay Output
G.M. International ISM0213-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D6030S and is the answer not in the manual?

Questions and answers

Related Manuals for GMI D6030S

Summary of Contents for GMI D6030S

  • Page 1 D6030S - D6030D INSTRUCTION MANUAL SIL 3 Switch/Proximity Detector Repeater Relay Output, DIN Rail, Models D6030S, D6030D D6030 - SIL 3 Switch/Proximity Detector Repeater Relay Output G.M. International ISM0213-2...

  • Page 2: Technical Data

    (according to IEC 61508:2010 Ed. 2) in safety related systems for high risk industries. The unit can be configured for switch or proximity detector (EN60947-5-6, NAMUR), NO or NC and for NE or ND SPST (D6030D) or SPDT (D6030S) relay output contact.

  • Page 3: Ordering Information

    Ordering Information Power Bus and DIN-Rail accessories: Model: D6030 Connector JDFT049 Cover and fix MCHP196 1 channel Terminal block male MOR017 Terminal block female MOR022 2 channels Front Panel and Features  SIL 3 according to IEC 61508:2010 Ed. 2 for Tproof = 2 / 10 years (≤10% / >10 % of total SIF), considering 100 mA max contact current. PFDavg (1 year) 4.92 E-05, SFF 90.06 %, with independent channel configuration.
  • Page 4 Power and Terminals 1-2 and 3-4 open. Fault Bus for line fault detection. Internal Dip switches programmable MODEL D5030S MODEL D6030S Supply 24 Vdc voltage free voltage free Proximity Contact Contact Out NO Contact (SIL 3)

  • Page 5: Operation

    For Model D6030D in addition to channel 1 connections above, connect terminal “9” for positive and “10” for negative on channel 2. Connect SPDT (D6030S) or SPST (D6030D) relay contacts checking the load rating to be within the contact maximum rating (4 A 250 Vac 1000 VA, 4 A 250 Vdc 120 W resistive load, limit current to 100 mA maximum for SIL 3 applications).

  • Page 6: Dip Switch Configuration

    Configuration D6030D used as double channel A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: dip-switch 6-7-8 must be set to “OFF” position. Dip switch factory settings.
  • Page 7 Configuration D6030D used as duplicator or fault output A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: Terminals 9-10 must be shorted to set module as Duplicator or Fault Out. Dip-switch 3 must be set to “OFF”...
  • Page 8 Configuration D6030S A configuration DIP switch is located on component side of pcb. This switch allows the configuration of input/output relationship, fault detection functions and operating mode. WARNING: Dip-switch 7-8 must be set to “OFF” position. Dip switch factory settings. All Switches are OFF Dip switch configuration 7-8 must be set to "OFF"...
  • Page 9 Configuration DIP Switch factory settings (valid for D6030S and D6030D) SW1 SW2 SW7 SW8 D6030D (used as double channel) Configuration Summary Table WARNING: dip-switch 6-7-8 must be set to “OFF” position. Channel Channel Line fault detection IN/OUT Operation Disabled NO-NE or NC-ND...
