- Page 1 D6072S-096 - D6072D-096 INSTRUCTION MANUAL SIL 2 Thermocouple/mV Repeater, DIN-Rail Models D6072S-096, D6072D-096 D6072-096 - SIL 2 Thermocouple/mV Repeater G.M. International ISM0437-6...

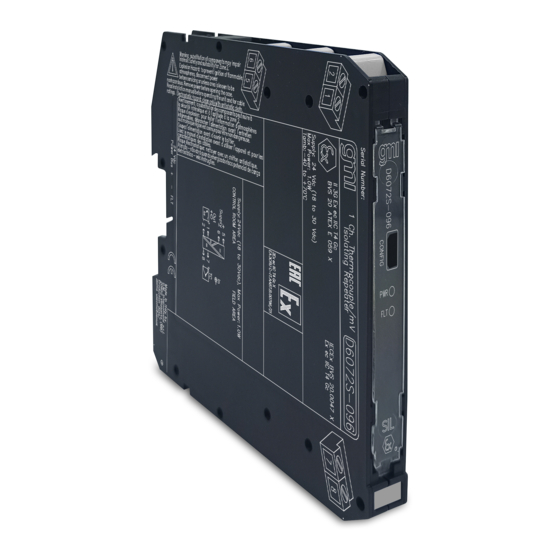

- Page 2 General Description: The single and dual channel Isolating Repeater D6072S-096 and D6072D-096 accepts a low level dc signal from millivolt or thermocouple sensor and repeats, with isolation, the signal to drive a load, suitable for applications requiring SIL 2 level (according to IEC 61508 ed.2) in safety related systems for high risk industries.
- Page 3 Ordering Information Power Bus and DIN-Rail accessories: -096 Model: D6072 Connector JDFT049 Cover and fix MCHP196 1 channel Terminal block male MOR017 Terminal block female MOR022 2 channels Front Panel and Features SIL 2 according to IEC 61508:2010 (Route 2H) with Tproof = 2 / 5 years (≤10% / >10 % of total SIF). SC 3: Systematic Capability SIL 3.
- Page 4 Supply 24 Vdc In 1 TC / mV mV Out 1-A (SIL 2) mV Out 1-B (SIL 2) Power and Fault Bus MODEL D6072S-096 Supply 24 Vdc In 1 TC / mV mV Out 1 (SIL 2) Power and Fault Bus D6072-096 - SIL 2 Thermocouple/mV Repeater G.M.
- Page 5 Warning D6072-096 series are isolated apparatus installed into standard EN/IEC60715 TH 35 DIN‑Rail located in Safe Area/Non Hazardous Locations or Zone 2, Group IIC T4 or Class I, Division 2, Group A, B, C, D, T4 Hazardous Area within the specified operating temperature limits Tamb ‑40 to +70 °C. D6072-096 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards (e.g.
- Page 6 Input specifications Input specifications: Min Span Accuracy Accuracy Range Maximum Range Temperature Influence Input Type Standards [°C (°F)] [°C (°F)] [°C (°F)] [°C (°F)] per °C typical [°C (°F)] 0 to 2500 0 to 2500 ≤ ±0.090 GOST 8.585 150 (270) ±0.7 (±1.3) (32 to 4532) (32 to 4532)
