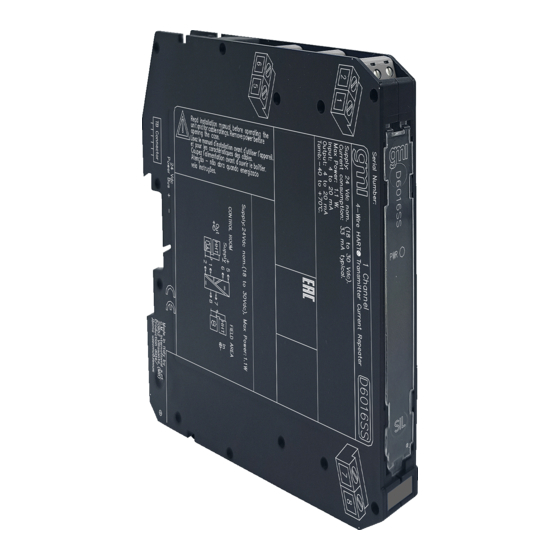

- Page 1 D6016SS - D6016SK - D6016DS - D6016DK INSTRUCTION MANUAL ® SIL 3 2-wire Active HART Tx Current Repeater DIN-Rail and Termination Board, Models D6016SS, D6016SK, D6016DS, D6016DK D6016 - SIL 3 4-wire HART® Transmitter Current Repeater G.M. International ISM0554-1...
-
Page 2: Technical Data
Current consumption: 33 mA (D6016SS), 20 mA (D6016SK), 57 mA (D6016DS), 31 mA (D6016DK) @ 24 Vdc with 20 mA output, typical. Power dissipation: 0.90 W (D6016SS), 1.00 W (D6016SK), 1.50 W (D6016DS), 1.80 W (D6016DK) @ 24 Vdc with 20 mA output on 250 Ω load and 24 Vdc output supply for sink models, typical. -
Page 3: Ordering Information
Ordering Information Power Bus and DIN-Rail accessories: Model: D6016 Bus Connector JDFT049 Bus Mounting Kit OPT5096 1 channel source output 1 channel sink output 2 channels source outputs 2 channels sink outputs Front Panel and Features 4-20 mA Input Signal Active. ... -
Page 4: Function Diagram
Function Diagram D6016S* D6016SS D6016SK External Sink I Source I Powered Tx Supply BUS Connector Connector D6016D* D6016DS D6016DK External Sink I Source I Powered Tx In 1 Out 1 External Source I Sink I Powered Tx In 2 Out 2... -
Page 5: Operation
Warning D6016 series must be installed, operated and maintained only by qualified personnel, in accordance to the relevant national/international installation standards. Failure to properly installation or use of the equipment may risk to damage the unit or severe personal injury. The unit cannot be repaired by the end user and must be returned to the manufacturer or his authorized representative.
