- Page 1 D1063S INSTRUCTION MANUAL Load Cell/Strain Gauge Bridge Isolating Repeater Din-Rail Model D1063S D1063 - Load Cell / Strain Gauge Bridge Isolating Repeater ISM0069-12...
-
Page 2: Technical Data

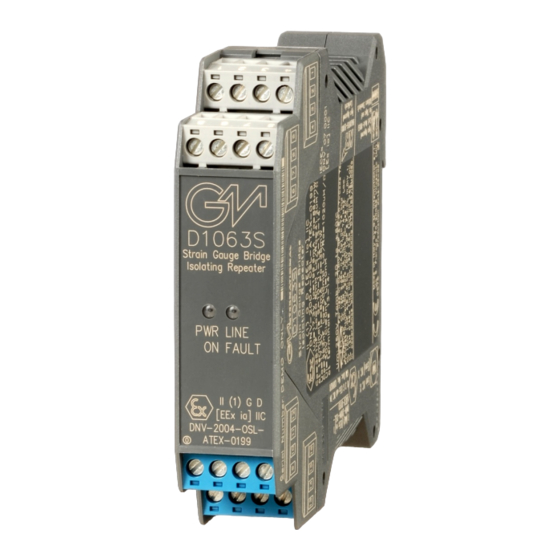

Characteristics General Description: The single channel DIN Rail Load Cell/Strain Gauge Bridge Isolating Repeater D1063S acts as a transparent galvanic isolated interface installed between a weighing indicator in Safe Area and a load cell (or group of load cells) in Hazardous Area; it appears at the terminals of the indicator as a single load cell equivalent to the one in the field. -
Page 3: Ordering Information
Ordering information Model: D1063S Power Bus enclosure Front Panel and Features • Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2. • Strain Gauge Bridge Transparent Repeater. • Up to four 350 Ω load cells in parallel or up to six 450 Ω load cells in parallel or up to twelve 1000 Ω load cells in parallel. - Page 4 Parameters Table In the system safety analysis, always check the Hazardous Area/Hazardous Locations devices to conform with the related system documentation, if the device is Intrinsically Safe check its suitability for the Hazardous Area/Hazardous Locations and gas group encountered and that its maximum allowable voltage, current, power (Ui/Vmax, Ii/Imax, Pi/Pi) are not exceeded by the safety parameters (Uo/Voc, Io/Isc, Po/Po) of the D1063 Associated Apparatus connected to it.
-
Page 5: Function Diagram
CLASS II, DIVISION 1, GROUPS E, F, G, CLASS III, DIVISION 1, GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4 CLASS I, ZONE 0, GROUP IIC MODEL D1063S Supply 24 Vdc In 1 Weighing Indicator... -
Page 6: Operation
Warning D1063 is an isolated Intrinsically Safe Associated Apparatus installed into standard EN/IEC60715 TH 35 DIN-Rail. located in Safe Area/ Non Hazardous Locations or Zone 2, Group IIC, Temperature Classification T4, Class I, Division 2, Groups A, B, C, D, Temperature Code T4 and Class I, Zone 2, Group IIC, IIB, IIA Temperature Code T4 Hazardous Area/Hazardous Locations (according to FM Class No. -
Page 7: Installation
Installation D1063 is a strain gauge bridge isolating repeater housed in a plastic enclosure suitable for installation on EN/IEC60715 TH 35 DIN-Rail. D1063 unit can be mounted with any orientation over the entire ambient temperature range, see section “Installation in Cabinet” and "Installation of Electronic Equipments in Cabinet" Instruction Manual D1000 series for detailed instructions.
