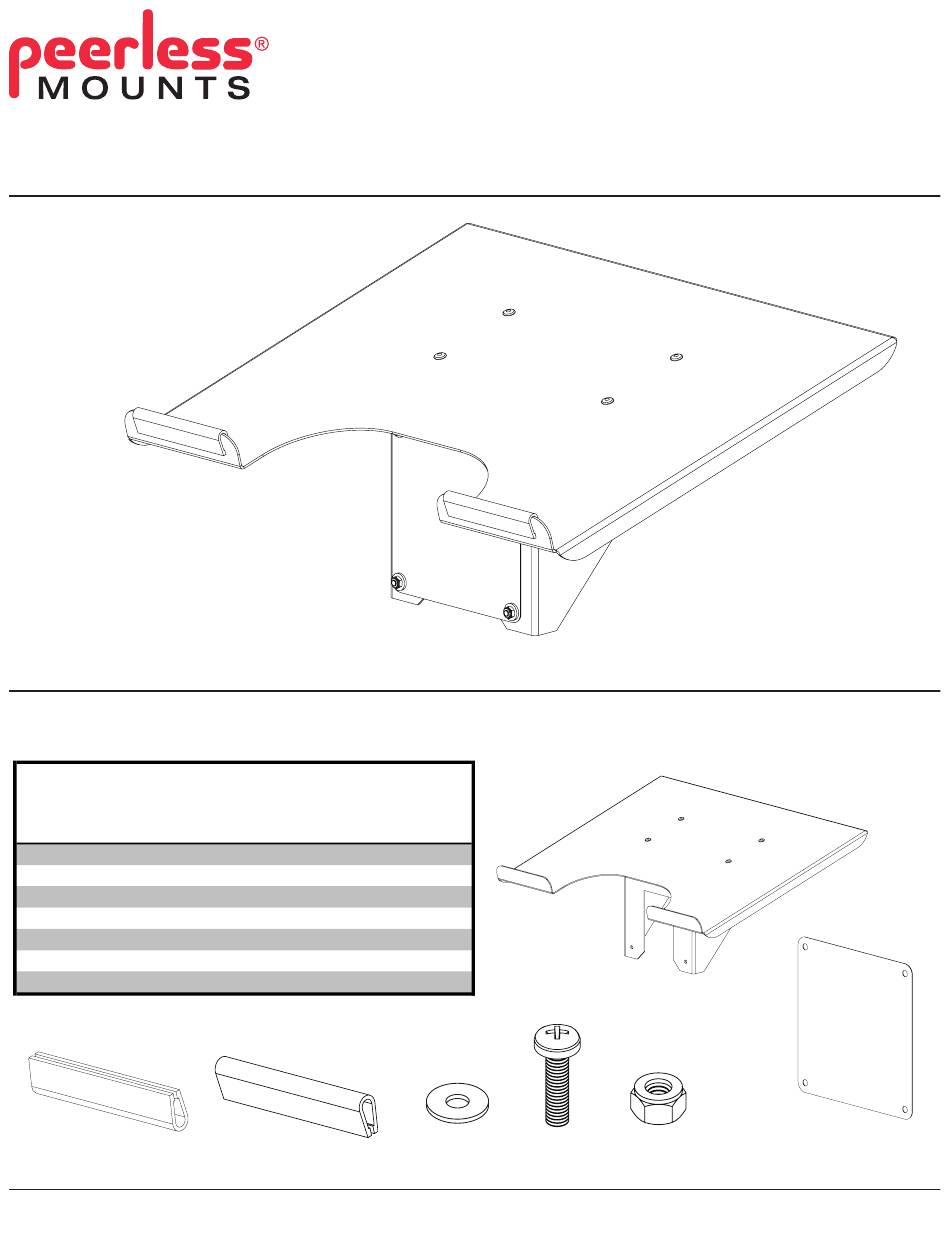

Installation and Assembly:
Laptop Shelf
Model: ACC328
Compatible with models (sold separately):
LCT-A1B1C, LCT-A1B1H, LCT-A1B4C, LCT-A1B4H
Note: Read entire instruction sheet before you start installation and assembly.
Before you begin, make sure all parts shown are included with your product.
Parts List
Description
A laptop shelf
B plastic cover
C plastic edging
D 3" rubber edging
e washer
F M4 x 16 mm screw
G M4 nylock nut
Parts may appear slightly different than illustrated.
C
For customer care call (800) 865-2112 or (708) 865-8870.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
Qty.
Part Number
1
021-1040
1
600-0120
1
600-0121
2
600-0122
8
540-1001
4
520-1119
4
530-1055
D
e
Max Load Capacity per Arm: 17.5 lb (8 kg)
A
F
G
ISSUED: 10-08-09 SHEET #: 120-9071-2 11-05-09
B
Advertisement
Table of Contents
Related Manuals for PEERLESS Mounts ACC328
Summary of Contents for PEERLESS Mounts ACC328
- Page 1 Installation and Assembly: Laptop Shelf Model: ACC328 Max Load Capacity per Arm: 17.5 lb (8 kg) Compatible with models (sold separately): LCT-A1B1C, LCT-A1B1H, LCT-A1B4C, LCT-A1B4H Note: Read entire instruction sheet before you start installation and assembly. Before you begin, make sure all parts shown are included with your product.
- Page 2 Attaching edging to Laptop Shelf Attach rubber edging (D) to laptop shelf (A) as shown in figure 1.1. Attach plastic edging (C) to laptop shelf as shown in figure 1.2. Note: Plastic edge (C) may already be attached. FIGURe 1.2 FIGURe 1.1 Attaching Laptop Shelf to Arm Plate Remove protective backing from plastic cover (B).
