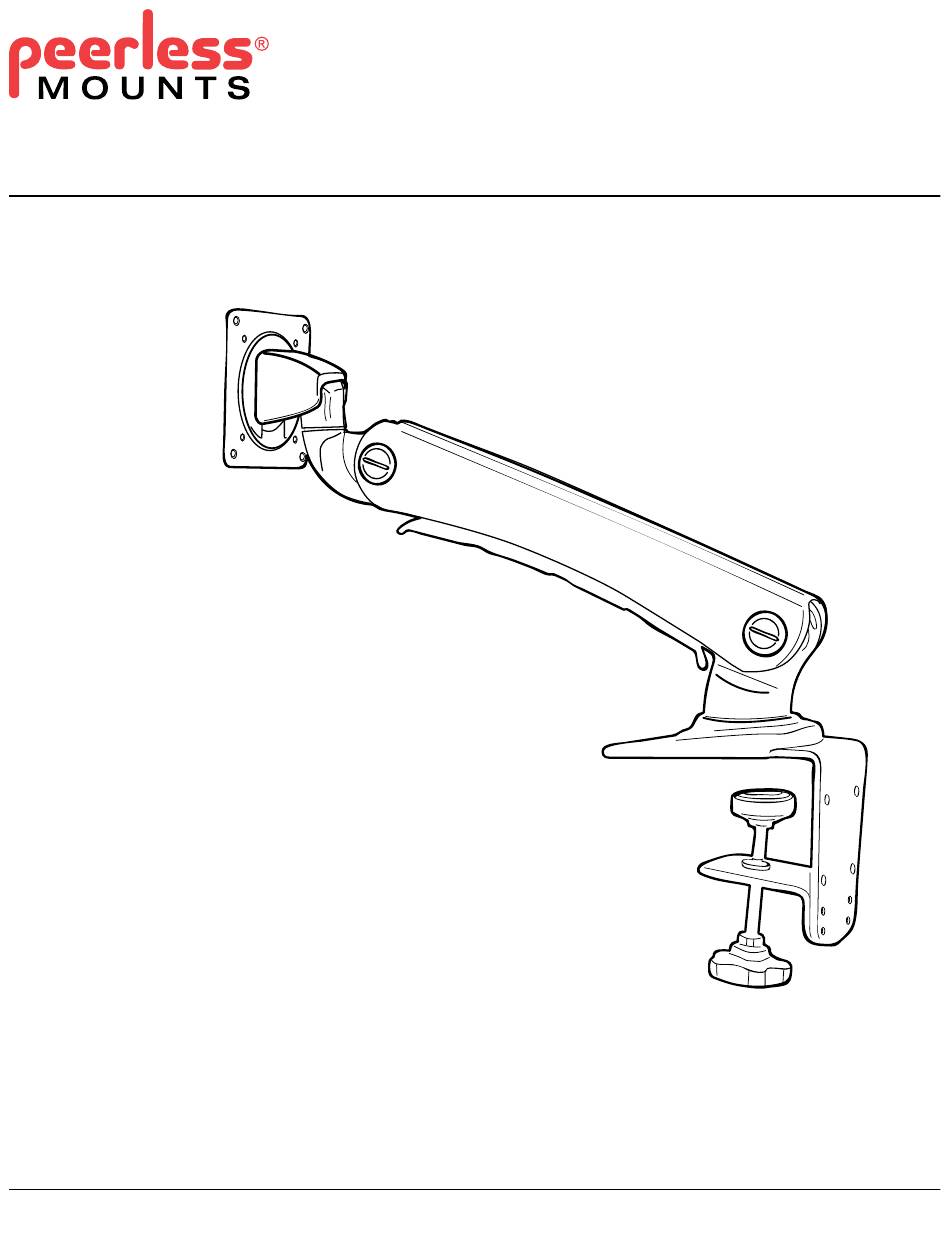

PEERLESS Mounts LCT-A1B2H Installation And Assembly Manual

Desktop one-link arm for 15" - 24" lcd monitors

Advertisement

Installation and Assembly:
Desktop One-Link Arm for 15" - 24" LCD monitors
Models: LCT-A1B2H, LCT-A1B2C
Max Load Capacity: 17.6 lb (8 kg)
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
ISSUED: 02-18-09 SHEET #: 090-9164-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCT-A1B2H and is the answer not in the manual?

Questions and answers

Summary of Contents for PEERLESS Mounts LCT-A1B2H

  • Page 1 Installation and Assembly: Desktop One-Link Arm for 15" - 24" LCD monitors Models: LCT-A1B2H, LCT-A1B2C Max Load Capacity: 17.6 lb (8 kg) 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com...
  • Page 2: Table Of Contents

    NOTe: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts List LCT-A1B2C LCT-A1B2H Description arm assembly small screen screw large screen screw 4 mm wrench bolt spring washer flat washer bottom washer 8 mm wrench Parts may appear slightly different than illustrated.
  • Page 4: Installation To Mounting Surface

    Clamp Installation Method Arm assembly (A) can be mounted to mounting Turn handle to tighten arm assembly (A) to surface with a thickness of 1/3" - 3.5" (10 - 89 mm). mounting surface until firmly attached. Insert the clamp onto mounting surface as shown below.
  • Page 5: Installation To Screen

    Installation to Screen Attach front of arm assembly (A) to back of screen with four screws (B or C) as shown in detail 2 using VESA 75 or VESA 100 mounting pattern as shown in figure 3.1. SCREEN B or C fig.
  • Page 6: Control Bolt Tension Adjustment

    Control Bolt Tension Adjustment NOTe: This product is factory set for a 19" (483 mm) monitor. When changing the size of the monitor, adjust the control bolt with M4 wrench as shown in figure 4.1. Adjust control bolt at top of arm assembly (A) with M4 wrench (D) as shown in figure 4.2. Bend lower arm to access control bolt.
