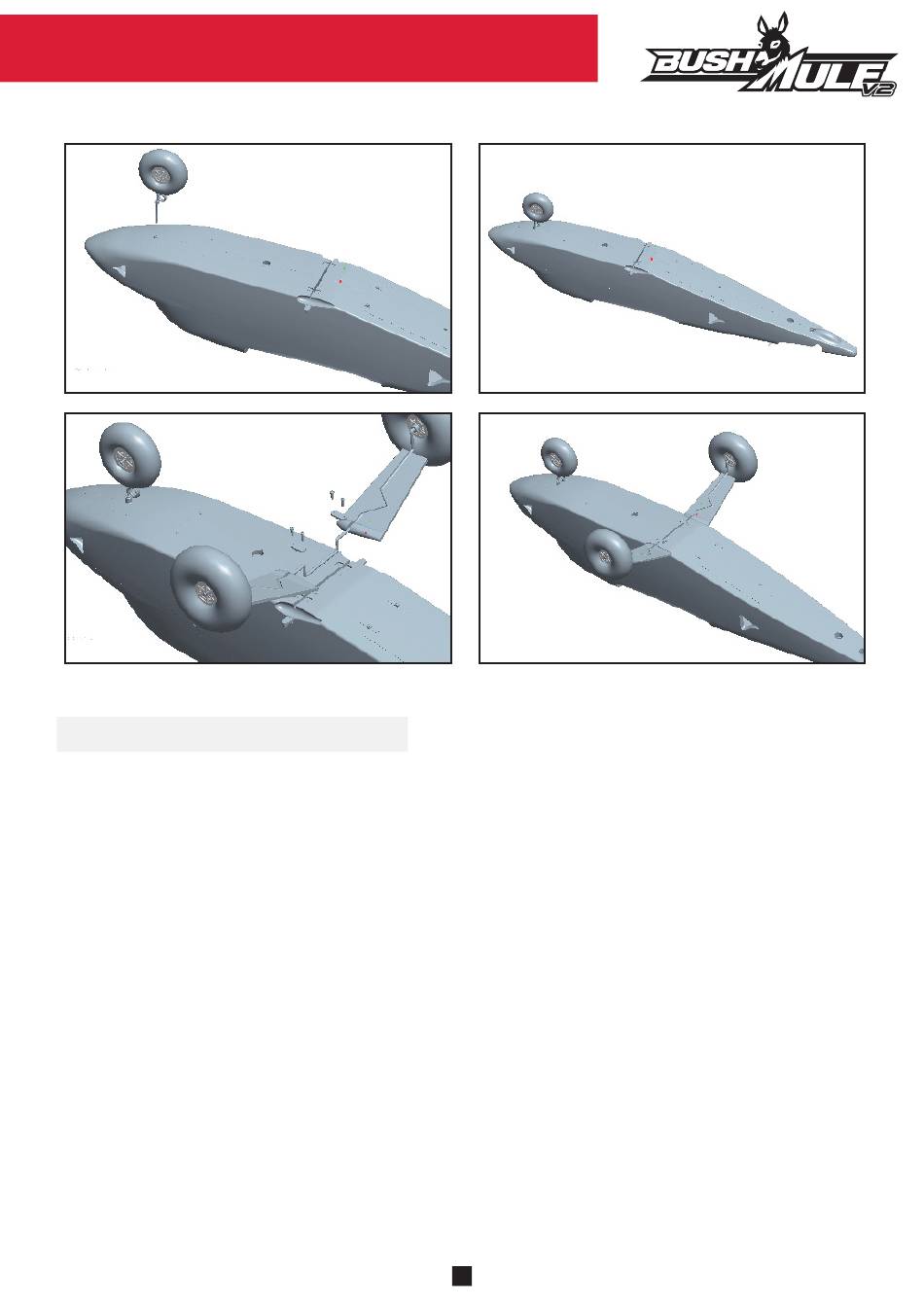

3. Installation of main wing

1. The main wing center piece houses the motors, ESC's, flaps, flap servos and main wiring
harness.
2. Please center all servos, and flex the ailerons on the outer wing panels.
3. Connect all control rods to the control horns with the supplied hardware to the flaps and ailerons.
4. Label the wiring harness and bundle them together to keep the wiring harness from getting
caught between the main center wing and fuselage.
5. Use the two M4 x 55mm main wing machine screws to secure the main center wing section to
the fuselage (with the V2 these will be screwing into brass threads).
6. Slide the two square machined aluminum wing spars into the main wing section, attach the servo
extension leads to power your lights and ailerons.
7. Once the outer wing panels are fully home on the center section, use the four 2mm x 15mm
selftapping screws to fasten the outer wing sections to the main center wing section.
8. Attach the wing strut support with the 4 supplied split pins. Please check the wing at this point to
make sure the dihedral angle is the same for both outer wing sections.
