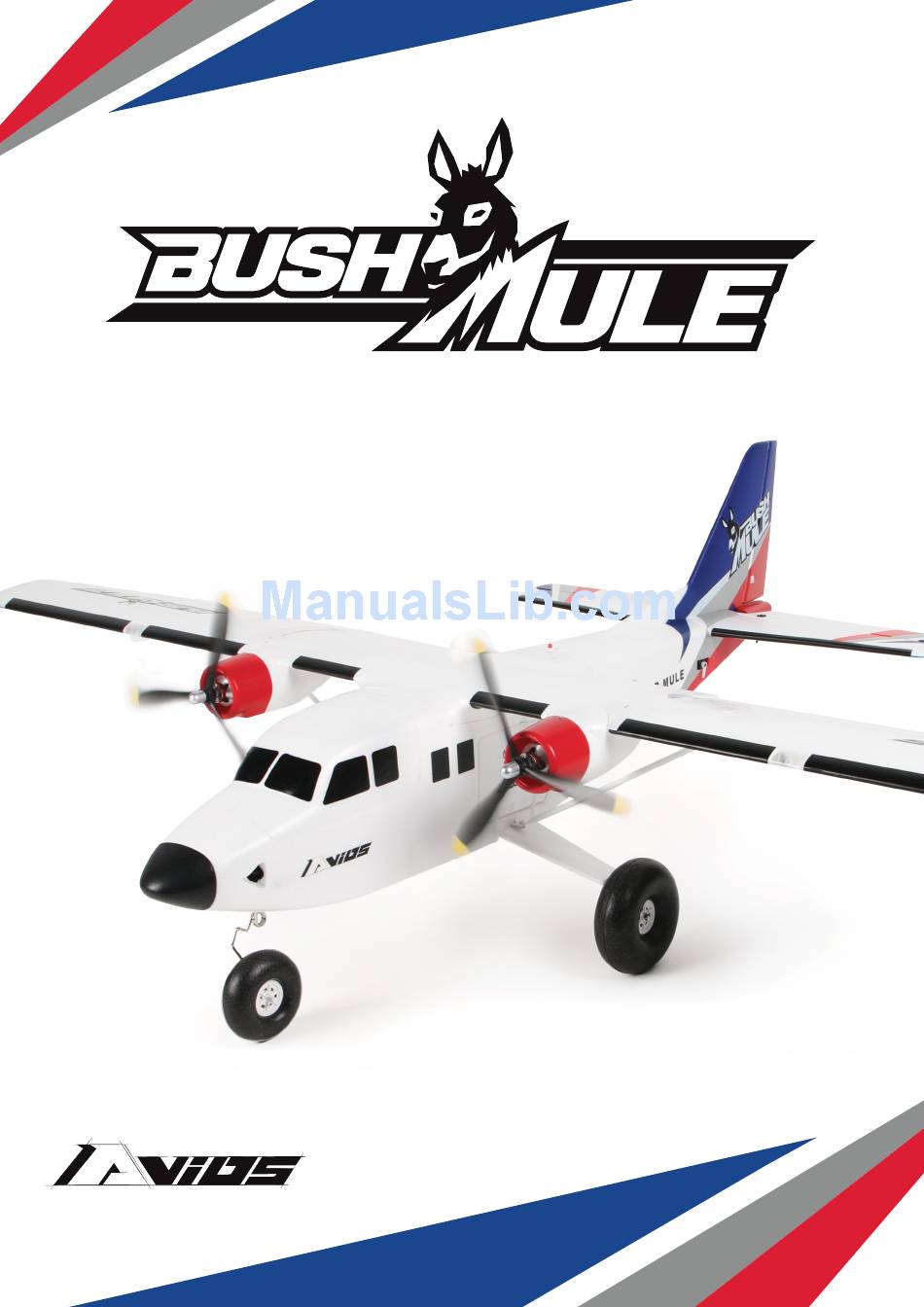

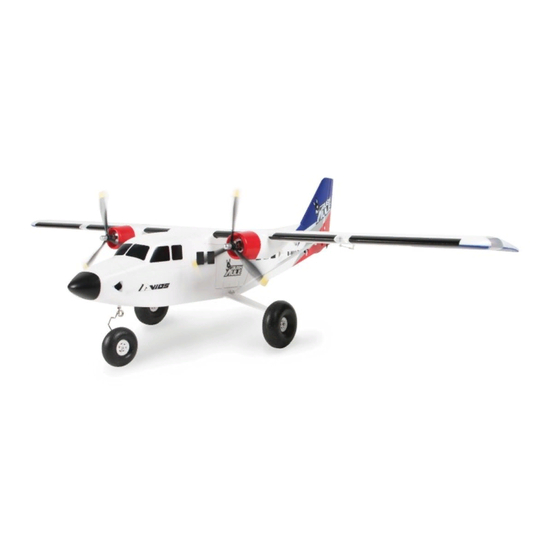

Page 1: Instruction Manual
INSTRUCTION MANUAL P N F COLORS: RED / BLUE GREEN / YELLOW... - Page 2 Read this instruction manual fully so as to become completely familiar with the features of this product before operating. Failure to operate this product correctly could result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product and is NOT a toy.
-
Page 3: Table Of Contents
7. HINTS..............................12 8. OPTIONAL SKIS..........................12 9. MODEL FLYING PRECAUTIONS..................... 13 10. PRE-FLIGHT CHECKS........................14 11. FLYING THE AVIOS BUSHMULE....................14 12. FROM AVIOS TO THE CUSTOMER....................15 SPARE PARTS LISTING ...................16 TROUBLE SHOOTING ..................17 CONTACT ......................17 NOTES .......................18... -
Page 4: Introduction
Powered by two powerful brushless outrunner motors with reversing ESCs combine to create a solid stable platform for all aspects of RC flight. The Avios team know you will have many happy hours in the air with this reliable yet stubborn steed. Enjoy your Avios Bushmule, Anytime… Anywhere…... -
Page 5: Content
Required to complete the Avios Bushmule: With all of the planes in the Avios range the Bushmule (in the plug and fly format) will require some additional electronic components to be ready for flight. Avios recommends the products linked to related items for optimum performance and great value. -
Page 6: Assembly
• The Avios team suggests that you apply either foam safe contact adhesive or a long set time 2-part epoxy on these tail surfaces. If you have no need to remove these parts or if you are going to push the Bushmule to its extreme flight envelope. -
Page 7: Installation Of Main Wing
3. Installation of main wing • The main wing centre piece houses the motors, ESC’s, flaps, flap servos and main wiring harness. • Please centre all servos, flex the ailerons on the outer wing panels. • Connect all control rods to the cont rol horns with the supplied hardware to the flaps and Ailerons. •... -
Page 9: Electronic Avionics Set Up
Adjust mechanically if they are not equally centered. 5. Control Set-up • The Avios Bushmule handles extremely well, is very manoeuvrable through all ranges of the flight envelope. In saying this your Avios Bushmule needs setting up before your initial maiden flight. - Page 10 Basic assembly of your Bushmule is complete. Now perform a final check on all screws, bolts and components, ensuring all are secure and firmly in place.
-
Page 11: Control Throws
ileron Elevator Rudder Roll left Aileron (Roll) Roll right Pitch up Elevator (Pitch) Pitch down Yaw left Rudder (Yaw) Yaw right Control throws: 20 -40 mm 15-30 mm 15-30 mm 20 -40 mm Elevator Rudder 50-60 mm ~ Aileron 10 - 15 mm 10 - 15 mm * Elevator ‘low rates’... -
Page 12: Centre Of Gravity
The centre of gravity or CoG is the most important measurement for a successful and comfortable flight. The suggested CoG for the Avios Bushmule is 50-60mm from the leading edge of the wing.With your flight battery installed balance the Bushmule will fly perfectly at the required measurement. -
Page 13: Hints
Balancing the 3 bladed propellers always helps to keep vibration to a minimum and help with efficiency. With your Avios Bushmule fully built and ready for flight now is a perfect time to go over your model once more to make sure nothing is over looked, all screws, nuts and bolts are secure and your flight control surfaces are all correct and secure. -
Page 14: Model Flying Precautions
9. MODEL FLYING PRECAUTIONS • Select your flight area carefully. Always choose an open space that is unobstructed from trees and buildings and away from crowed areas. Avoid flying in areas with roads, electric/telephone poles/wires and water nearby or within close proximity to full size controlled airspace. •... -
Page 15: Pre-Flight Checks
RC pilot to help and confirm these final checks and test fly the model for you. 11. FLYING THE BUSHMULE: • Your Avios Bushmule is one of the most versatile, stable and predictable RC aircraft to fly. A fantas- tic introduction to the world of twin motored RC flying. -
Page 16: From Avios To The Customer
12. From Avios to the customer • Firstly, thank you for purchasing the Avios Bushmule and welcome to the adventure of all terrain flight. Anytime, Anywhere. • Whilst not essential to flying, the use of coordinated rudder in flight will add to the general handling through to slow speed manoeuvres, improve your flying skills and let you explore the full potential of this fine model. -
Page 17: Spare Parts Listing
SPARE PARTS LISTING (RED / BLUE) Fuselage Set w/Stickers Outer Wing Set Wing center section: Vertical Tail w/Stickers and LEDs (Red/Blue) w/Stickers and LEDs Part No. (Red/Blue) Part No. (Red/Blue): 9310000309-0 Part No. 9310000320-0 Part No. 9310000322-0 9310000321-0 Horizontal Tail w/Stickers Canopy Hatch w/Applied FPV Canopy Hatch: Cowls (red) (Pair) - Page 18 SPARE PARTS LISTING (Yellow / Grey) Fuselage Set w/Stickers Outer Wing Set w/Stickers Wing center section: Vertical Tail w/Stickers and LEDs (Yellow/Grey): and LEDs (Yellow/Grey): Part No. (Yellow/Grey) Part No. Part No. 9310000309-0 Part No. 9310000326-0 9310000327-0 9310000328-0 Horizontal Tail w/Stickers Canopy Hatch w/Applied FPV Canopy Hatch: Cowls (Yellow) (Pair):...
-
Page 19: Trouble Shooting
• hobbyking.com Or see our Facebook page at: • Facebook.com/hobbyking And don’t forget you can see the product video for this model and the entire Avios range at: • youtube.com/hobbykinglive For your next Avios purchase be sure to visit: •... - Page 20 MADE IN CHINA...
