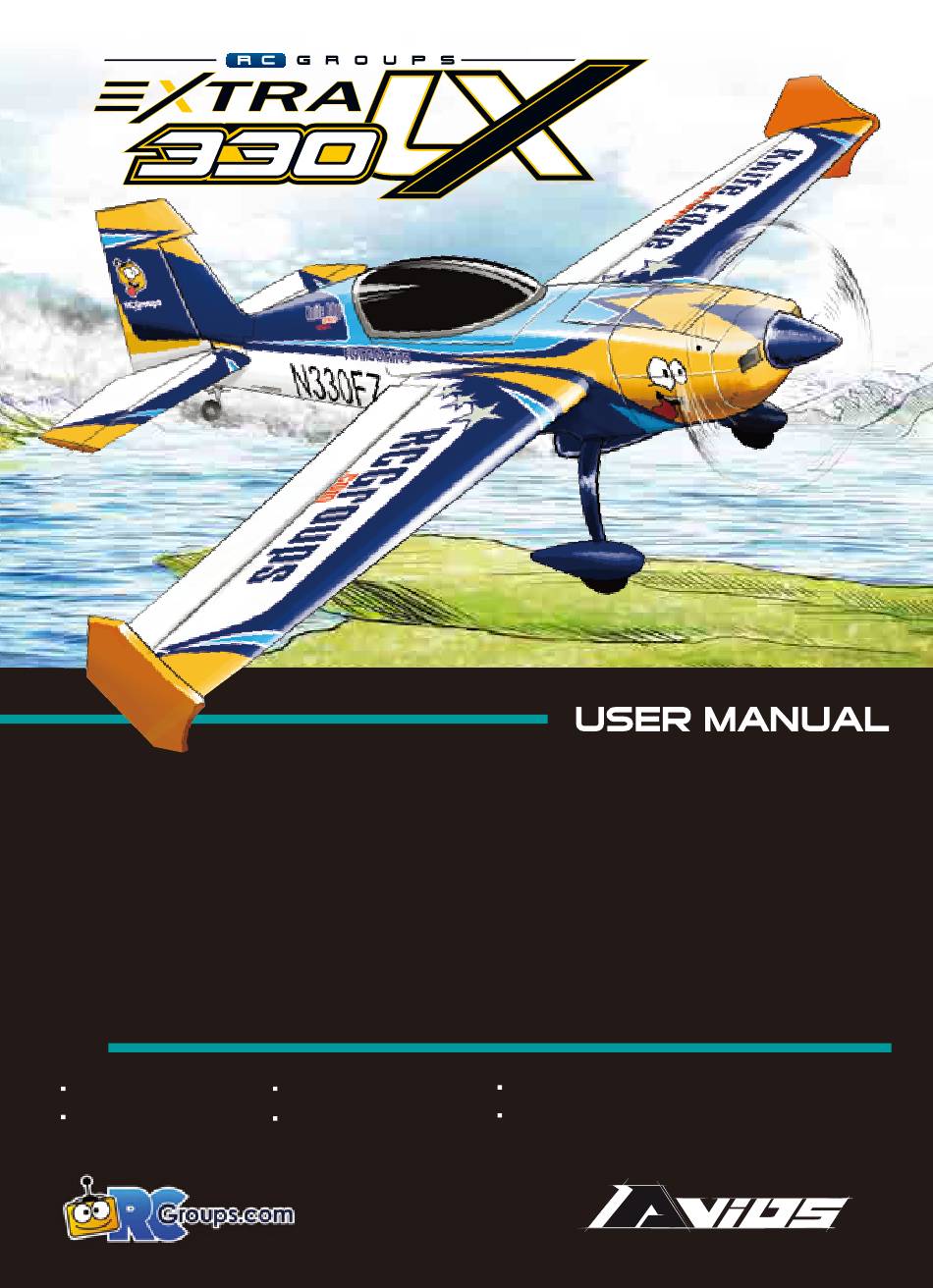

- Page 1 SPEC Wingspan: 1420mm Weight: 1950g Motor: 4260 600Kv Brushless outrunner Length: 1350mm ESC: Aerostar 60A Battery: 2700~4000mah 4S LiPo Battery...
- Page 2 AVIOS AVIOS AVIOS Hobby King...
- Page 3 Specifications...
- Page 4 BOX CONTENTS ① ③ ② ④ ⑤ ⑥ ⑩ ⑦ ⑧ ⑨ 1.Mainwing 7.Tail wheel assembly 2. Fuselage 8.Landing gear 3. Hprozontal tail 9.Spinner 4.Vertical tail 10.Propeller 5.Wing stab 6.Wing spar tube...
- Page 5 Exra330 LX ASSEMBLY P A 2. 5 x8 mm 2 p cs PM 3x15mm 3pc s KM 2x10mm 2pcs PM 4x16mm 4pcs PA 2x8mm 4pcs PA 2x8mm 1pcs...
-
Page 6: Exhaust Stacks
Assembly P A 2x 12 mm 2pcs Exhaust stacks PW A 2 x 8m m 2pcs... -
Page 7: Control Horn And Servo Arm Settings
Exra330 LX Extra330 Control Horn and Servo Arm Settings... - Page 8 CG 115-120mm when measured from the leading edge of the wing at the root. Measure with the model inverted...
- Page 9 Exra330 LX...
- Page 10 Control Directions Tests...
-
Page 11: Specifications
Exra330 LX Specifications 1420mm 14x7/Propeller Brushless Outrunner Motor,4S 4240 KV600 60A Aerostar Brushless ESC(2-6S) Servos:(metal shell and digtial servos)25g*4PCS Battery:4S-2700mAh/-4000 mAh Radio System:2.4Ghz 4Ch Transmitter and Receiver 1950g Accessories Main wing Spinner Fuselage Wing spar tube Wing stab Vertical tail... -
Page 12: Troubleshooting
Trouble Shooting... - Page 13 Exra330 LX Model Flying Precautions Pre-Flight Checks...
