For devices of the series IF-57xx, the flexible patch cable must run through an empty
tube to the installation site when flush-mounted to ensure that the line length can be flexibly adjusted!

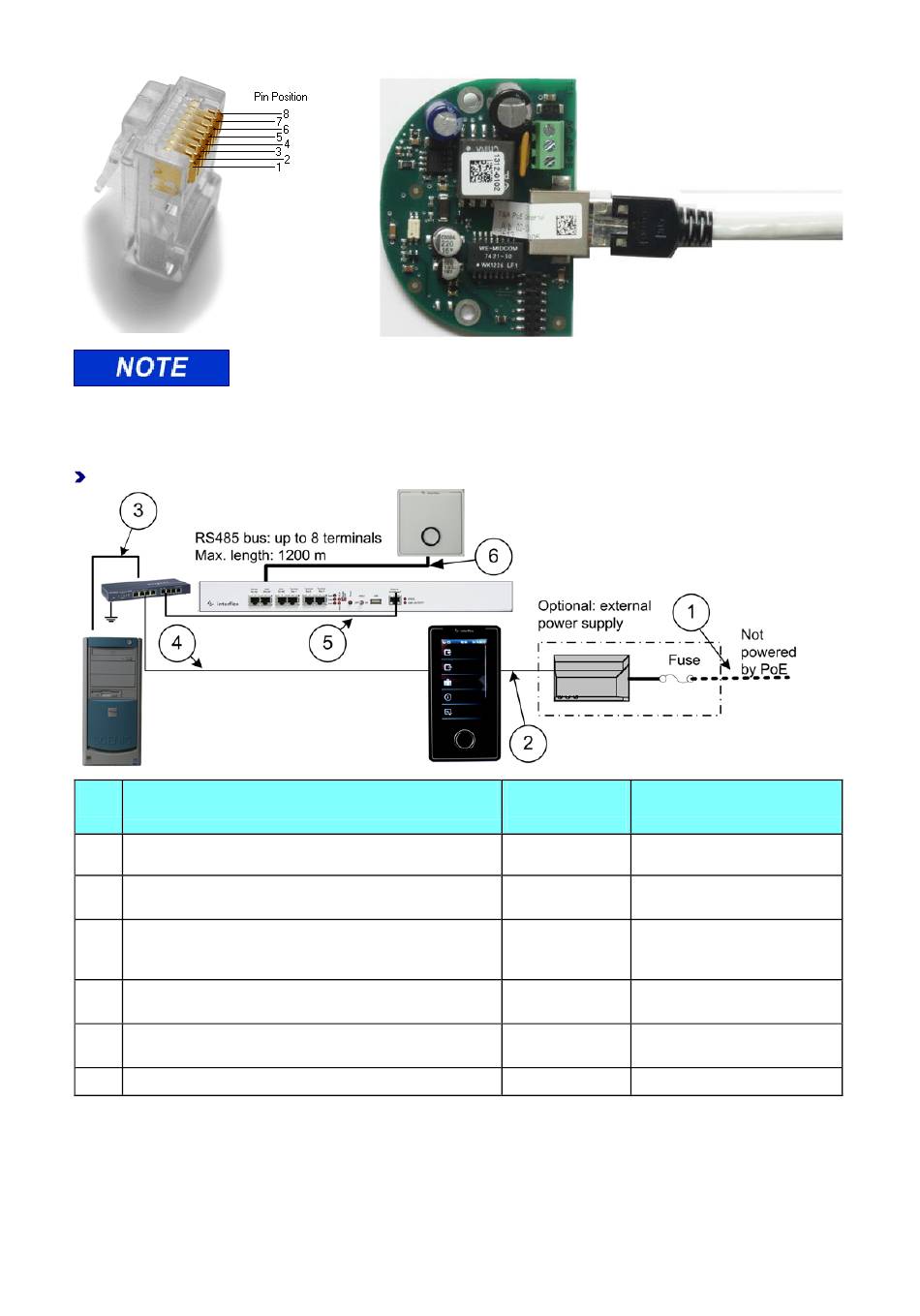

9.3 Cable Types
Only use the cable types listed below.
No.
1
230 VAC power supply to optional adapter
2
Low-voltage cable for supplying power to IF-57xx
3
Ethernet/patch cable to hub/switch
4
Ethernet/patch cable with/without PoE hub/switch to
IF-57xx
5
Ethernet/patch cable from hub/switch to controller
IF-4070
6
RS485 BUS
Interflex Datensysteme GmbH
Permissible
Recommended Cable Type
Length
3 x NYM 1.5 mm²
J-Y(ST)Y 4 x 2 x 0.6 mm² or
Flex JZ 3 x 0.75 mm²
100 m
Ethernet twisted pair cable
(Cat5)
100 m
Ethernet twisted pair cable
(Cat5)
100 m
Ethernet twisted pair cable
Flexible patch cable (Cat5)
1,200 m
J-Y(ST)Y 4x2x 0.6 mm²
