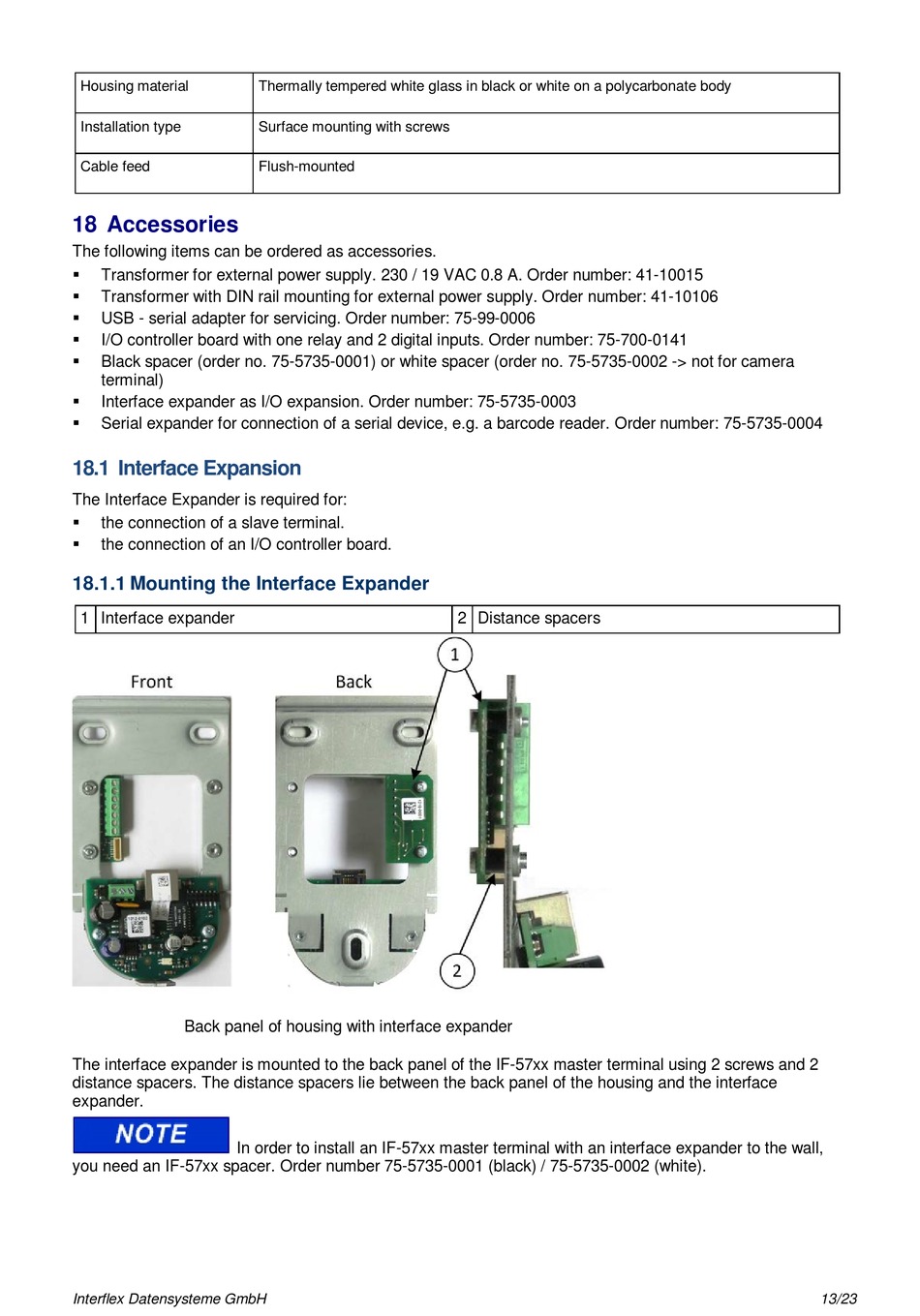

Interflex IF-57 Series Manual page 13

Housing material
Installation type
Cable feed
18 Accessories
The following items can be ordered as accessories.
§
Transformer for external power supply. 230 / 19 VAC 0.8 A. Order number: 41-10015
§
Transformer with DIN rail mounting for external power supply. Order number: 41-10106
§
USB - serial adapter for servicing. Order number: 75-99-0006
§
I/O controller board with one relay and 2 digital inputs. Order number: 75-700-0141
§
Black spacer (order no. 75-5735-0001) or white spacer (order no. 75-5735-0002 -> not for camera
terminal)
§
Interface expander as I/O expansion. Order number: 75-5735-0003
§
Serial expander for connection of a serial device, e.g. a barcode reader. Order number: 75-5735-0004
18.1 Interface Expansion
The Interface Expander is required for:
§
the connection of a slave terminal.
§
the connection of an I/O controller board.
18.1.1 Mounting the Interface Expander
1 Interface expander
Back panel of housing with interface expander
The interface expander is mounted to the back panel of the IF-57xx master terminal using 2 screws and 2
distance spacers. The distance spacers lie between the back panel of the housing and the interface
expander.
In order to install an IF-57xx master terminal with an interface expander to the wall,
you need an IF-57xx spacer. Order number 75-5735-0001 (black) / 75-5735-0002 (white).
Interflex Datensysteme GmbH
Thermally tempered white glass in black or white on a polycarbonate body
Surface mounting with screws
Flush-mounted
2 Distance spacers
