- Page 3 The information contained in this document is accurate and reliable to the best of our knowledge. Nevertheless, mistakes cannot be excluded. Interflex Datensysteme GmbH & Co. KG assumes no responsibility for the information in this manual, which is subject to change without prior notice.
-
Page 5: Table Of Contents
Contents Contents General Information Scope of delivery........................1 Target group ......................... 1 Symbols used in this document ................... 1 Intended use ........................1 General safety instructions ....................2 All specifications are subject to change without notice ............2 List of abbreviations ......................2 System Overview Cable lengths and cable types ..................... - Page 6 Contents Disposal...
-
Page 7: General Information

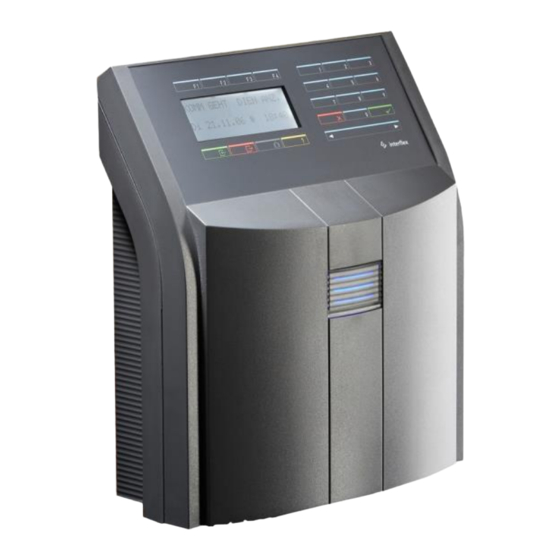

1 General Information 1.1 Scope of delivery The following is included in the package: ▪ Master terminal with ordered reading technology and options. ▪ Accessory bag containing: ▪ Screws ▪ Dowels ▪ Mortise lock Please check the completeness and condition of the shipment upon receipt. Report any damages caused during transport immediately. -
Page 8: General Safety Instructions
General Information 1.5 General safety instructions For the safety of you and others, please observe the following safety instructions: Danger to life due to electric shock People can be seriously hurt or killed through physical contact with live parts (e.g. 230 V~). Make sure that you cannot touch live lines during installation. -
Page 9: System Overview
In this operating mode, data is continuously exchanged between the IF-4735 device and the parent host system (e.g. the IF-60x0 system). In the process, the host system causes the status of the IF-4735 device to be cyclically queried. The IF-4735 device acknowledges the query either by sending a “sign of life” or... -
Page 10: Encryption Of Data Transfer
IF-4735 device. Offline mode If there is no transfer of data between the IF-4735 device and the parent host system (e.g. the IF-60x0 system), the device will automatically switch to offline mode. There, it records all bookings and events and autonomously makes decisions based on configured conditions. -
Page 11: Mounting The Device
Mounting the Device 3 Mounting the Device Housing back panel Wall 1a 3 drilled holes for screw mounting Installed cable (in-wall) 1b Cutout for installed cables (in-wall) Cable feed for surface-mounted installation Installation Site The device is designed for fixed installation in dry rooms. Operation in humid environments is not permitted. -
Page 12: Connecting The Device
Connecting the Device 4 Connecting the Device 4.1 Risk of electric shock Danger to life due to electric shock People can be seriously hurt or killed through physical contact with live parts (e.g. 230 V~). Make sure that you cannot touch live lines during installation. -
Page 13: Voltage Supply
Connecting the Device 4.3 Voltage supply Optional: 12 V battery for emergency power Screw terminal strip 1 (10-pin) supply (order no.: 75-1735-0002) Optional: 230 V AC power board Power supply unit for DIN rail mounting or pluggable power supply Low-voltage cable 230 VAC Power cable 250 mA slow-blow fuse... -
Page 14: Power Supply Setting
Connecting the Device 4.4 Power supply setting The setting power supply via power supply unit (A) is preset by default. Insert the jumper according to the type of power supply you have selected. ▪ Power supply via power supply unit: Jumper on pin 1 and pin 2 ▪... -
Page 15: Interfaces
Interfaces 5 Interfaces 5.1 Bus data cables with slave terminals Screw terminal strip 1 Stub line to RS485 data cable (max. length: 100 m) RS485 data cable (max. length: Slave terminal (up to 7 slave terminals) 1200 m) Connect the RS485 data cables from the slave terminals to screw terminal strip 1. 5.2 Additional RS232 interface Connect devices with an RS232 interface as follows. -
Page 16: Connecting A Barcode Reader
Interfaces 5.3 Connecting a barcode reader At the factory, the ribbon cable (A) is routed along the bottom of the device (B) and fastened to the housing via a 9-pin socket. Thus, the barcode reader with its 9-pin plug can be plugged in directly on the bottom of the housing. -
Page 17: Configuring The Device
Establish an SSH connection via the factory-set IP address. After the connection is established, you can log in. First, you will be asked to enter the system password you received from your Interflex system consultant. Then, the system prompts you to change the password. - Page 18 Configuring the Device Recommendation: Choose an encrypted password. Please keep the new password in a safe place. After you have created a new system password, you can access the controller commands. 6.2.2 Changing a password Change the password with the command passwd. Recommendation: Choose an encrypted password and keep it in a safe place.
- Page 19 Configuring the Device 6.2.4 Checking and setting network parameters The command netpar shows you the current network parameters, which you can then change. The following options are available: login as: root root@IF-xxxx:~ netpar displays or changes network parameters usage: netpar -i show network settings netpar -x change IP addr., gateway, netmask and port no...
- Page 20 Configuring the Device Explanation for devices of the IF-1xxx series Term Description host baud rate ▪ 1 = 1,200 ▪ 2 = 9,600 ▪ 3 = 19,200 Token ring baud rate Baud rate, TCP/IP network: ▪ 0 = 4 MB ▪...
-
Page 21: How To Apply The Configuration
Configuring the Device Column List of I/O controller boards of the slave terminals. The characters - + mean: ▪ - + = 1st First I/O controller board for door control is ready for operation. ▪ + - = 2nd Second I/O controller board (I/O extension board) is ready for operation. ▪... -
Page 22: Updating Software
Configuring the Device 6.5 Updating software In order to update the software, the PuTTY program package must be installed on the service PC. Updates are performed by means of batch files and the Windows input prompt cmd.exe. The update files should be located in the same folder as the batch files, to avoid error messages. The following batch files are available: File name Purpose... -
Page 23: Performing Device License Upgrade
The functional scope of a device is dependent upon the purchased license. You can expand (upgrade) this license. Example: Upgrade from an IF-4070 controller with 8 terminals to a controller with 16 terminals. After you have ordered the upgrade, Interflex will send you: ▪ The batch file tclicence.bat The license file named SL-4070-0306-711229.xml. -
Page 24: Technical Specifications
Technical Specifications 8 Technical Specifications Electrical Data Nominal voltage 18 to 24 VAC/DC Voltage supply (optional) 230 V AC; +/- 10 %, 50 Hz Power consumption max. 12 VA Power supply via Ethernet (PoE) PoE device IEE 802.3 of power class 3 (up to 13 W). Internal emergency power supply 12 V battery (optional) -
Page 25: Eu Declaration Of Conformity
Upon request and for a charge no more than your cost of physically performing source distribution, Interflex offers to provide you with a medium customarily used for software interchange containing a complete machine-readable copy of the source code of the programs used. This offer is valid for a period of three years, starting on the date the product is purchased.
