LI-95-10307_V2016-10-11 IF-57xx

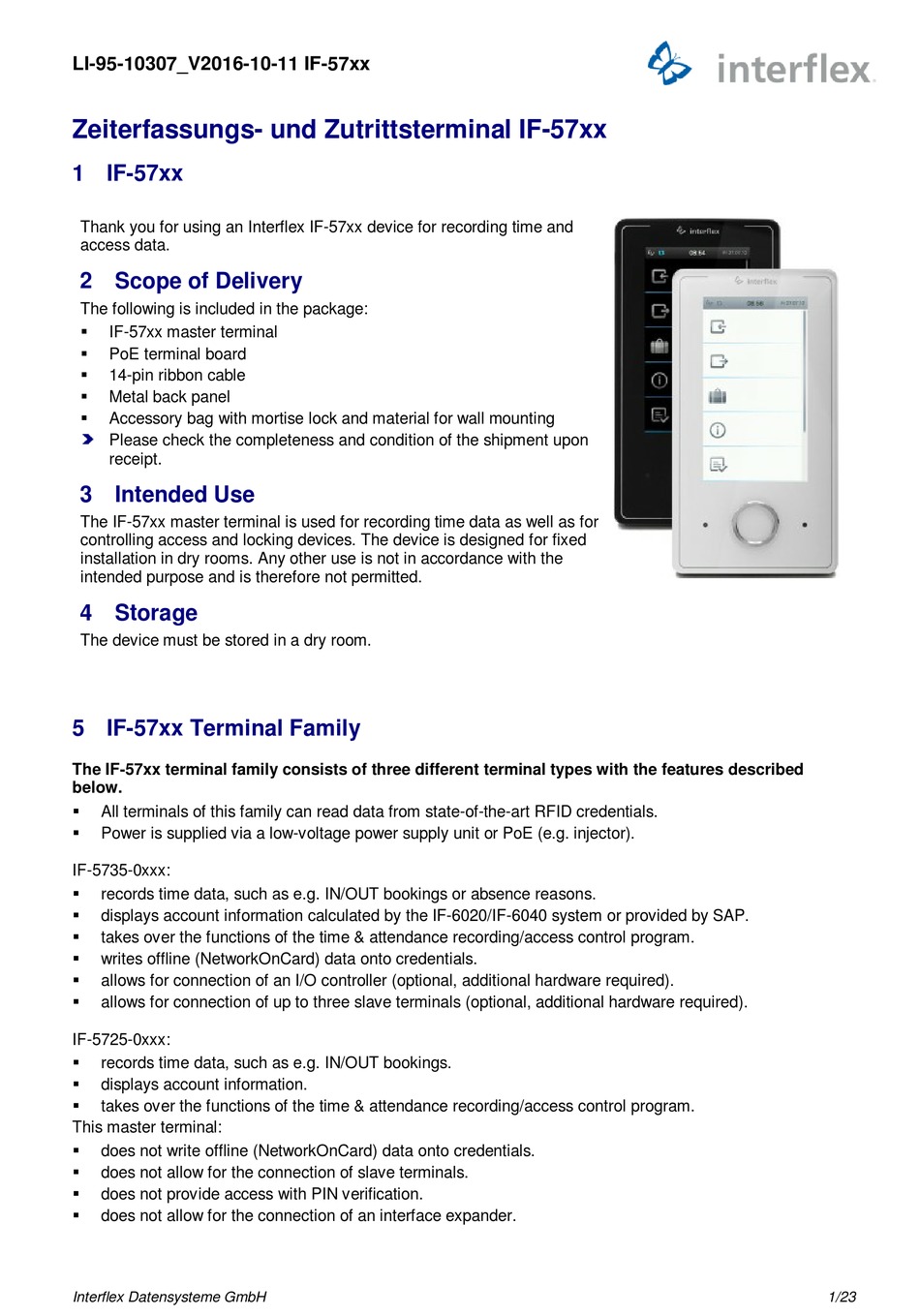

Zeiterfassungs- und Zutrittsterminal IF-57xx
1 IF-57xx
Thank you for using an Interflex IF-57xx device for recording time and
access data.
2 Scope of Delivery
The following is included in the package:
§
IF-57xx master terminal
§
PoE terminal board
§
14-pin ribbon cable
§
Metal back panel
§
Accessory bag with mortise lock and material for wall mounting
Please check the completeness and condition of the shipment upon
receipt.
3 Intended Use
The IF-57xx master terminal is used for recording time data as well as for
controlling access and locking devices. The device is designed for fixed
installation in dry rooms. Any other use is not in accordance with the
intended purpose and is therefore not permitted.
4 Storage
The device must be stored in a dry room.
5 IF-57xx Terminal Family
The IF-57xx terminal family consists of three different terminal types with the features described
below.
§
All terminals of this family can read data from state-of-the-art RFID credentials.
§
Power is supplied via a low-voltage power supply unit or PoE (e.g. injector).
IF-5735-0xxx:
§
records time data, such as e.g. IN/OUT bookings or absence reasons.
§
displays account information calculated by the IF-6020/IF-6040 system or provided by SAP.
§
takes over the functions of the time & attendance recording/access control program.
§
writes offline (NetworkOnCard) data onto credentials.
§
allows for connection of an I/O controller (optional, additional hardware required).
§
allows for connection of up to three slave terminals (optional, additional hardware required).
IF-5725-0xxx:
§
records time data, such as e.g. IN/OUT bookings.
§
displays account information.
§
takes over the functions of the time & attendance recording/access control program.
This master terminal:
§
does not write offline (NetworkOnCard) data onto credentials.
§
does not allow for the connection of slave terminals.
§
does not provide access with PIN verification.
§
does not allow for the connection of an interface expander.
Interflex Datensysteme GmbH
1/23
