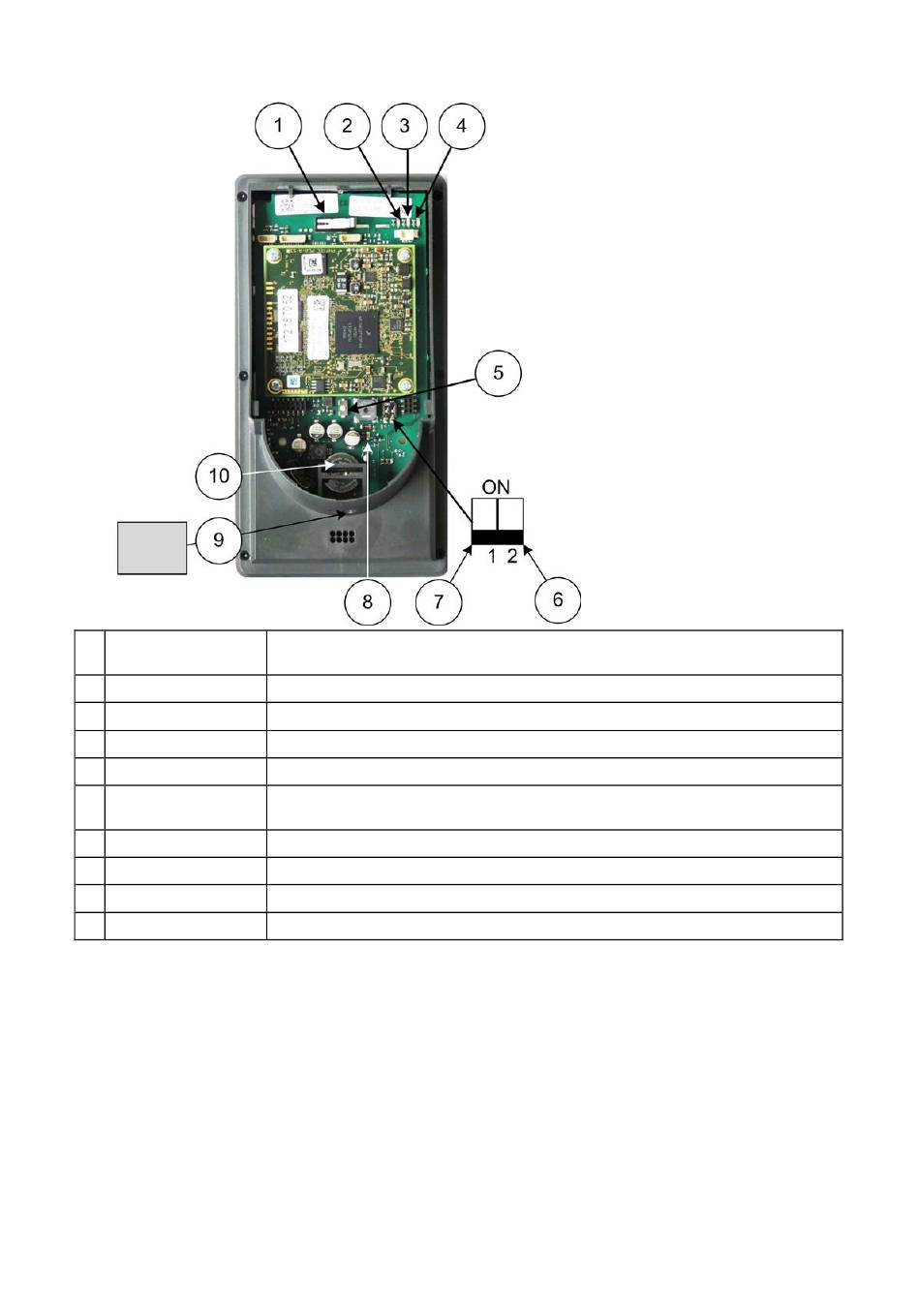

12 LEDs and Switches

1 Anti-tamper switch
2 Bus LED
3 Speed LED
4 Net LED
5 Reset button
6 SW switch 2
7 Cold boot switch 1
8 Power LED
9 Adhesive tape
10 Battery
Interflex Datensysteme GmbH
The anti-tamper switch triggers an alarm when the housing is opened. To suppress this
alarm, it must be turned off by a parameter setting in the time recording program.
Indicates data traffic with one slave terminal.
LED lights up only with 100Mb network connection.
LED lights up as soon as the terminal is detected by the network.
The Reset button ends active processes and triggers a reboot (restart).
The SW switch is used to set the standard IP address 172.18.70.52 and temporarily
store the specified IP address.
The cold boot switch is used to delete stored data and set default parameters.
Lights up when operating voltage is switched on.
The adhesive tape is applied over the mortise lock to prevent electrostatic discharges.
Battery for clock
