95-10430 IF-57xx and IF-5835 Master Terminals 2020-05-19

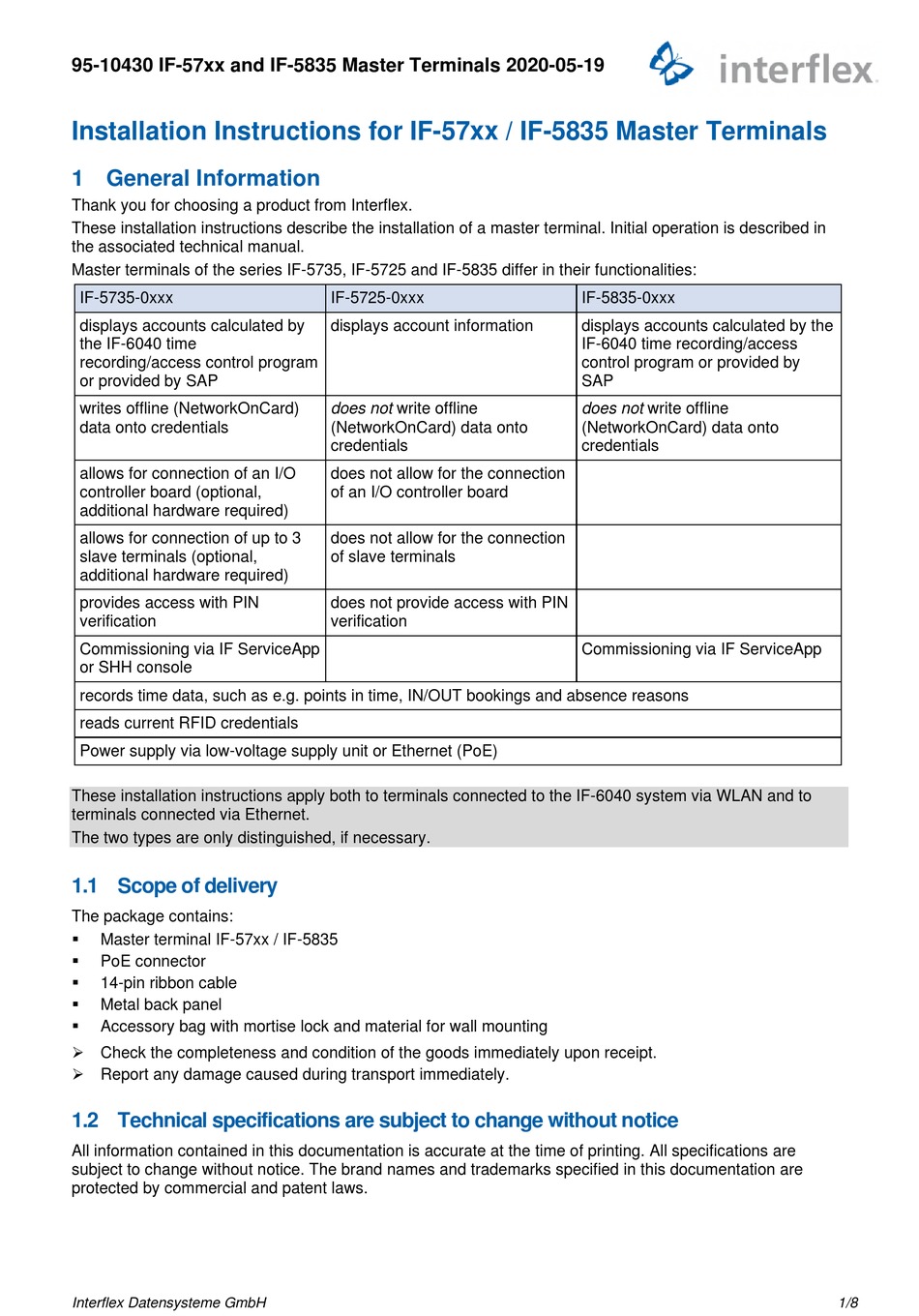

Installation Instructions for IF-57xx / IF-5835 Master Terminals
1 General Information
Thank you for choosing a product from Interflex.
These installation instructions describe the installation of a master terminal. Initial operation is described in
the associated technical manual.
Master terminals of the series IF-5735, IF-5725 and IF-5835 differ in their functionalities:
IF-5735-0xxx
displays accounts calculated by
the IF-6040 time
recording/access control program
or provided by SAP
writes offline (NetworkOnCard)
data onto credentials
allows for connection of an I/O
controller board (optional,
additional hardware required)
allows for connection of up to 3
slave terminals (optional,
additional hardware required)
provides access with PIN
verification
Commissioning via IF ServiceApp
or SHH console
records time data, such as e.g. points in time, IN/OUT bookings and absence reasons
reads current RFID credentials
Power supply via low-voltage supply unit or Ethernet (PoE)
These installation instructions apply both to terminals connected to the IF-6040 system via WLAN and to
terminals connected via Ethernet.
The two types are only distinguished, if necessary.
1.1 Scope of delivery
The package contains:

Master terminal IF-57xx / IF-5835

PoE connector

14-pin ribbon cable

Metal back panel

Accessory bag with mortise lock and material for wall mounting
 Check the completeness and condition of the goods immediately upon receipt.
 Report any damage caused during transport immediately.
1.2 Technical specifications are subject to change without notice
All information contained in this documentation is accurate at the time of printing. All specifications are
subject to change without notice. The brand names and trademarks specified in this documentation are
protected by commercial and patent laws.
Interflex Datensysteme GmbH
IF-5725-0xxx
displays account information
does not write offline
(NetworkOnCard) data onto
credentials
does not allow for the connection
of an I/O controller board
does not allow for the connection
of slave terminals
does not provide access with PIN
verification
IF-5835-0xxx
displays accounts calculated by the
IF-6040 time recording/access
control program or provided by
SAP
does not write offline
(NetworkOnCard) data onto
credentials
Commissioning via IF ServiceApp
1/8
