Interflex IF-57 Series Manual page 6

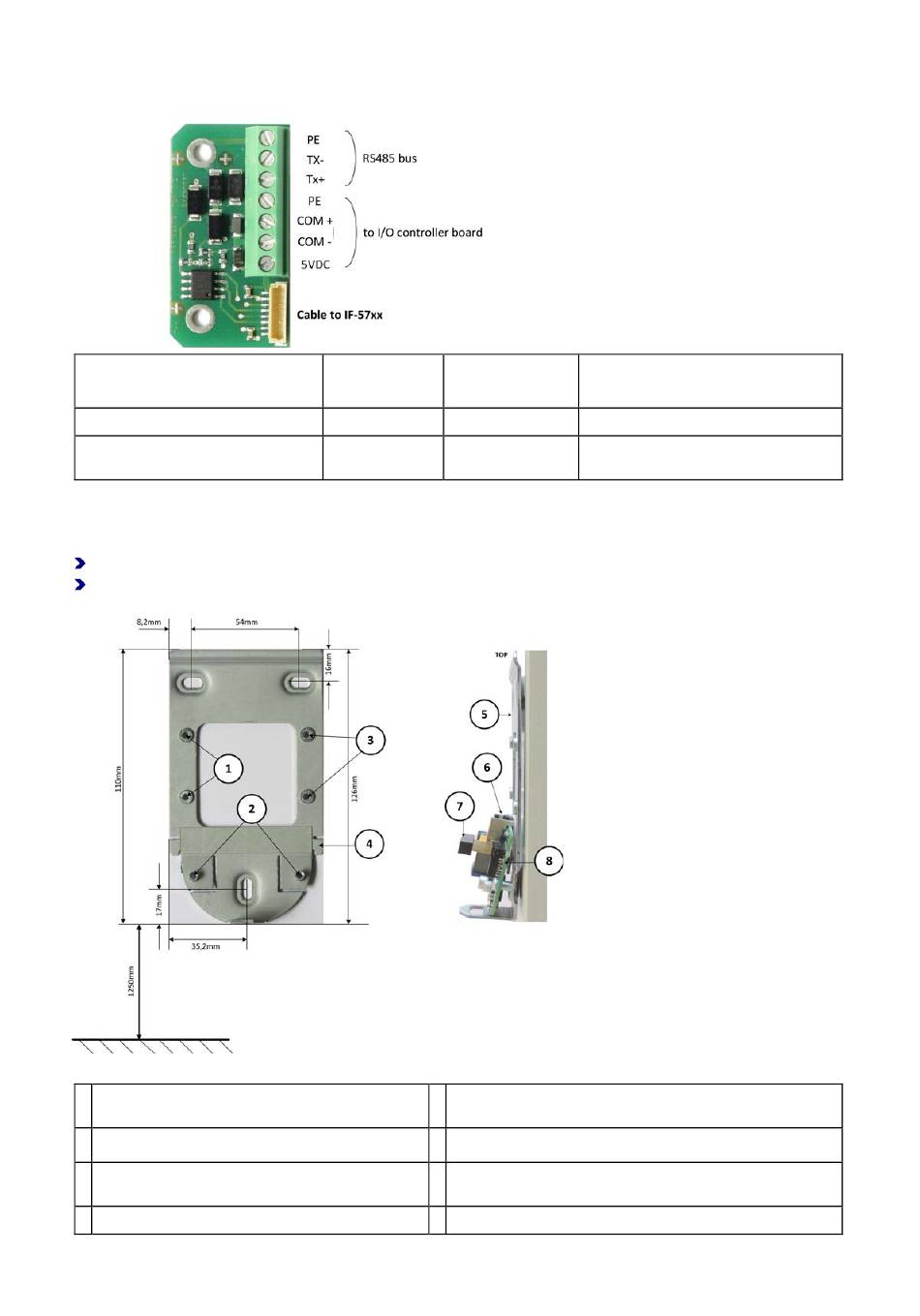

9.3.1 Cable Types Used in Conjunction with an Interface Expander
Use
RS485 BUS
to I/O controller board
More information can be found in the chapter "Interface Expansion".
10 Fastening the Back Panel of the Housing
Fasten the back panel of the housing only to an even surface.
If the cables are to be surface-mounted, a spacer is required (black, order no. 75-5735-0001 or white,
order no. 75-5735-0002).
Recommended installation height: 1,250 mm
1 Threaded bushing for fastening the interface
expander (accessory)
2 Threaded bolt for securing the PoE terminal board 6 RJ45 network connector
3 Threaded bushing for fastening an additional V24
interface (accessory)
4 Lugs for better fixation of the device
Interflex Datensysteme GmbH
Connections Permissible
Length
Tx+ Tx- PE 100 m
PE COM+ COM- 100 m
5 VDC
5 Back panel of housing
7 14-pin connector between PoE terminal board and IF-5735
main board
8 PoE terminal board
Recommended Cable Type
J-Y(ST)Y 4x2x 0.6 mm²
J-Y(ST)Y 4x2x 0.6 mm²
6/23
