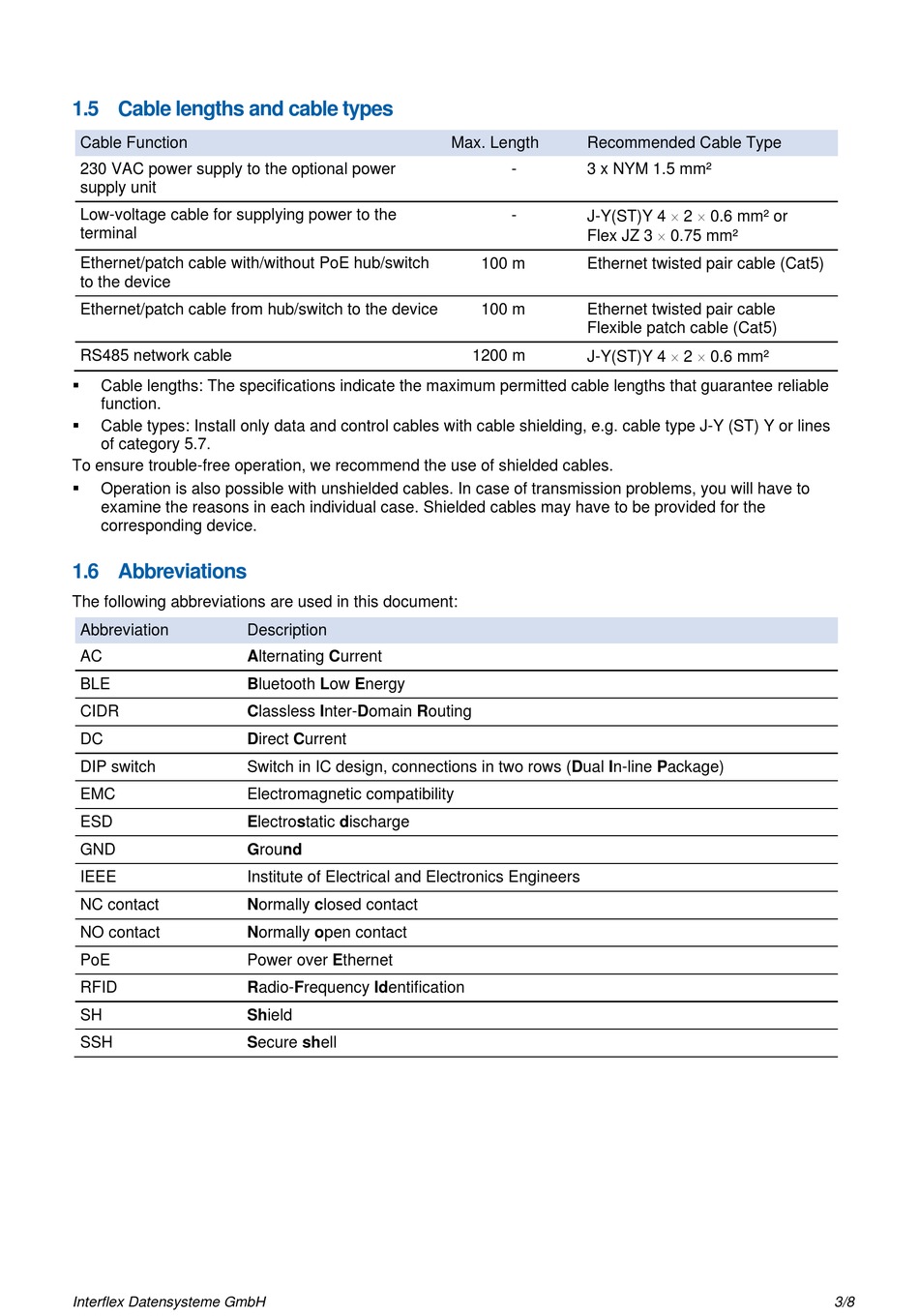

1.5 Cable lengths and cable types

Cable Function
230 VAC power supply to the optional power
supply unit
Low-voltage cable for supplying power to the
terminal
Ethernet/patch cable with/without PoE hub/switch
to the device
Ethernet/patch cable from hub/switch to the device
RS485 network cable

Cable lengths: The specifications indicate the maximum permitted cable lengths that guarantee reliable
function.

Cable types: Install only data and control cables with cable shielding, e.g. cable type J-Y (ST) Y or lines
of category 5.7.
To ensure trouble-free operation, we recommend the use of shielded cables.

Operation is also possible with unshielded cables. In case of transmission problems, you will have to
examine the reasons in each individual case. Shielded cables may have to be provided for the
corresponding device.
1.6 Abbreviations
The following abbreviations are used in this document:
Abbreviation
AC
BLE
CIDR
DC
DIP switch
EMC
ESD
GND
IEEE
NC contact
NO contact
PoE
RFID
SH
SSH
Interflex Datensysteme GmbH
Description
Alternating Current
Bluetooth Low Energy
Classless Inter-Domain Routing
Direct Current
Switch in IC design, connections in two rows (Dual In-line Package)
Electromagnetic compatibility
Electrostatic discharge
Ground
Institute of Electrical and Electronics Engineers
Normally closed contact
Normally open contact
Power over Ethernet
Radio-Frequency Identification
Shield
Secure shell
Max. Length Recommended Cable Type
- 3 x NYM 1.5 mm²
J-Y(ST)Y 4  2  0.6 mm² or
-
Flex JZ 3  0.75 mm²
100 m Ethernet twisted pair cable (Cat5)
100 m Ethernet twisted pair cable
Flexible patch cable (Cat5)
J-Y(ST)Y 4  2  0.6 mm²
1200 m
