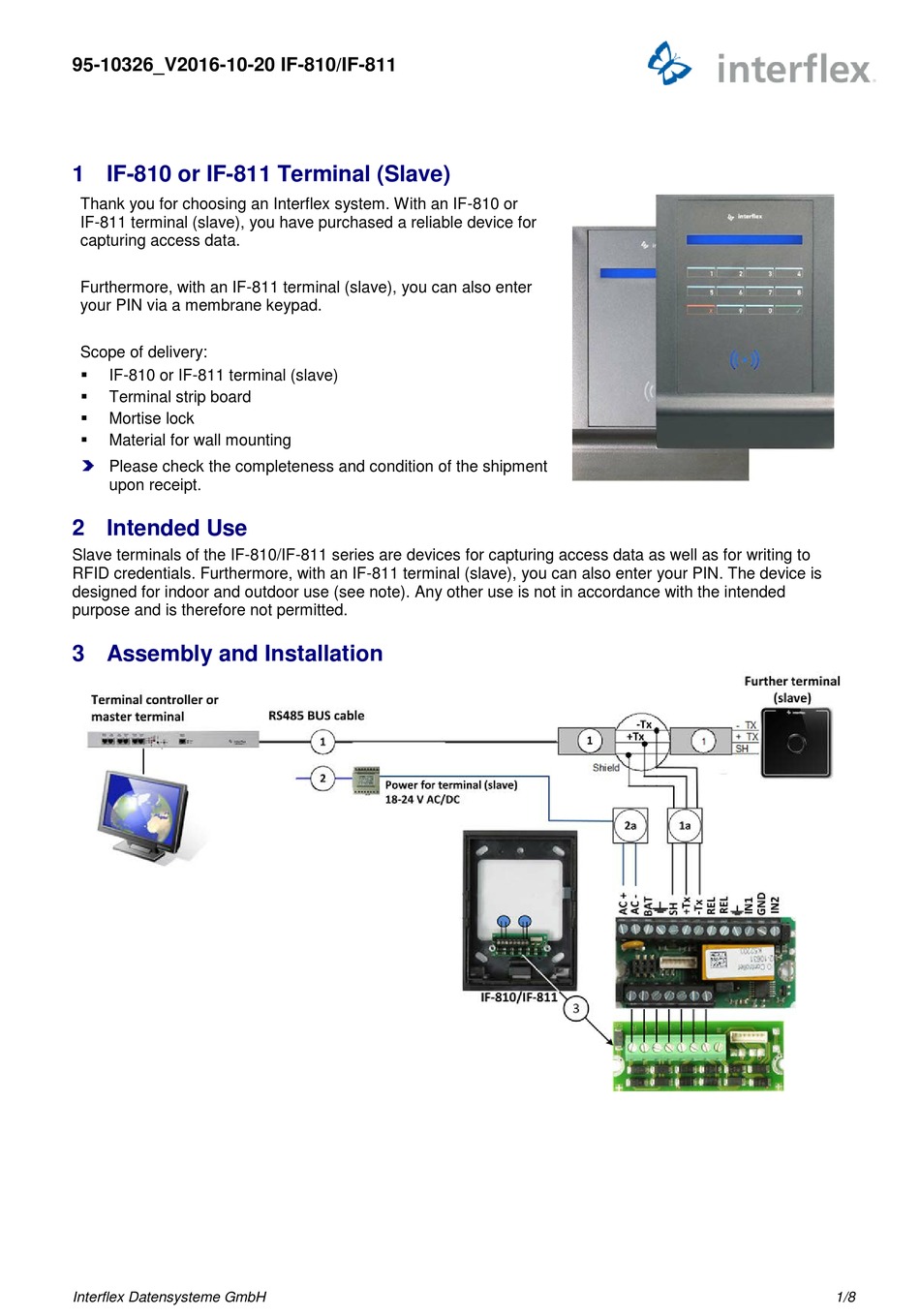

95-10326_V2016-10-20 IF-810/IF-811
1 IF-810 or IF-811 Terminal (Slave)
Thank you for choosing an Interflex system. With an IF-810 or
IF-811 terminal (slave), you have purchased a reliable device for
capturing access data.
Furthermore, with an IF-811 terminal (slave), you can also enter
your PIN via a membrane keypad.
Scope of delivery:
IF-810 or IF-811 terminal (slave)
Terminal strip board
Mortise lock
Material for wall mounting
Please check the completeness and condition of the shipment
upon receipt.
2 Intended Use
Slave terminals of the IF-810/IF-811 series are devices for capturing access data as well as for writing to
RFID credentials. Furthermore, with an IF-811 terminal (slave), you can also enter your PIN. The device is
designed for indoor and outdoor use (see note). Any other use is not in accordance with the intended
purpose and is therefore not permitted.
3 Assembly and Installation
Interflex Datensysteme GmbH
1/8
Advertisement
Related Manuals for Interflex IF-810
Summary of Contents for Interflex IF-810
- Page 1 2 Intended Use Slave terminals of the IF-810/IF-811 series are devices for capturing access data as well as for writing to RFID credentials. Furthermore, with an IF-811 terminal (slave), you can also enter your PIN. The device is designed for indoor and outdoor use (see note).
-
Page 2: Shielded Cables
1. Install the cables. 2. Install the power supply. 3. Mount the back panel of the IF-810/IF-811. If the terminal is to be used for access control, an I/O controller board must also be mounted in a secured area. 4. Set the address. - Page 3 The back panel of the housing (6) and the housing cover (8) are held together with internal latches and secured with a mortise lock (3). IF-810/IF-811 terminal (slave) Terminal strip board Tool for opening the IF-810/IF-811 terminal (order no. 50-10137) Back panel of housing Mortise lock Connecting cable...
- Page 4 The back panel of the housing (1) must not warp when being screwed down. The IF-810/IF-811 terminal (slave) can be installed in dry or humid environments (IP43). Installation is performed on flat walls or pillars, e.g. next to doors, using the materials included in delivery. The I/O board is installed in a secured area, e.g.
- Page 5 IF-79 I/O BUS panel (max. 100 m). Connecting the BUS cable The IF-810/IF-811 terminal is connected to BUS1, BUS2 or BUS3 of a controller. Connecting the I/O controller board The I/O controller board is used for controlling electric actuators. If access control is not required, the I/O controller board can be omitted.
- Page 6 The IF-810/IF-811 terminal requires functional grounding in order to comply with the EMC threshold values. The line shield is connected to terminal 8 (PE) on the terminal board as well as to terminal 4 or 10 on the I/O controller board.
- Page 7 The I/O controller board allows for access control. The board can switch electric door openers up to max. 30 V 2 A via an NO or NC contact. It must be separated from the IF-810/IF-811 terminal and installed in a secured area, e.g. in a Hensel installation box (no. 78-700-0146) or a DIN appliance case.
-
Page 8: Technical Specifications
30 V, 2 A User information Luminous bar with LEDs (blue, green, red) Data entry As opposed to IF-811, the IF-810 terminal is not equipped with a keypad. The IF-811 terminal is equipped with a numeric membrane keypad. Device Protection...
