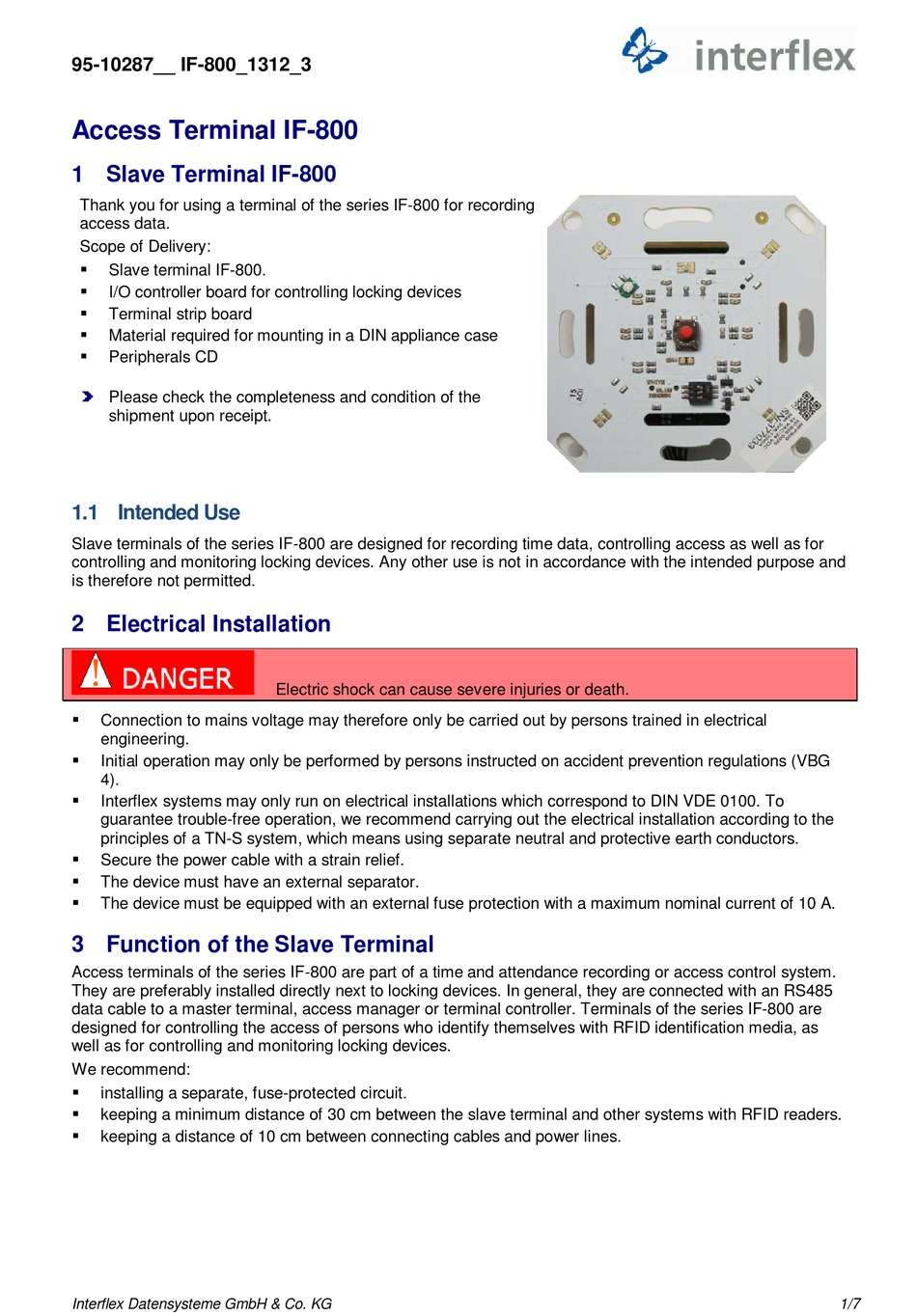

95-10287__ IF-800_1312_3
Access Terminal IF-800

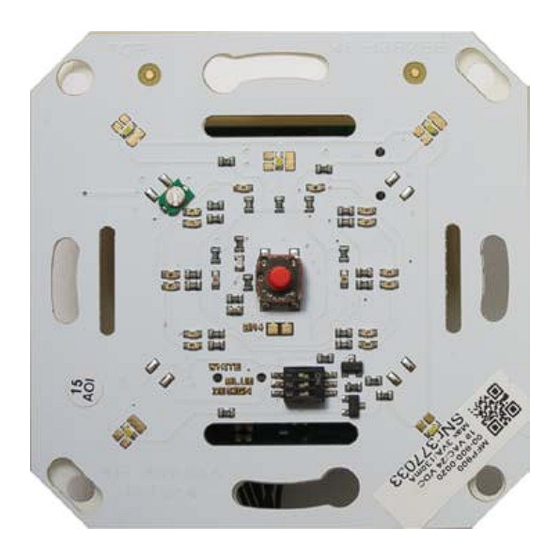

1 Slave Terminal IF-800
Thank you for using a terminal of the series IF-800 for recording
access data.
Scope of Delivery:
Slave terminal IF-800.
I/O controller board for controlling locking devices
Terminal strip board
Material required for mounting in a DIN appliance case
Peripherals CD
Please check the completeness and condition of the
shipment upon receipt.

1.1 Intended Use

Slave terminals of the series IF-800 are designed for recording time data, controlling access as well as for
controlling and monitoring locking devices. Any other use is not in accordance with the intended purpose and
is therefore not permitted.
2 Electrical Installation
Connection to mains voltage may therefore only be carried out by persons trained in electrical
engineering.
Initial operation may only be performed by persons instructed on accident prevention regulations (VBG
4).
Interflex systems may only run on electrical installations which correspond to DIN VDE 0100. To
guarantee trouble-free operation, we recommend carrying out the electrical installation according to the
principles of a TN-S system, which means using separate neutral and protective earth conductors.
Secure the power cable with a strain relief.
The device must have an external separator.
The device must be equipped with an external fuse protection with a maximum nominal current of 10 A.
3 Function of the Slave Terminal
Access terminals of the series IF-800 are part of a time and attendance recording or access control system.
They are preferably installed directly next to locking devices. In general, they are connected with an RS485
data cable to a master terminal, access manager or terminal controller. Terminals of the series IF-800 are
designed for controlling the access of persons who identify themselves with RFID identification media, as
well as for controlling and monitoring locking devices.
We recommend:
installing a separate, fuse-protected circuit.
keeping a minimum distance of 30 cm between the slave terminal and other systems with RFID readers.
keeping a distance of 10 cm between connecting cables and power lines.
Interflex Datensysteme GmbH & Co. KG
Electric shock can cause severe injuries or death.
1/7

Advertisement

loading
Need help?

Need help?

Do you have a question about the IF-800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Interflex IF-800

  • Page 1: Intended Use

    1.1 Intended Use Slave terminals of the series IF-800 are designed for recording time data, controlling access as well as for controlling and monitoring locking devices. Any other use is not in accordance with the intended purpose and is therefore not permitted.
  • Page 2 - Connect actuators and possible feedback sensors. 4. Set the hardware address. 5. Installation of the Terminal Mount the IF-800 terminal into the appliance case so that the large cutouts on the reader are at the top and bottom. 6. Switch on the operating voltage.
  • Page 3 1200 m J-Y(ST) Y 4x 2x 0.6mm² Install the power supply line in duplicate (one conductor pair each). The protective conductor should likewise be installed in duplicate, whereby the continuity wire can also be installed. Interflex Datensysteme GmbH & Co. KG...
  • Page 4 5.2 Connections Terminal strip board Circuit example: Control of an actuator (door opener) I/O controller board Circuit example: Connection of both inputs Circuit example: Voltage supply IF-800 Terminal Circuit example: RS485 connection Interflex Datensysteme GmbH & Co. KG...
  • Page 5 5.4 Install the terminal. Anti-tamper switch RFID board Design kit Large cutouts for latching the front panel. Metal retaining clips for fastening in the appliance case 7-wire cable from the terminal to terminal strip board Protective cover Interflex Datensysteme GmbH & Co. KG...
  • Page 6 Make sure that the lettering TOP on the IF-800 terminal is always on top. Only then can the design kit (accessory) be properly installed. 5.5 Reader Adjustment After mounting the reader into the appliance case, adjust it using the adjustment set (order no.
  • Page 7: Technical Specifications
