Pulse Meter - F&F CLG-03 Manual

Konstantynowska 79/81 95-200 Pabianice
phone/fax: (+48 42) 215 23 83 / 227 09 71 POLAND
http://www.fif.com.pl e-mail: fif@fif.com.pl

PULSE METER

WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealer or directly with us. More infor-
mation how to make a compliant can be
found on the website:
5 9 0 8 3 1 2
www.fif.com.pl/reklamacje
Do not dispose of this device to a garbage bin with other unsorted waste!
In accordance with the Waste Electrical and Electronic Equipment Act
any household electro-waste can be turned in free of charge and in any
quantity to a collection point established for this purpose, as well as to the
store in the event of purchasing new equipment (as per the old for new rule,
regardless of brand). Electro-waste thrown in the garbage bin or abandoned
in the bosom of nature pose a threat to the environment and human health.
Purpose
Pulse meter is intended for counting AC/DC voltage signals, generated
by additional peripheral devices in order to determine the number of
carried out working cycles in automatics systems, e.g. in order to control
the number of press strokes, the number of revolutions of a rotating
device, the number of components leaving the production line, etc.
Functioning
CLI-11T meter is an electronic, one-way meter, enabling the counting of
pulses from 0 to 999999 range (six digits). It is equipped with RESET
input for the connection of external button and RESET input for the
connection of an external button, enabling the resetting of the meter
state for any value.
- 1 -
Assembly
F&F Filipowski sp. j.
1. Take OFF the power.
2. Unscrew the nut and remove the attachment plate.
3. Embed meter in the assembly hole, attach plate and tighten the cap
CLI-11T
screws.
24V
4. To joints U (read input) connect the voltage which is reading signal
(impulse).
5. To RESET joints connect monostabile close button.
ATTENTION!
Do not connect any voltage.
5 9 1 8 5 6 Technical data
supply (non-voltage type)
battery life
read input voltage
input RESET
display
precision
working temperature
dimensions
fixing hole
protection level

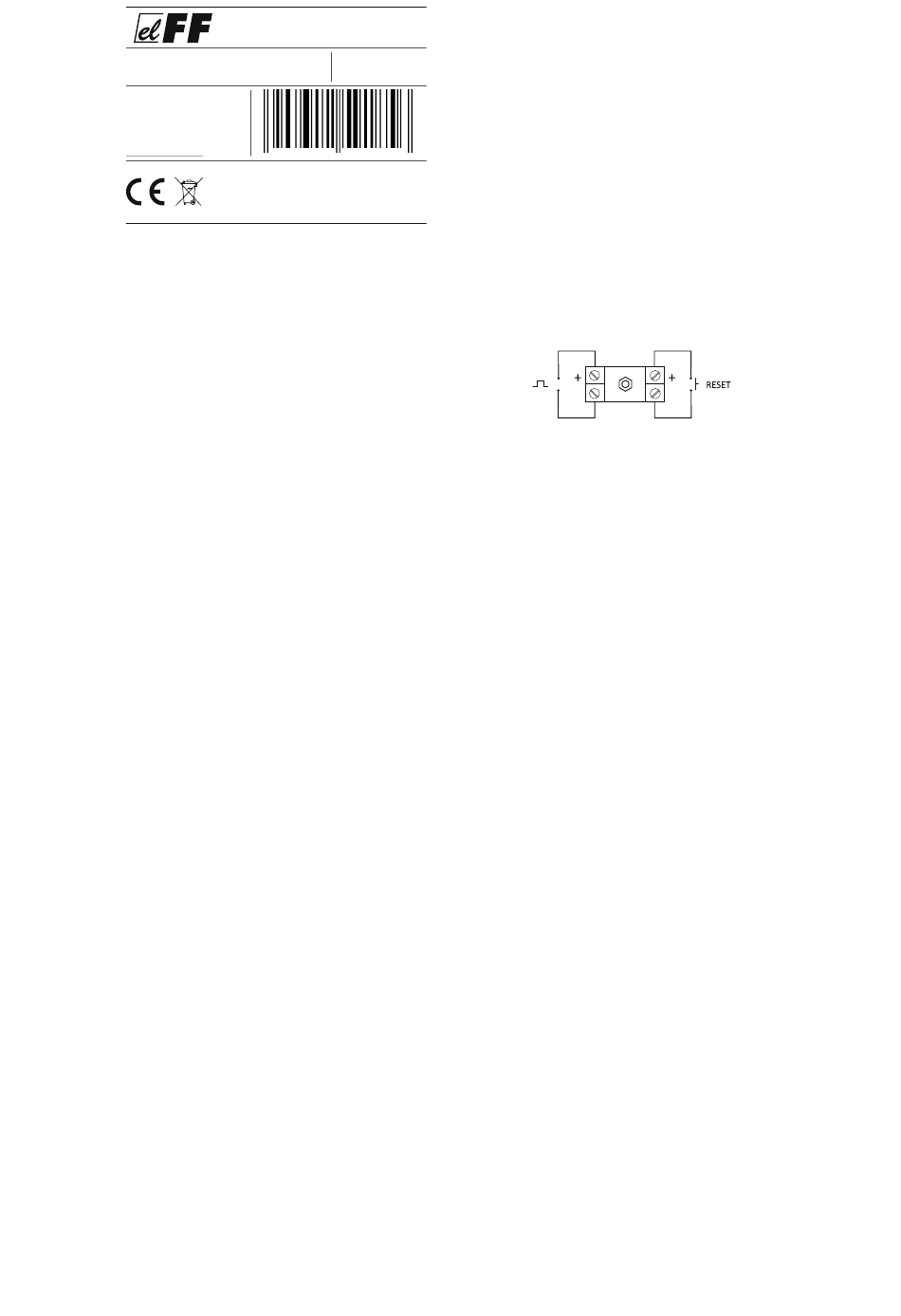

Wiring diagram
D141121
internal battery
8 characters / h=6,7mm
1%(±1digit)
48×24×52mm
U
- 2 -
5 years
4÷30V DC
4÷30V DC
-10÷40°C
45×23mm
IP20
