- Page 1 DC-W80 Document Camera User Manual - English [Important] To download the latest versions of the Quick Start Guide, multilingual user manual, software, driver, etc., please visit Lumens https://www.MyLumens.com/support...
-
Page 2: Table Of Contents
Chapter 4 Installation and Connections.............. 11 Machine Size....................11 Installation and setup................11 Connecting to a computer and use Lumens™ software (Wi-Fi mode)12 Connect to a projector, monitor or HDTV (HDMI mode).....12 Connecting to a computer and use Lumens™ software (USB Mode)13 Installing Application Software.............. - Page 3 I would like to rotate the image............... 18 I would like to enlarge a part of the image..........18 Chapter 8 Wi-Fi Connection Setting..............19 Network connection.................. 19 Log in to the web page................19 Web Page Menu Function Description..........20 Chapter 9 DIP Switch Setting.................
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Safety Instructions
Please clean the dust on the power plug prior to usage. Do not insert the product’s power plug into a multiplug to prevent sparks or a fire. Do not block the slots and openings in the case of DC-W80 Document Camera. They provide ventilation and prevent the DC-W80 Document Camera from overheating. -
Page 6: Chapter 2 Package Contents
Chapter 2 Package Contents USB cable (USB Quick Installation DC-W80 2.0) Guide English... -

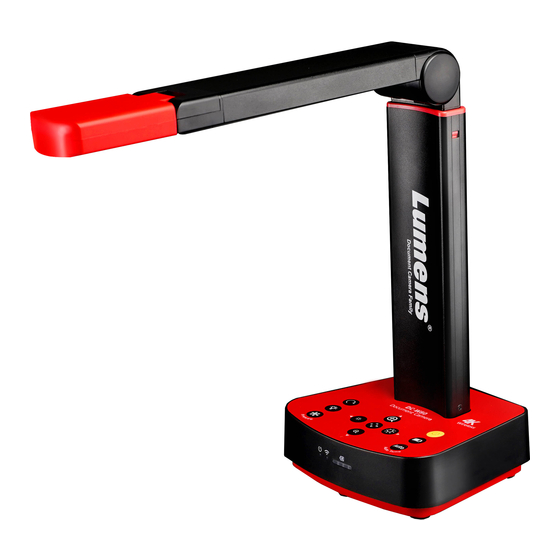

Page 7: Chapter 3 Product Overview
Chapter 3 Product Overview 3.1 Overview Lens/Lamp Control panel LED Indicator 3.2 Extension angle Support Arm < Caution > Please only operate in the extended angles as illustrated. Improper usage may damage the machine. English... -
Page 8: I/O Functions Introduction
3.3 Precautions for installation 3.4 I/O functions Introduction Front View Back View Item Function Descriptions Power LED Display the status of the machine. Please refer to Indicator Description of LED indicator Display the status of the Wi-Fi. Please refer to Wi-Fi LED Indicator Description of LED indicator Battery LED... -
Page 9: Description Of Led Indicator
Item Function Descriptions lock Press the button for initialization to reset to original Reset Button factory settings. Adjust the resolution setting. The default is 1920*1080/30 fps. DIP Switch Setting To switch the setting, please refer to Chapter 9 DIP Switch Setting Mode Switch Button Switch Modes: Wi-Fi / HDMI / USB HDMI output port... -
Page 10: Relative Position Of The Presenter And Document
Indicator light is green After connecting the USB cable and the flickering indicator light will indicate that it is charging Press “Battery Check” button to display the battery level Battery level ≥ 75% Battery Battery level 50% ~ 75% Battery level 25% ~ 50% Battery level 3% ~ 25% Battery level <... - Page 11 English...
-
Page 12: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 Machine Size Length x Width x Height: Extended－306 x 140 x 373 mm Closed－137 x 140 x 270 mm Weight: 1.35 kg 4.2 Installation and setup Please set up the DIP switch setting first. Refer to Chapter 9 DIP Switch Setting. -
Page 13: Connecting To A Computer And Use Lumens™ Software (Wi-Fi Mode)12
4.3 Connecting to a computer and use Lumens™ software (Wi-Fi mode) Computer ※Please download the relevant software from Lumens website. For more information on the connection method, please refer to Chapter 8 Wi-Fi Connection Setting. 4.4 Connect to a projector, monitor or HDTV (HDMI mode) -
Page 14: Connecting To A Computer And Use Lumens™ Software (Usb Mode)13
4.5 Connecting to a computer and use Lumens™ software (USB Mode) Projector USBCable HDMICable Computer ※Please download the relevant software from Lumens website. 4.6 Installing Application Software The application software installed on the computer enables you to: Control DC-W80. -
Page 15: Chapter 5 Start Using
Chapter 5 Start Using Projector Computer Charge for a recommended 10.5 hours prior to first-time operation. The device is fully charged when all the power bars are full and the green light is constant Place an object to be displayed under the camera. Turn on the power and adjust the operation mode according to the connection method. -
Page 16: Chapter 6 Introductions To Control Panel Buttons
Chapter 6 Introductions to Control Panel Buttons Icon Function Descriptions Turn on and off ※Press and hold for 10 seconds to forcibly turn off the system Battery level check Automatically adjust the image to have the best brightness and focusing performance Auto Tune Left, right, up, down buttons, used for moving in a ,,,... - Page 17 Freeze English...
-
Page 18: Chapter 7 Descriptions Of Major Functions
Chapter 7 Descriptions of Major Functions 7.1 I would like to automatically adjust the image to have the best brightness and focusing performance Press [Auto Tune] for the best brightness and focusing performance. 7.2 I would like to freeze the live image ... -
Page 19: I Would Like To Rotate The Image
7.6 I would like to rotate the image Press to rotate the image. (The sequence of switching is: 0°/180°/Vertical flip/Horizontal flip/90°/270°) 7.7 I would like to enlarge a part of the image 1. Press to activate the partial enlarged mode. 2. -
Page 20: Chapter 8 Wi-Fi Connection Setting
Chapter 8 Wi-Fi Connection Setting 8.1 Network connection 8.1.1 Switch to the Wi-Fi mode and the Wi-Fi LED indicator will be displayed in blue. 8.1.2 Open the wireless network list on the computer. 8.1.3 Select the [DC-W80_5G_XXXXXX ] (XXXXXX: last 6-digits of the MAC address) in the network list, and input the password for connection (default: 88889999) to start the connection. -
Page 21: Web Page Menu Function Description
8.3 Web Page Menu Function Description 8.3.1 Login Screen Item Function Descriptions User Login Account Enter user login account (default: admin) User Password Enter user password (default: 9999) Remember user Save user login account and password to account and the browser. When you log in next time, password there is no need to re-enter them Log into the administrator screen on the... - Page 22 8.3.2 Live Viewing Item Function Descriptions Display the screen currently captured by Preview window DC-W80 Automatic Image Automatically adjust the image to have the Optimization best brightness and focusing performance Freeze the image Freeze the current image on the screen...
- Page 23 8.3.3 Wi-Fi Setting (Access Point Mode) Item Function Descriptions Wi-Fi Mode Select Access Point or Client Mode Switch between 5G / 2.4G under Wi-Fi Access Wi-Fi 5G/2.4G Point mode Device Name Device name of wireless network Hide Device After hiding the device is initiated, other Name equipment cannot find this device Channel...
- Page 24 Network Device Names Device Name Device name of wireless network Display the wireless network device to which DC-W80 is currently connecting. If connected, Connection the corresponding field of said wireless device Status will display “Connected”, otherwise it would stay blank...
- Page 25 Signal Status Show the degree of the Wi-Fi signal 8.3.5 System Information Item Function Descriptions The web page login setting of this DC-W80 device. Device and Click edit to enter edit mode and change the Account device name, the user account, and the password.
- Page 26 8.3.6 Streaming Parameter Item Function Descriptions RTSP Streaming The RTSP streaming setting of this DC-W80 Setting device Show or set the RTSP output resolution and Resolution Bit Rate (kbps) Show or set the RTSP Bit rate (0 ~ 20000) Port Number...
- Page 27 8.3.7 Maintenance Item Function Descriptions Reset to the Select the reset button to resume the factory default value default setting as the web page setting Reboot Click the reboot button and reboot the device In the event of an error, an error code log will Event Logs be established If an error code appears, the user may try to...
- Page 28 8.3.8 About Item Function Descriptions Related Display information about the manufacturing of Information this device English...
-
Page 29: Chapter 9 Dip Switch Setting
Chapter 9 DIP Switch Setting 9.1 Description of DIP Function Descriptions Output Resolution DIP1 & DIP2 OFF (Normal mode): 30/25 fps, applicable to general DIP3 scene ON (High-speed mode): 60/50 fps, applicable to support rapidly changing scene (Only applicable to 1080P) : 60Hz DIP4 ON: 50Hz... -
Page 30: Chapter 10 Troubleshooting
Chapter 10 Troubleshooting This chapter describes problems you may encounter while using DC-W80. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact your distributor or the service center. -
Page 31: Information
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Manufacturer：Lumens Digital Optics Inc. Product Name：DC-W80 Model Number：4K Document Camera Responsible Party – U.S. Contact Information Supplier：Lumens Integration, Inc. 4116 Clipper Court, Fremont, CA 94538, United States e-mail ：support@mylumens.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules.
