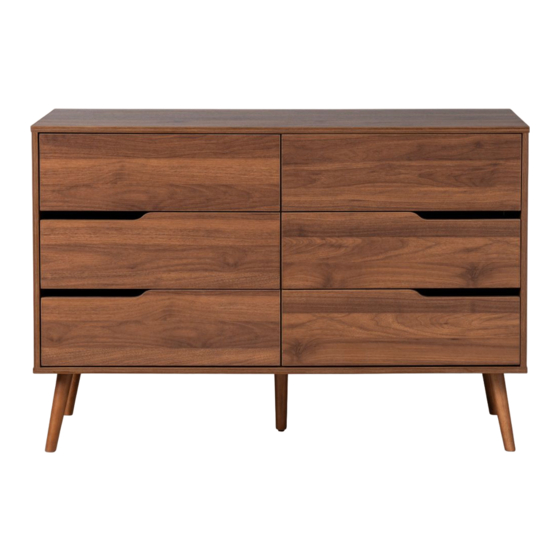

Edmond Six Drawer
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
long
dowel
bolt
locking
screw
x12
x34
nut x34
x8
K
J
L
screw
long bolt
plastic
Allen
x8
glide
Key
x24
x4
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
D
F
G
bracket
screw
bolt
x4
x16
x60
M
P
N
O
Allen
slide
slide
Key
rail x6
rail x6
x1

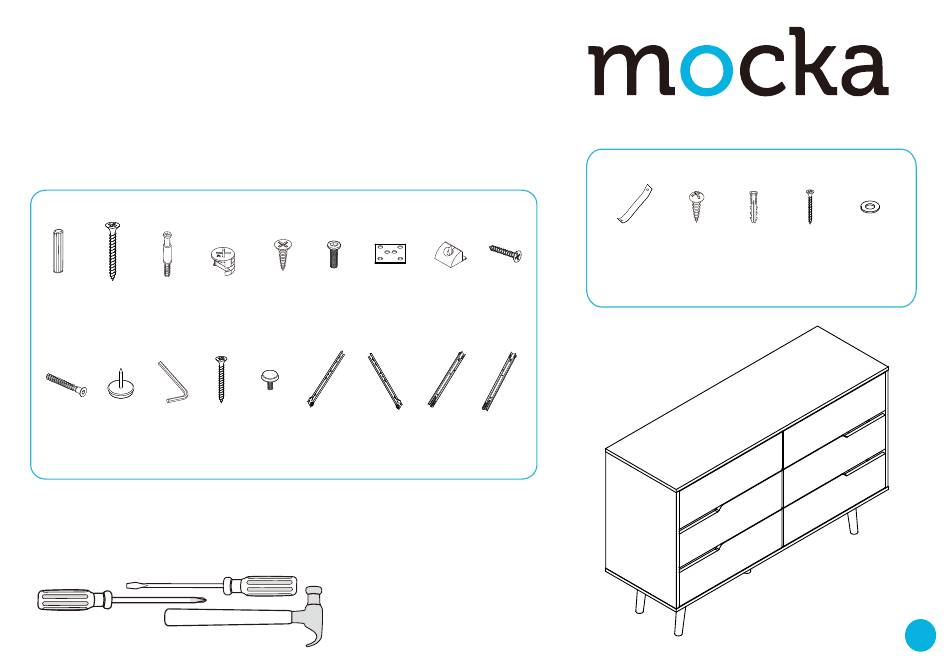

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
I
H
screw
wedge
x8
x8
Q
R
slide
slide
rail x6
rail x6
V
W
X
safety
screw
wall
x2
strap x2
anchor
x2
Wall Strap
Y
Z
wall
washer
screw
x4
x2
1
