Eliza Bedside Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
x8
screw
x16
x4
K
I
J
slide
wedge
screw
rail x3
x4
x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
locking
screw
slide
nut x16
x36
rail x3
L
M
bolt
screw
x16
x12

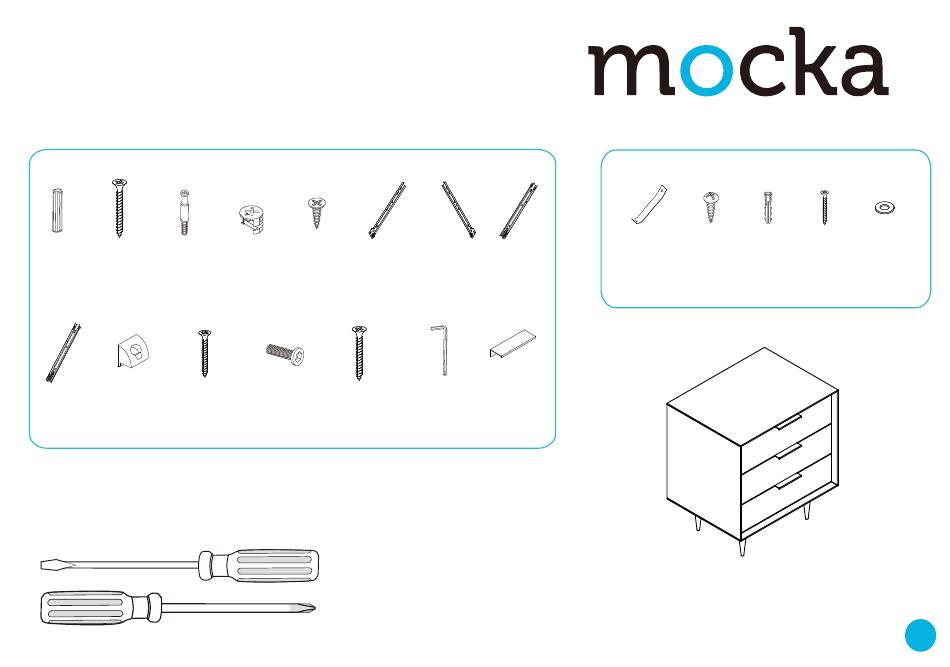

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
G
H
slide
slide
rail x3
rail x3
N
O
Allen
handle
x3
key x1
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Eliza Bedside Table
Summary of Contents for Mocka Eliza Bedside Table
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 3x slide rails (F) and 3x slide rails (G) to panels [3] and [4] Insert 4x bolts (C) into panel [1] as shown. Tighten with a screwdriver. as shown and secure with 18x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Slide panel [5] down along the grooves between the panels [3] and [4], secure with 4x locking nuts (D). Tighten with a screwdriver. to form the back of the unit as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [2] to panels [3] and [4] with 4x dowels (A) and Attach 4x legs [6] to panel [2] and secure with 16x bolts (L). secure with 4x long screws (B). Tighten with a screwdriver. Tighten with an Allen Key (N). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 [9] to form the base of the drawer. Attach panels [11], [8] and [9] as Attach panels [8] and [9] to panel [7] and secure with 4x shown using 4x screws (M). Tighten with a screwdriver. locking nuts (D). Tighten with a screwdriver mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Secure with 4x screws (E) and tighten with a as shown. Ensure the drawers slide easily along the rails. screwdriver. Attach handle (O) to panel [7] and secure with 2x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 1x washer (Z) and Fasten to the wall using 1x washer (Z) , 1x wall anchor (X) and 1x screws (W). Tighten with a screwdriver. 1x wall screw (Y). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
