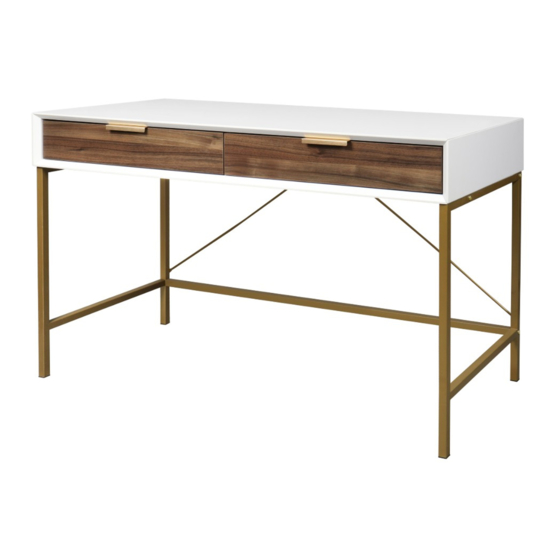

Eliza Desk

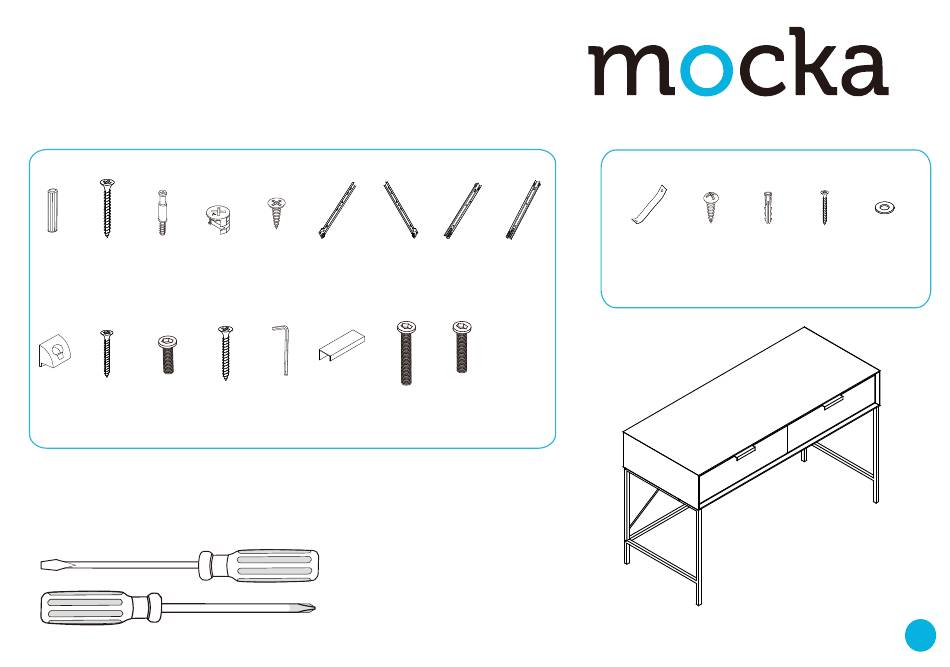

Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
dowel
long
bolt
locking
x12
screw
x14
nut x14
x6
K
L
J
small bolt
screw
wedge
screw
x4
x4
x3
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
G
screw
slide
slide
x24
rail x2
rail x2
M
N
O
Allen
handle
long
x8
x2
key x1
bolt
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
H
I
slide
slide
rail x2
rail x2
P
Q
bolt
x8
x6
V
W
X
safety
screw
wall
x1
strap x1
anchor
x1
Wall Strap
Y
Z
wall
washer
screw
x2
x1
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Eliza Desk
Summary of Contents for Mocka Eliza Desk
- Page 1 *We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use. Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 1x slide rail (G) and 1x slide rail (F) to panel [5] as shown shown and secure with 6x screws (E). Tighten with a screwdriver. and secure with 6x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Insert 6x bolts (C) into panel [1] as shown. Tighten with a screwdriver. Attach panels [3], [4] and [5] to the panel [1] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [2] to panels [3], [4] and [5] with 6x dowels (A) and Slide panel [6] down along the grooves between the panels [3] and [4]. secure with 6x long screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [7], [8], [9] and [10] to panel [2] with 8x bolts (Q). Attach panels [7] and [8] to panels [9], [10] and [11] with 6x long bolts (P). Tighten with an allen key (N). Tighten with an allen key (N). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 [15] to form the base of the drawer. Attach panels [14], [15] and [17] as shown using 4x screws (M). Tighten with a screwdriver. with 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Secure with 4x screws (E) and tighten with a shown. Ensure the drawers slide easily along the rails. screwdriver. Attach handle (O) to panels [12]/[13] and secure with 2x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 1x screw (W). Tighten with a screwdriver. Attach panels [18] to panels [7] 1x wall screw (Y). Ensure unit is balanced and steady before use. and [8] with 3x small bolts (L). Tighten with an allen key (N). You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
