Maya Bookcase
Assembly Instructions
1
A

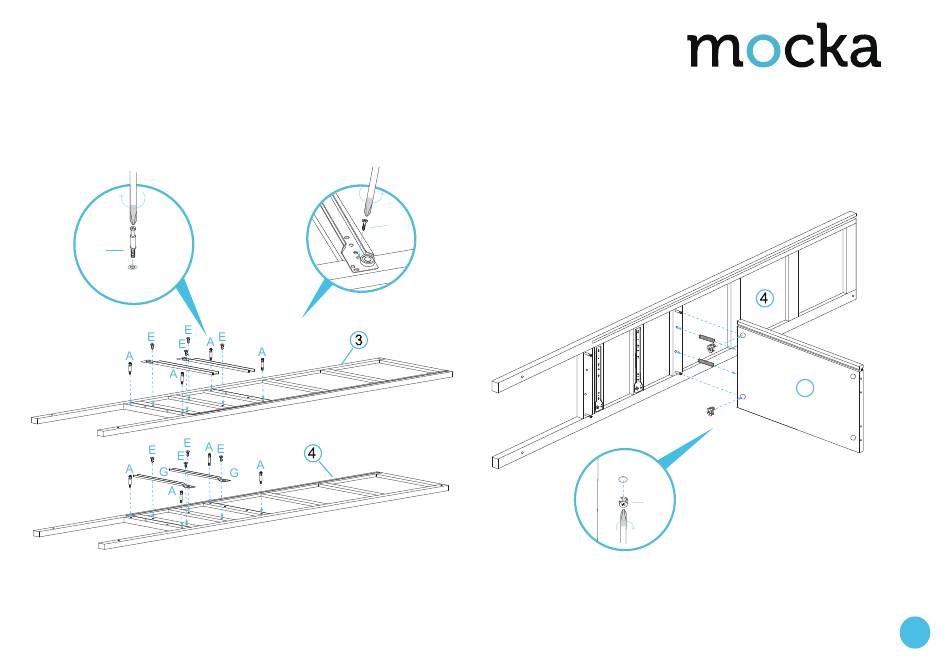

Insert 8 x bolt (A) into panels [3] and [4]. Attach 2 x L slide rails (G) to
panel [3] and secure with 4 x small screw (E). Attach 2 x R slide rails
(G) to panel [4] and secure with 4 x small screw (E). Tighten with a
screwdriver.
mocka.co.nz | mocka.com.au
2
E
Insert 2x dowel (C) into panels [4] and [5]. Attach panels [5] and
secure with 2x locking nuts (B). Tighten with a screwdriver.
C
B
C
5
B
B
2
