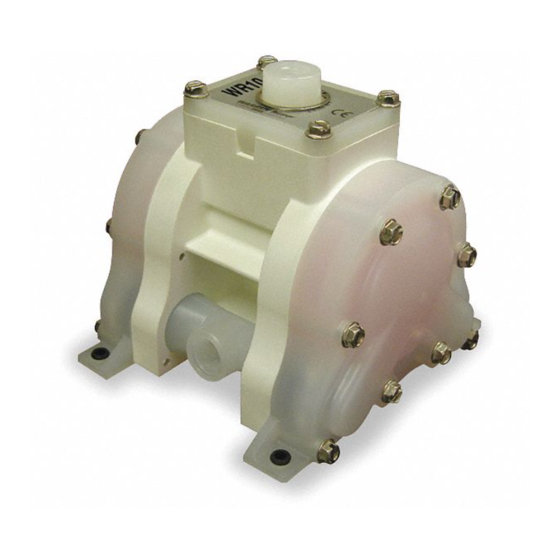

- Page 1 Operating Instructions • Polypropylene • Kynar WARREN RUPP ® , IDEX AODD, Inc. • A Unit of IDEX Corporation • 800 N. Main St., P.O. Box 1568, Mansfi eld, Ohio 44901-1568 USA Telephone (419) 524-8388 • Fax (419) 522-7867 • www.warrenrupp.com...
-
Page 2: Table Of Contents
Operating and Service Manual Model 3/8" Bolted Plastic Pumps Table of Contents Warnings, Cautions & Notices ..........1 Specifi cations & Performance ........... 2 Installation, Operation & Maintenance ........3 Troubleshooting ................ 4 Parts List .................. 5 Pump Drawing, Exploded View ..........6 Materials, Temperature Limits &... -
Page 3: Warnings, Cautions & Notices
WARNINGS, CAUTIONS & NOTICES Please read all cautions, warnings and notes manual for reference. Failure to comply with the completely before installation and start-up. recommendations stated in this manual may damage It is the responsibility of the purchaser to retain this the pump and void the factory warranty. -
Page 4: Specifi Cations & Performance
WR10 SPECIFICATIONS & PERFORMANCE Specifications Performance Flow Rate adjustable to . . 0-6.8 gpm (261 lpm) Displacement Per Stroke, 0.0045 G al. (0.017 L) Port Size Inlet and Discharge ..3/8" Female NPT (BSP) AIR CONSUMPTION IN SCFM AIR PRESSURE IN PSI Air Inlet . -
Page 5: Installation, Operation & Maintenance
INSTALLATION, OPERATION & MAINTENANCE Installation Pump Operation The pump should be mounted in a vertical The pump is powered by compressed air. position. In permanent installations, the pump Compressed air is directed to the pump air should be attached to plant piping using a fl exible chamber by the main air valve. -
Page 6: Troubleshooting
TROUBLESHOOTING Symptom Potential Cause(s) Recommendation(s) 1 Incorrect pilot o-ring placement 1 Reinstall pilot o-rings in correct positions Pump cycles once 2 Inner diaphragm plate installed backwards 2 Reinstall inner diaphragm plate correctly 3 Deadhead (system pressure meets or exceeds 3 Check system for pressure ratio to pump 4 Install gaskets with holes properly aligned air supply pressure) 4 Air valve or center block gaskets installed incorrectly... -
Page 7: Parts List
E8 PARTS LIST AIR VALVE ASSEMBLY Item Description Qty. Standard: Polypropylene Air Valve Assembly (Includes items 1-10) E800 Valve Body 10-048 Valve Spool E500B ASY (Includes (2) P98-104A) Valve Spool U-Cup P98-104A End Cap E800D (Includes (1) E800D ASY) End Cap O-Ring E500E Air Diverter 10-075... -
Page 8: Pump Drawing, Exploded View
E8 EXPLODED VIEW Torque Settings 25 in-lbs (2.8 N-m) Water Chamber Bolts 40 in-lbs (4.5 N-m) Diaphragm Plates — Rubber 60 in-lbs (6.8 N-m) Diaphragm Plates — PTFE 60 in-lbs (6.8 N-m) Air Valve Cap Screws 25 in-lbs (2.8 N-m) DETAIL A 60 in-lbs (6.8 N-m) -
Page 9: Materials, Temperature Limits & Compatibility
MATERIALS, TEMPERATURE LIMITS & COMPATIBILITY Materials of Construction — Pumps ® MODEL Acetal Aluminum Cast Iron Hastelloy C Polypropylene PVDF Stainless Steel ■ ■ ■ E6 (1/4") ● ● E8 (3/8") ● ● ● ●▲ ●▲ ● E5 (1/2") ● E7 (3/4") ●... -
Page 10: Declaration Of Conformity
Declaration of Conformity Warren Rupp ® , IDEX AODD, Inc., 800 N. Main Street, P.O. Box 1568, Mansfield, Ohio, 44901-1568 USA, certifies that Air-Operated Double Diaphragm Pump Series: HDB, HDF, M Non-Metallic, S Non-Metallic, M Metallic, S Metallic, T Series, G Series, U Series,... -
Page 11: Notes
Kynar is a registered tradename of Penwalt Corp. Geolast is a registered tradename of AES. Warren Rupp is a registered tradename of IDEX AODD, inc. WARREN RUPP, INC. A Unit of IDEX Corporation 800 North Main Street Mansfield, OH 44901-1568 USA...
