Distech Controls DA-088N Series Hardware Installation Manual page 8

DA-088N024Fxxxx, continued
Each wire has the standard symbol printed on it. See
Table 1.

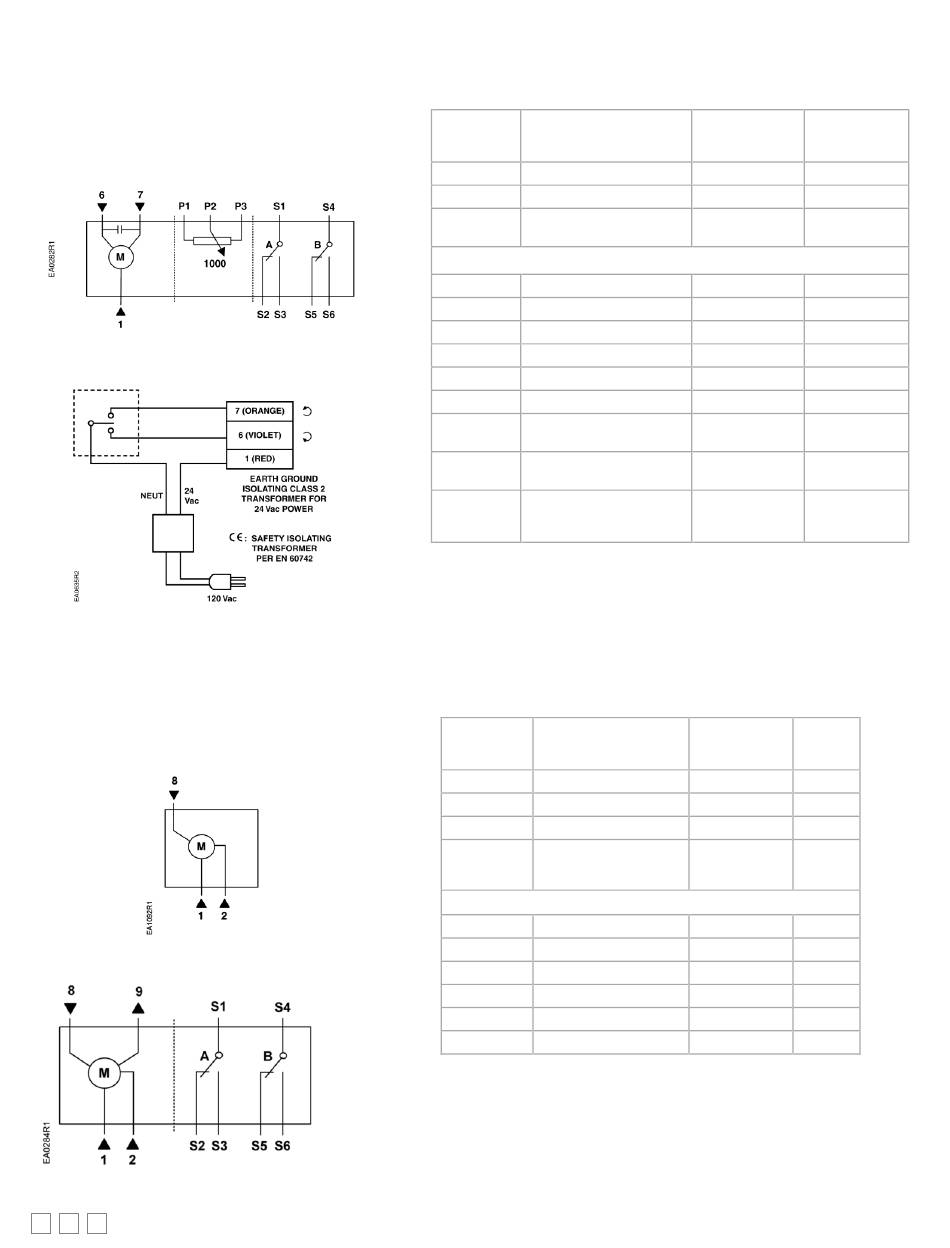

24 Vac Power Supply Floating Control.
Figure 22. Floating Control.
Each wire has the standard symbol printed on it. See
Table 2.
DA-088N024Pxxxx
24 Vac Power Supply, Modulating Control
8/14
Table 1. 3-position Control 24 Vac.
Standard
Function
Symbol
1 Supply (SP)
6 Control signal clockwise
7 Control signal
counterclockwise
S1 Switch A Common
S2 Switch A N.C.
S3 Switch A N.O.
S4 Switch B Common
S5 Switch B N.C.
S6 Switch B N.O.
P1 Feedback Potentiometer
0 to 100% P1 - P2
P2 Feedback Potentiometer
Common
P3 Feedback Potentiometer
100 to 0% P3 - P2
Table 2. Modulating Control
Standard
Function
Symbol
1 Supply (SP)
2 Neutral (SN)
8 0 to 10V input signal
9 Output for 0 to 10 Vdc
position indication
Factory installed options
Switch A – Common
S1
Switch A – N.C.
S2
Switch A – N.O.
S3
Switch B – Common
S4
Switch B – N.C.
S5
Switch B – N.O.
S6
Terminal Color
Designation
G Red
Y1 Violet
Y2 Orange
Q11 Gray/red
Q12 Gray/blue
Q14 Gray/pink
Q21 Black/red
Q22 Black/blue
Q24 Black/pink
a White/red
b White/blue
c White/pink
Terminal
Color
Designation
G Red
G0 Black
Y Gray
U Pink
Q11 Black
Q12 Black
Q14 Black
Q21 Black
Q22 Black
Q24 Black
