Product Components

Actuator Components

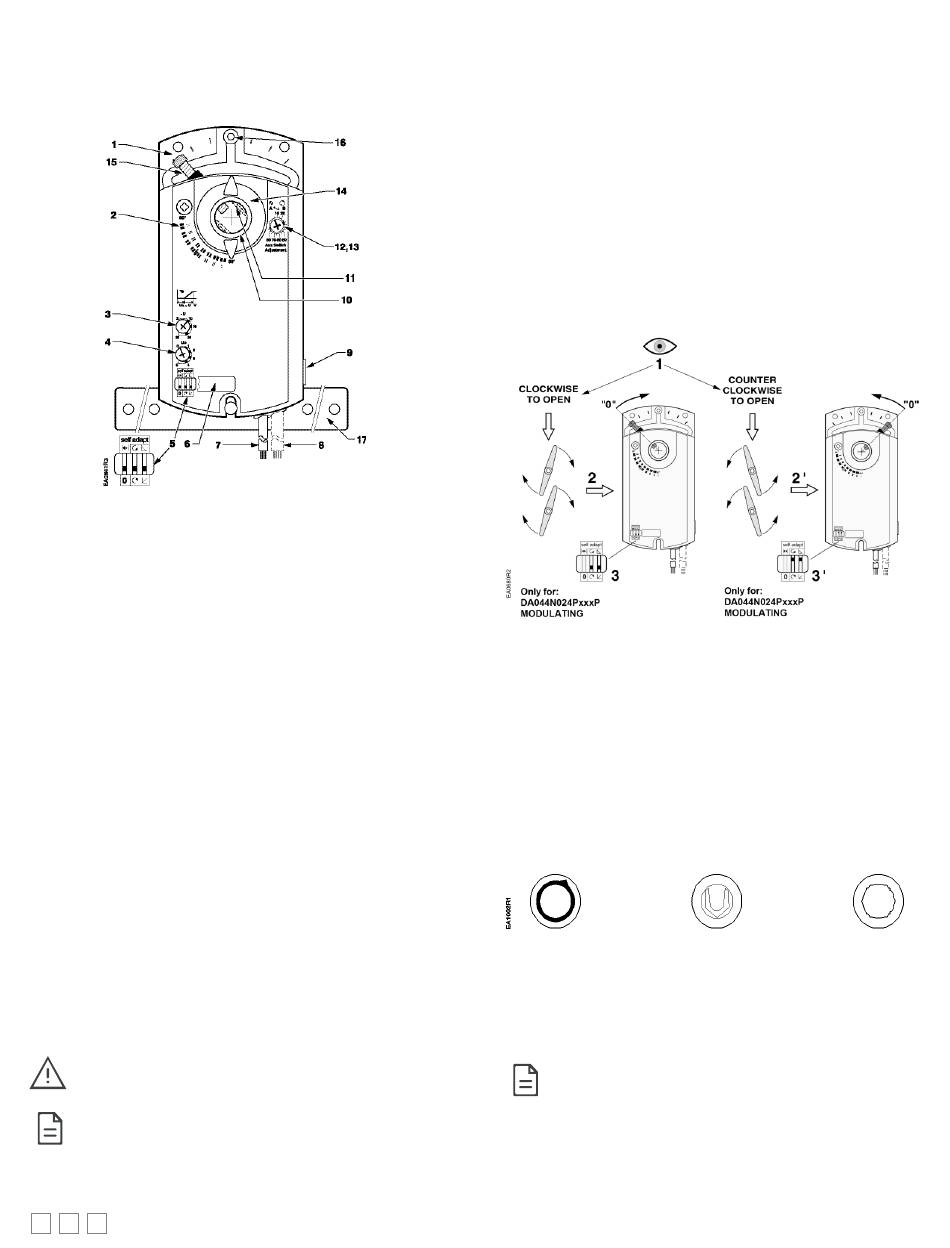

Figure 2: Parts of the Actuator
1. Base plate
2. Positioning scale for angle of
rotation
3. Slope adjustment
4. Offset (start point) adjustment
5. DIP switches
6. Cover for DIP switches
7. Connection cables
8. Connection cables
9. Manual override
Instructions
Estimated Installation Time
30 minutes
Required Tools
-
4 mm hex wrench
-
4 mm (5/32-inch) drill bit and drill
-
Small flat-blade screwdriver
-
Marker or pencil
Do not open the actuator.
Place the actuator on the damper shaft so that the front
of the actuator is accessible. The label is on the front
side. A mounting bracket is included with the actuator.
2/14
10. Coupling bushing
11. Factory installed 1/2-inch
guide
12. Auxiliary switch A
13. Auxiliary switch B
14. Position indicator
15. Adjustment lever with locking
screw (4 mm hex)
16. Set screw for mechanical
range stop (4 mm hex)
17. Mounting bracket
1. Determine whether the damper blades will rotate clockwise or
counterclockwise to open. See Figure 3.
2. If the blades will rotate counterclockwise, slide the manual override
switch to manual, and move the adjustment lever to the right.
Return the switch to automatic. See Figure 17.
To mount a (modulating) DA-088N024Pxxxx, set the Dual In-line
Package (DIP) switches to the required positions.
1. To access the DIP switches, raise the tab on the lower left side of
the actuator. See Figure 3. The factory setting is clockwise (middle
switch), with a direct-acting feedback signal (right switch).
2. Close the tab over the DIP switches.
To mount a (3-positon) DA-088N024Fxxxx for counter-clockwise
rotation, follow the Counterclockwise Damper Rotation instructions
located in the Wiring Diagrams section when wiring the actuator to the
controller.
Figure 3. Setting the Direction of Rotation.

Mounting and Installation

Damper Shaft Sizes
-
The minimum damper drive shaft length is 3/4-inch (20 mm).
-
Observe the service envelope around the actuator as shown in
Figure 25.
-
Detailed mounting instructions are included with each actuator.
1/2-inch Ø: 3/8-inch Ø:
Actuators come with Use the shaft insert supplied
a factory installed for any 3/8-inch (8 to 10mm)
1/2-inch shaft guide.. diameter shaft
If shaft size is 1/2-
inch, proceed with
Figure 7.
For all damper shafts with the exception of the 1/2-inch
round shaft: Remove
installation.
When using a 3/8-inch shaft: Remove factory installed 1/2-inch guide.
See Figure 4.
5/8-inch Ø
1/2-inch Ø guide before
