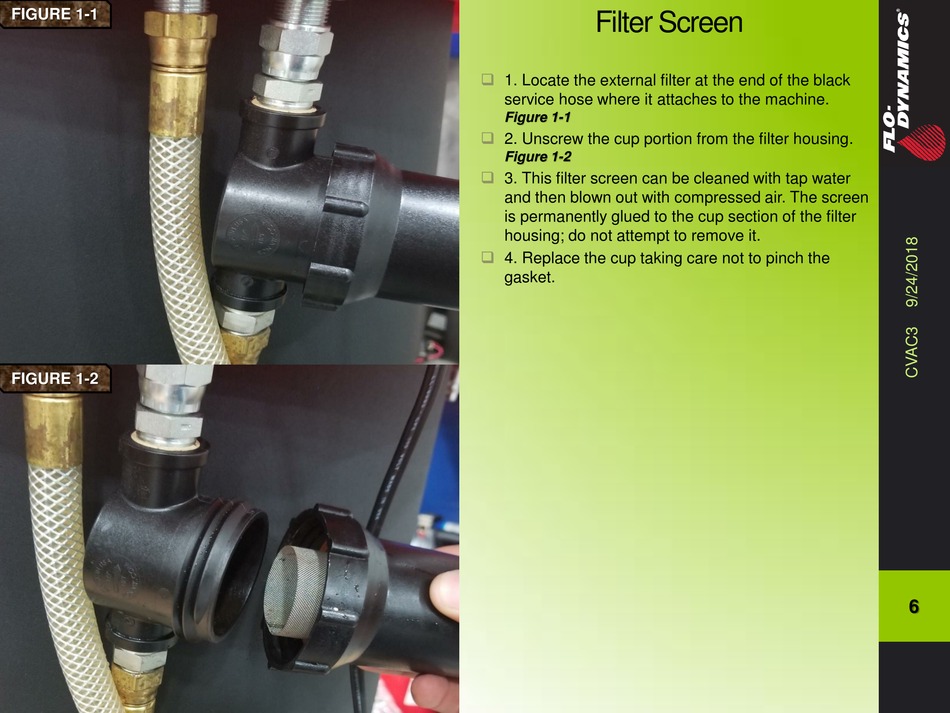

Filter Screen


1. Locate the external filter at the end of the black
service hose where it attaches to the machine.
Figure 1-1

2. Unscrew the cup portion from the filter housing.
Figure 1-2

3. This filter screen can be cleaned with tap water
and then blown out with compressed air. The screen
is permanently glued to the cup section of the filter
housing; do not attempt to remove it.

4. Replace the cup taking care not to pinch the
gasket.
