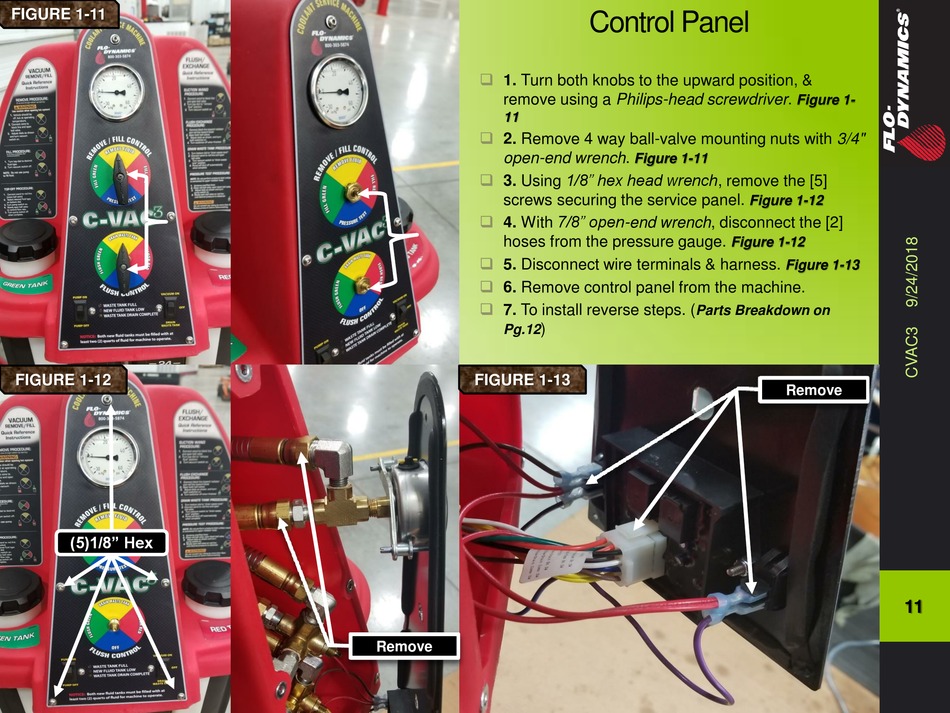

Control Panel R & R - FLO-DYNAMICS C-VAC3 Complete Service & Maintenance Manual

FIGURE 1-11
FIGURE 1-12
(5)1/8" Hex

1. Turn both knobs to the upward position, &
remove using a Philips-head screwdriver.
11

2. Remove 4 way ball-valve mounting nuts with 3/4"
open-end wrench.
 3. Using 1/8" hex head wrench, remove the [5]
screws securing the service panel.
 4. With 7/8" open-end wrench, disconnect the [2]
hoses from the pressure gauge.

5. Disconnect wire terminals & harness.

6. Remove control panel from the machine.

7. To install reverse steps. (
)
Pg.12
FIGURE 1-13
Remove
Control Panel
Figure 1-11
Figure 1-12
Figure 1-12
Parts Breakdown on
Figure 1-
Figure 1-13
Remove
11
