FLO-DYNAMICS C-VAC3 Complete Service & Maintenance Manual page 19

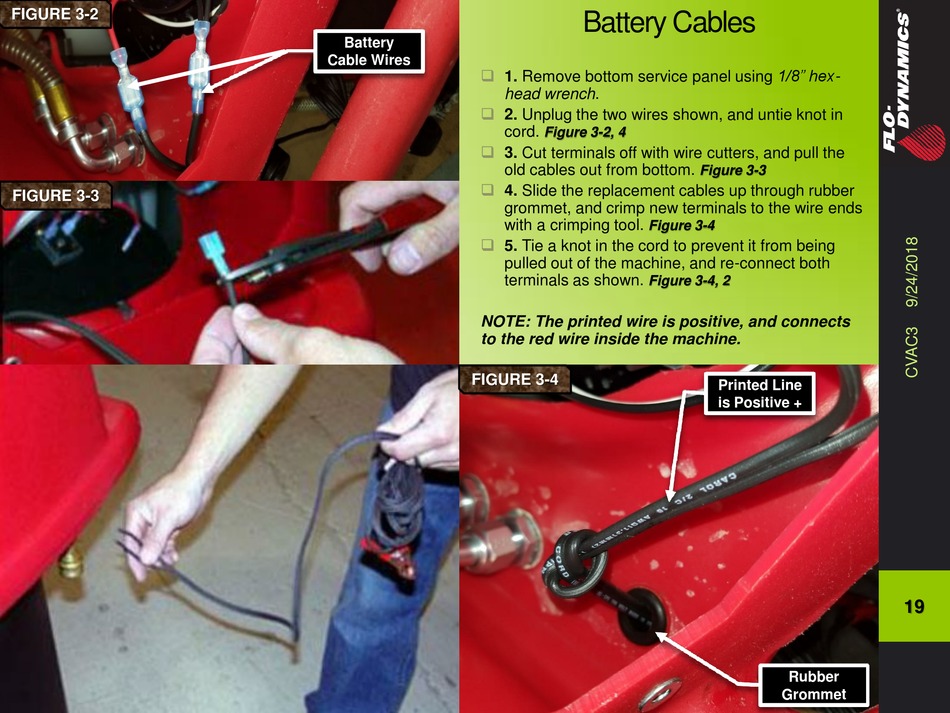

FIGURE 3-2
FIGURE 3-3
Battery
Cable Wires
 1. Remove bottom service panel using 1/8" hex-
head wrench.

2. Unplug the two wires shown, and untie knot in
cord.

3. Cut terminals off with wire cutters, and pull the
old cables out from bottom.

4. Slide the replacement cables up through rubber
grommet, and crimp new terminals to the wire ends
with a crimping tool.

5. Tie a knot in the cord to prevent it from being
pulled out of the machine, and re-connect both
terminals as shown.
NOTE: The printed wire is positive, and connects
to the red wire inside the machine.
FIGURE 3-4
Battery Cables
Figure 3-2, 4
Figure 3-3
Figure 3-4
Figure 3-4, 2
Printed Line
is Positive +
19
Rubber
Grommet
