FLO-DYNAMICS C-VAC3 Complete Service & Maintenance Manual page 10

FIGURE 1-9
FIGURE 1-10
(4)1/8" Hex
(4)1/8" Hex

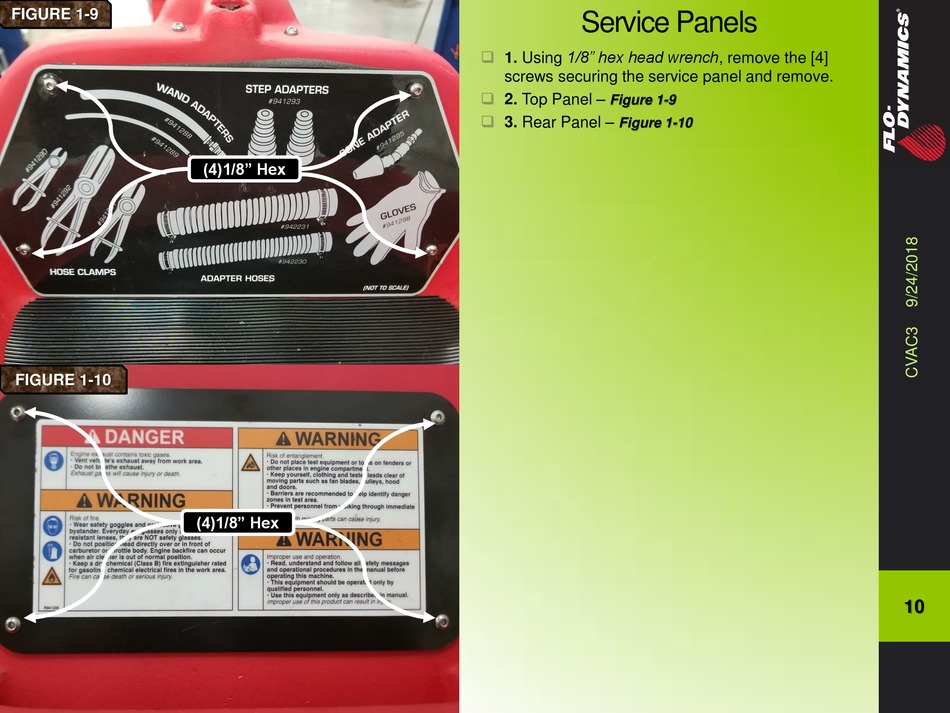

Service Panels
 1. Using 1/8" hex head wrench, remove the [4]
screws securing the service panel and remove.
 2. Top Panel –
Figure 1-9
 3. Rear Panel –
Figure 1-10
10
