SET COMMUNICATION:

This section defines the fundamental communication parameters of CANopen.
By Pressing the "Set Communication" button from the main window for SW67867 (Fig. 2)
the window "Set Communication" appears (Fig. 3).
The means of the fields for "IO-Link" are:
In the fields "Select Device" the type of IO-Link channels is defined;
The means of the fields for "CANopen" are:
In the field "Device ID" the ID of the CANopen side is defined;
In the field "Baud Rate" the data rate of the CANopen line is defined;
In the field "Set Operational State at
defined. I.e. If it is checked the board starts in Operational State, else it starts in Pre-
Operational;
In the field "Network Start at
defined. I.e. If it is checked the board sends a command to set the Operational State
of all the devices present in the network, after the time defined in the "Delay" field;
In the field "Delay (s)" the delay before sending the "Start" command for the
CANopen is defined;
In the field "SDO Client TimeOut (1/10
attends for the answer from the Slave interrogated is defined.
The means of the fields for the "Ethernet" section are:
In the fields "IP ADDRESS" the IP address of the converter is defined;
In the fields "SUBNET
In the fields "GATEWAY" the default gateway of the network is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for going
out of the net.
ADFweb.com Srl – IT31010 – Mareno – Treviso
Start-Up" the state of the CANopen is
Start-Up" the state of the CANopen network is
ms)" the maximum time that the device
Mask" the SubNet Mask of the converter is defined;
User Manual IO-Link / CANopen
Document code: MN67867_ENG Revision 1.000

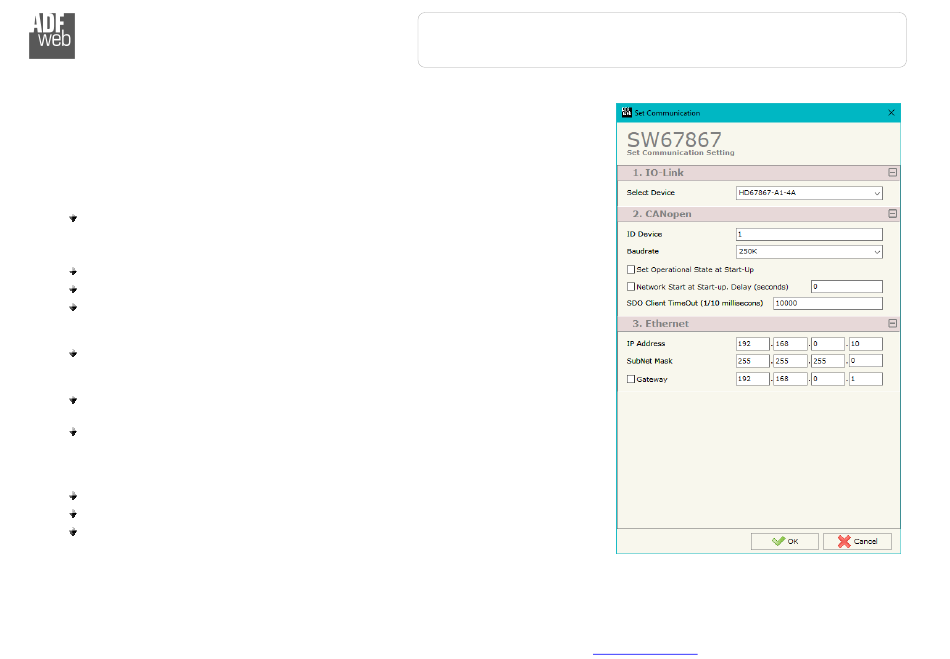

Figure 3: "Set Communication" window
