DESCRIPTION
Steel structure
Powder Coated
CONFORM
European norm
NF EN 1271
The time to make the assembly of this volleyball post is estimated for 1 person, at 35minutes. (without
filling the counterweights).
The equipment has to be regularly maintained by the owner. It is recommended to:
- Check every week that all the bolts are correctly tightened.
- Fix paint defects if the unit has been damaged, using the adapted paint specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labour guarantee. Every claim regarding the condition of the delivered equipment
has to be done within the warranty period following receipt of the product.
The warranty will not apply to:
-
Any degradation during transport.
-
Any degradation due to poor maintenance.
-
Any degradation due to use differing from which the product was intended.
-
Any defect claimed after the end of the warranty period.
-
Any damage due to a faulty installation or assembly of the product.
ASSEMBLY INSTRUCTIONS
VOLLEYBALL MOBILE POSTS,
TENSION BY CAPSTAN
PRODUCT REF
Note: We recommend that the distance between two
pillars should not exceed 9.5m
ASSEMBLY TIME
MAINTENANCE
WARRANTY
S30052
:
PAIR
Advertisement
Related Manuals for Sodex Sport S30052
Summary of Contents for Sodex Sport S30052

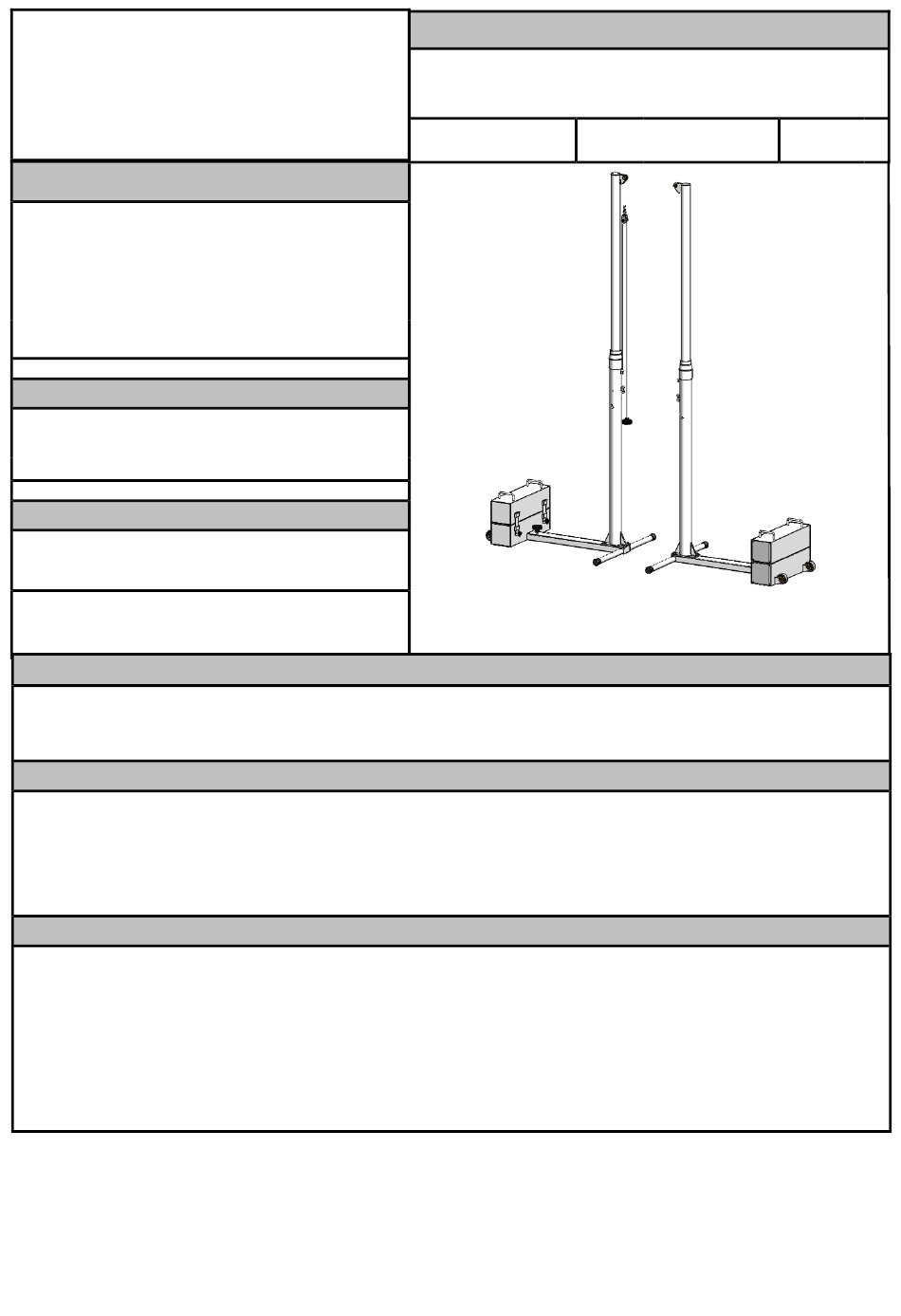

- Page 1 ASSEMBLY INSTRUCTIONS VOLLEYBALL MOBILE POSTS, TENSION BY CAPSTAN S30052 PAIR PRODUCT REF DESCRIPTION Steel structure Powder Coated CONFORM European norm NF EN 1271 Note: We recommend that the distance between two pillars should not exceed 9.5m ASSEMBLY TIME The time to make the assembly of this volleyball post is estimated for 1 person, at 35minutes. (without filling the counterweights).
- Page 2 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Phillips Screwdriver INCLUDED ITEMS GUIDING TO SAND (x2) STEP 1: STEP 2: Open the caps and fill sand into the counterweight Close the caps SS Screws M5x10 NECESSARY ITEMS...
- Page 3 ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Allen’s key 5mm Wrench 17 INCLUDED ITEMS 1- ASSEMBLAGE OF BASE AND COUNTERWEIGHT WITH WHEELS (x2) Counterweight with wheels Turn-knob M10x15 Base NECESSARY ITEMS...
- Page 4 ASSEMBLY 2- ASSEMBLAGE OF SECOND COUNTERWEIGHT (x2) STEP 1 STEP 2 Turn-knob M8x20 NECESSARY ITEMS...
- Page 5 ASSEMBLY 3- ASSEMBLY OF THE PULLEY SUPPORTS (x2) SS Round head screws M8x15 Repeat this step on the second post NECESSARY ITEMS 4– ASSEMBLY OF THE PULLEYS (x2) Pulley SS Screws M10x35 + SS Washers 10 + SS Lock nuts M10 Repeat this step on the second post NECESSARY ITEMS...
- Page 6 ASSEMBLY 5- ASSEMBLAGE COUNTERWEIGHT ON POST AND THE PULLYES (x2) Upper part of post SS Screws M10x35 + SS Washers M10 Lower part of post Do the same with the other post NECESSARY ITEMS...
- Page 7 ASSEMBLY 6– NET TENSION STEP 2 STEP 1 Fix the net cord to the S hook Fix the net cord to the U hook Turn-knob M10 Adjust the height of net by taking the PVC turn-knob and pull it downwards. When the net is at the right height, roll the cord around the hook (at least 4 times) to block it NECESSARY ITEMS...
- Page 8 PACKING LIST VOLLEYBALL MOBILE POSTS, TENSION BY CAPSTAN PRODUCT REF S30052 Index J PAIR NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing Method N° (kg) (mm) 2 Upper parts Plastic buble + S30052-011 2 + 2 1530x200x180 2 Lower parts...
-
Page 9: Packing List
PACKING LIST VOLLEYBALL MOBILE POSTS, TENSION BY CAPSTAN PRODUCT REF S30052 Index J PAIR ACCESSORIES IN CLEAR PVC BAG 2 Package Designation Description Note N° Assembled on PULYN30 Alu pulley D30 support pulley BITH1035 + SS Screw M10x35 + Assembled on...
