DESCRIPTION
Steel structure
Powder coated
CONFORM
European standard
NF EN 1270
The assemblage time of the basketball goal is estimated at 120 minutes, with 3 persons (without sealing).
According to the regulation, for the first installation the goal must be tested like below :
Put a vertical and static charge of 320 kg, at the junction between the backboard and the ring, during 1 minute.
After these tests, the equipment and the fixation system should not have break, move or show residual deformation.
During the first installation, this stability and solidity test is compulsory.
Every time that the equipment is assembled, a visual check of the stability and solidity must be realized.
The owner must regularly check the condition of the product.
For an optimal use of our products, we advise to follow the installation and maintenance instructions.
The equipement has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufacturer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labor guarantee. Every claim regarding condition of the delivered equipment has to be done
within the legal period of the reception of the material. The warranty will not apply to:
-
all degradation during the transport.
-
all degradation due to use differing from which was intended.
-
all degradation due to poor maintenance.
-
any defect claimed after the end of the legal period.
-
any damaged due to a faulty installation and assembly of the module.
MOBILE AND FOLDABLE BASKET-
PRODUCT REF
ASSEMBLY TIME
TEST AFTER INSTALLATION
MAINTENANCE
WARRANTY
ASSEMBLY INSTRUCTION
BALL GOAL 3.25M
S14650
UNIT
1 1
Advertisement
Related Manuals for Sodex Sport S14650
Summary of Contents for Sodex Sport S14650

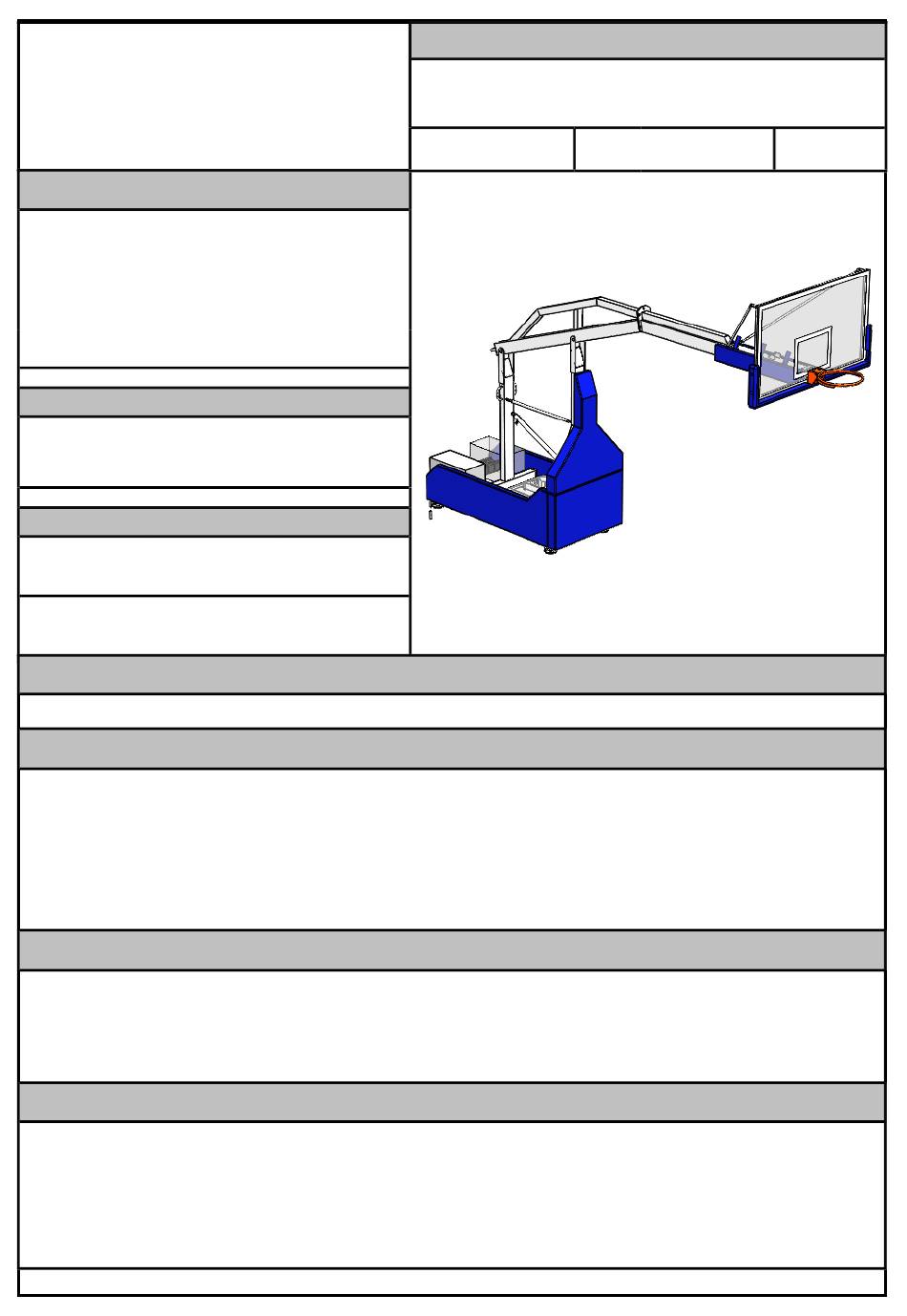

- Page 1 ASSEMBLY INSTRUCTION MOBILE AND FOLDABLE BASKET- BALL GOAL 3.25M S14650 UNIT PRODUCT REF DESCRIPTION Steel structure Powder coated CONFORM European standard NF EN 1270 ASSEMBLY TIME The assemblage time of the basketball goal is estimated at 120 minutes, with 3 persons (without sealing).
- Page 2 OPTION 1: GROUND FIXATION AND SAFETY COUNTERWEIGHTS 200 kg counterweight Ground fixations OPTION 2: AUTOSTABLE 700 kg counterweight No ground fixations ...
-
Page 3: Included Items
OPTION 1: GROUND FIXATION AND Do not deploy the goal before having fixed the SAFETY COUNTERWEIGHTS product to the ground. NECESSARY TOOLS (NOT INCLUDED) INCLUDED ITEMS Wrench 13 Screws BC M8x20 Counterweight Washers BC 8 Lock nuts BC M8 1a—Positionning the counterweights Counterweight cover Screws BC M8x20 + Washer BC M8 +... - Page 4 Do not deploy the goal OPTION 1: GROUND FIXATION AND before having fixed the SAFETY COUNTERWEIGHTS product to the ground. NECESSARY TOOLS (NOT INCLUDED) INCLUDED ITEMS Ground anchor M16 Concrete drill D25mm Drill Mallet Court line 2a—Location of the sockets: Ground anchor n °...
- Page 5 Do not deploy the goal OPTION 1: GROUND FIXATION AND before having fixed the SAFETY COUNTERWEIGHTS product to the ground. NECESSARY TOOLS (NOT INCLUDED) INCLUDED ITEMS Bolts M16x300 Wrench 24 Lock nuts BC M16 Washer BC M16 Rubber 3a—Installation of the sockets: Bolt M16x300 + Washer BC M16 + Lock nut BC M16...
- Page 6 MOTION AND ADJUSMENT OF THE GOAL NECESSARY TOOLS (NOT INCLUDED) INCLUDED ITEMS Adjustment of the feet height Rotate the foot to adjust the height: Put it up when you want to move the goal. Bring it down when the goal is in play position. This adjustment makes it possible to precisely adjust the height and the stability (see last step of the notice).
-
Page 7: Necessary Items
ASSEMBLY NECESSARY TOOLS (NOT INCLUDED) Wrench 30mm Wrench 19mm Wrench 17mm Allen key 6mm Water ruler Screwdriver INCLUDED ITEMS 1– ASSEMBLY OF THE HORIZONTAL POST Note: The counterweights are hidden on the next steps, for a better visibility. Screw BC M18x40 + Washer 18 Screw BC M12x40 + Lock nut M18... - Page 8 ASSEMBLY 2– ASSEMBLY OF THE BACKBOARD Screw BC M10x30 + Washer BC 10 NECESSARY ITEMS 3– ASSEMBLY OF THE REINFORCED BARS Screws BC M10x30 + Washers BC 10 + Lock nuts BC M10 Note: You can slightly rotate the heads of the reinforcing bars to adjust their length.
- Page 9 ASSEMBLY 4– ASSEMBLY OF THE RING AND THE BACKBOARD Step 1 Remove the ring cover Step 2 Screws BC M12x80+ Washers BC 12 + Lock nuts BC M12 Step 3 Fix the ring cover NECESSARY ITEMS...
- Page 10 ASSEMBLY 5a– SETTING IN POSITION - ADJUSTMENT TENSION OF SPRINGS Nuts M20 Note: The springs have been relaxed before transport. To allow easier positioning, you need to tension these springs, tightening the nuts shown above with a 30mm wrench. The optimal tightening of the nut depends on each model. We recommend to set a distance of 30mm between the nut and the end of the threaded axle, but it can vary a bit.
- Page 11 ASSEMBLY 5b– LIFT UP THE POST Do not push up the basketball goal until it is fixed to the ground or the counterweights are in position. It is mandatory that at least 2 people manage the rising of the product, to insure the safety. We recommend that one person takes care of the pinlock system, while the other one han- dles to control the rising of the product thanks to the handle.
- Page 12 ASSEMBLY 5c– ASSEMBLY OF THE MAIN POST Fix the crossbar of feet support with the latch, turn the crossbar to be tightened Assembly of pin and lock (not provided) NECESSARY ITEMS...
- Page 13 ASSEMBLY 6a– ASSEMBLY OF THE PROTECTION PAD Round head screws BC M8x50 + Lock Nuts BC M8 NECESSARY ITEMS...
- Page 14 ASSEMBLY 6b– ASSEMBLY OF THE PROTECTION PAD Install the protection pad on the frame, fixed by a velcro tape NECESSARY ITEMS...
- Page 15 ASSEMBLY 6c– ASSEMBLY OF THE PROTECTION PAD Protection pad Install the protection pad on the base frame, fixed by a velcro tape Repeat this step on the other side. NECESSARY ITEMS...
- Page 16 ASSEMBLY 6d– ASSEMBLY OF THE PROTECTION PAD Install the protection pad on the upper part, fixed by a vel- cro tape NECESSARY ITEMS...
- Page 17 OPTION 7– ASSEMBLY OF 24S SCORE BOARD 24s Shot clock 24s Score board support Screws BC M10x25 + Washers 10 The necessary accessories to fix the backboard are provided with the backboard itself. Thanks to refer to its notice of assembly to know how to install it (both for fixation and electric installation).
- Page 18 ASSEMBLY 8– ADJUST THE POSITON OF THE GOAL Position the goal according to Court backline the scheme below: 2050 1200 Court middle line NB: All the dimensions are in millimeters. 9– ADJUST THE HEIGHT AND THE STABILITY Rotate the foot to adjust the height and the stability...
- Page 19 PACKING LIST MOBILE AND FOLDABLE BASKETBALL GOAL 3.25M PRODUCT REF S14650 Index F UNIT NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing method (kg) (mm) Base frame + Front feet Reinforced S14650-01 frame + back feet frame + 3620x1400x1050...
-
Page 20: Packing List
PACKING LIST MOBILE AND FOLDABLE BASKETBALL GOAL 3.25M PRODUCT REF S14650 Index F UNIT ACCESSORIES PUT IN CLEAR PVC BAG Package Designation Description Note N° BTBH1840 + Screw M18x40 + LTBA183525 + Washer BC 18 + 3 + 6 + 3... - Page 21 PACKING LIST MOBILE AND FOLDABLE BASKETBALL GOAL 3.25M PRODUCT REF S14650 Index F UNIT PRE-ASSEMBLED ACCESSORIES Package Designation Description Note N° BTBH1040 + Screws BC M10x40 + LTBA102310 + Washers BC 10 + 1 + 2 + 1 TTBD10 Lock nuts M10...
