DESCRIPTION
Structure en alu D90
Plastifié
CONFORM
European standard
NF EN 1271
The time to make the assembly of this volleyball posts is estimated for 2 persons, at 30minutes. (without sealing).
The equipement has to be regularly maintained by the owner. It is adviced to:
- Check every week that all the screws are correctly tightened
- Fix paint defects if the module has been damaged, using the adapted paint, specified by the manufactu-
rer.
- Replace all damaged or missing parts with a spare part recommended by the manufacturer.
- Clean the product by using dishwasher soap, clean water, and soft cloth.
One full year parts and labor guarantee. Every claim regarding the condition of the delivered equipment has to be
done within the legal period,of the reception of the material.
The warranty will not apply to:
-
All degradation during the transport.
-
All degradation due to poor maintenance.
-
All degradation due to use differing from which was intended
-
Any defect claimed after the end of the legal period.
-
Any damage due to a faulty installation or assembly of the module
Assembly INSTRUCTIONS

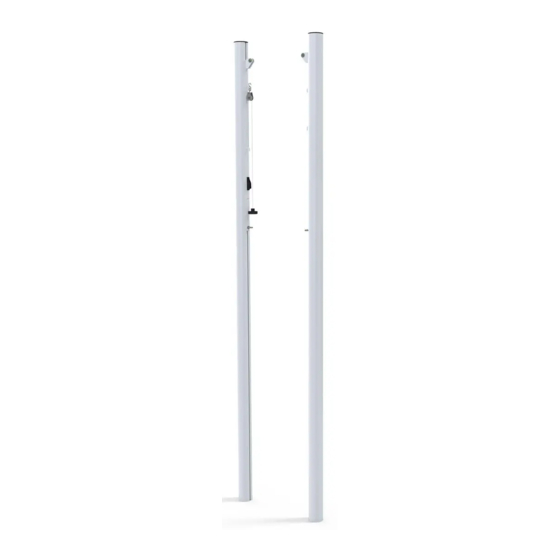

VOLLEYBALL POSTS, TO SEAL, D90,
CAPSTAN TENSION
PRODUCT
REF:
ASSEMBLY TIME
MAINTENANCE
WARRANTY
S30158
PAIR
1 1
Advertisement
Table of Contents
Related Manuals for Sodex Sport S30158
Summary of Contents for Sodex Sport S30158

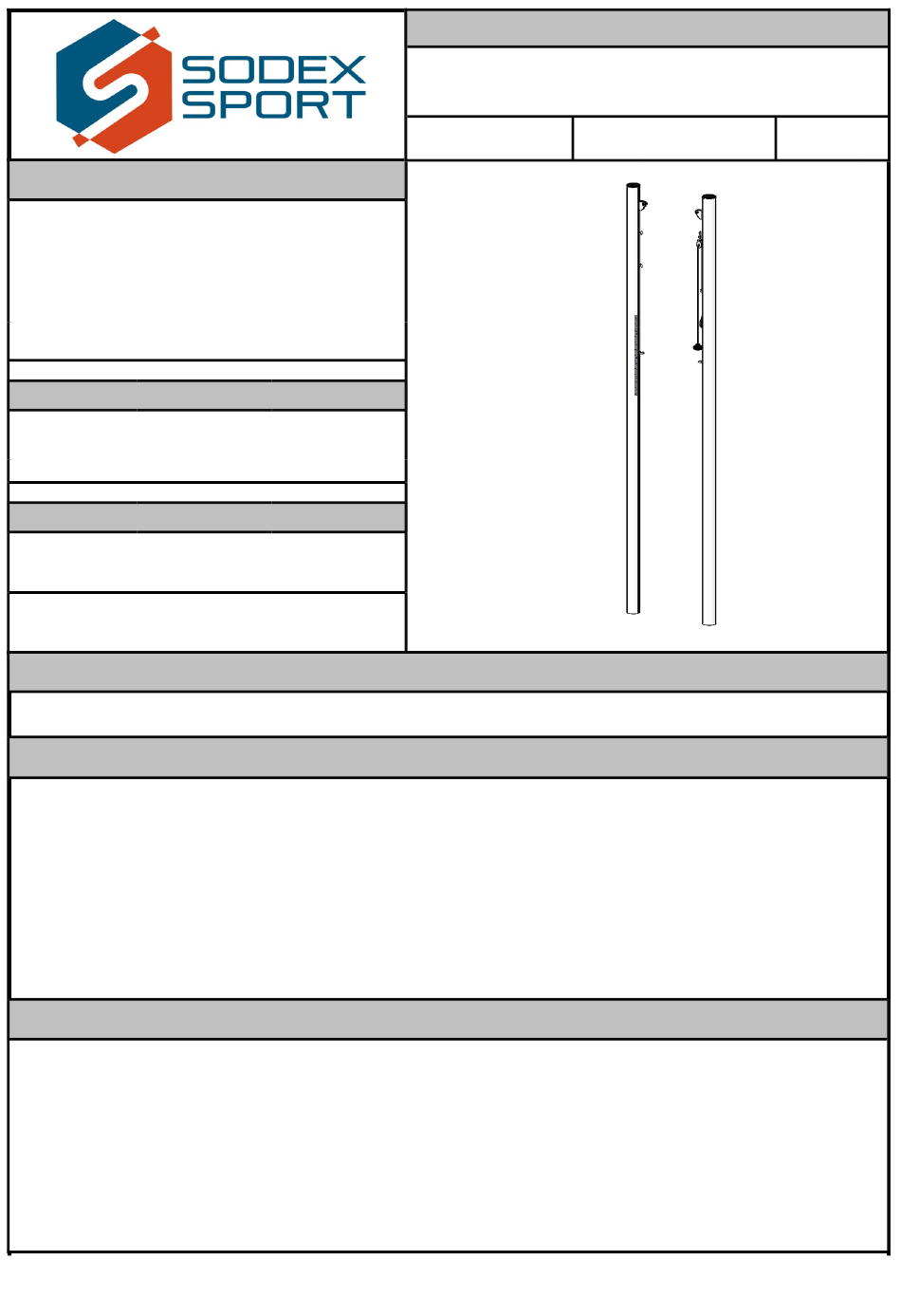

- Page 1 ASSEMBLY INSTRUCTIONS VOLLEYBALL POSTS, TO SEAL, D90, CAPSTAN TENSION S30158 PAIR PRODUCT REF: DETAILS SODEX INTERNATIONAL 18 rue de l’avenir – Bât. 224 14650 CARPIQUET Tel: + 33 (0) 2.31.53.78.70 Email: karine.chaigneau@sodexinternational.com DESCRIPTION Structure en alu D90 Plastifié CONFORM European standard...
- Page 2 IMPLANTATION AND SEALING (FOR INDOOR AND OUTDOOR VOLLEYBALL) Pitch axis Socket positions Sealing The posts need to have a minimum spacing of 10m and maximum 11m. We advice 11m. However, check carefully the length of the cable of your net before defining the spacing between the posts.
- Page 3 IMPLANTATION AND SEALING (FOR BEACH VOLLEY) The distance between the center of the posts must be between 9.5m and 10.1m. We recommend 9.6m. Nevertheless, please check the length of the cable before setting the anchorages. Dig two holes (1 per baseframe) with a depth of 500mm, a length of 1200mm and a width of 800mm, according to the opposite drawing.
- Page 4 ASSEMBLY ASSEMBLY NECESSARY TOOLS (NON INCLUDED) Wrench 17mm ELEMENTS FOURNIS 1– ASSEMBLY OF PULLEYS (X2) Pulley SS Screw M10x30 + SS washers M10 + SS locknut M10 Tighten the assembly softly to allow a good rotation of the pulley. NECESSARY ITEMS...
- Page 5 ASSEMBLY 2 - ASSEMBLY OF SLIDING BARS SLIDING BAR WITHOUT CAPSTAN SLIDING BAR WITH CAPSTAN Assemble the sliding Assemble the sliding bar by the bottom of bar by the bottom of the post the post Sliding bar Sliding bar Bracket Bracket Turning ring M8 Turning ring M8...
- Page 6 ASSEMBLY 3– NET HEIGHT SETTING Line Graduated sticker Turning ring M8 Make sure that the height at the middle of the net once this one is tensioned is 2.43m for a men’s competition (2.24m for women’s competition). It is advised to adjust the height at the end of the net 2cm higher than the one desired in the middle.
- Page 7 ASSEMBLY 4– NET TENSION SLIDING BAR WITHOUT CAPSTAN SLIDING BAR WITH CAPSTAN Net wire Net wire Fix the wire on the ‘S’ hook Fix the wire on the ‘U’ hook Be careful to follow the following assembly sequence for the capstan : - Pass the wire through the clam cleat (opposite side of PVC handle) - Pass the wire through the pulley...
- Page 8 PACKING LIST ALUMINIUM VOLLEYBALL POST Ø90, CAPSTAN TENSION PRODUCT REF S30158 Index E PAIR NOMENCLATURE Package Weight Dim. Index Designation Description Quantity Packing method N° (kg) (mm) Plastic bubbles S30158 Post 1 + 1 + cardboard 5 3000x240x180 layers ACCESSORIES PUT IN A CLEAR PVC BAG...
