Baby Monitor
Secure875
User Guide
KEEP THIS USER GUIDE FOR FUTURE REFERENCE
Always retain your proof of purchase in case of warranty service.
www.oricom.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Secure875 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Oricom Secure875

  • Page 1 Baby Monitor Secure875 User Guide KEEP THIS USER GUIDE FOR FUTURE REFERENCE Always retain your proof of purchase in case of warranty service. www.oricom.com.au...
  • Page 2: Table Of Contents

    How to use the function tools ..........7 ExprESS WArrANTy ..........15 How to use the setup icon ............7 Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia 02 4574 8888 www.oricom.com.au Mon-Fri 8am –...
  • Page 3 • Never place the baby unit or parent unit inside your as it contains detailed information you will need to get baby’s cot, bed or playpen. the most from your Oricom baby monitor. If you have any • Never cover the parent or baby units with clothes, towels issues setting up or using your Oricom baby monitor, or blankets or any other item.
  • Page 4 • If you believe the battery is damaged, remove product from the charger and stop using the product. Contact Oricom for assistance. Never use a damaged battery.
  • Page 5: What's Included

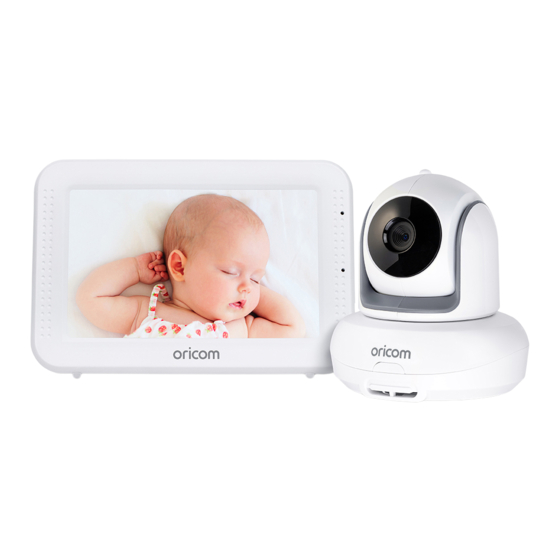

    WhAT’S INCLudEd 2 Package Contents The Secure875 comes with the following: Camera Unit Parent Unit User Manual Camera Unit Power Adaptor Parent Unit Power Adaptor Plastic anchor (1EA) & Screw (1EA) Check your package to confirm that you have received the complete system, including all components shown above.
  • Page 6: Getting Started

    How to purchase spare parts You can purchase batteries and extra camera units from DC IN 5V Oricom www.oricom.com.au Operating your baby monitor The basic operation is as follows: Warning: Only use the AC power adaptor supplied with...
  • Page 7 GETTING STArTEd 5. The display will show the camera slots, this includes Lost Link paired cameras and unused slots. You can remove If the camera and monitor are not paired or paired cameras or add a camera to an unused slot. if the parent unit is outside of transmission When you select the slot, you will be prompted to press range with the paired camera, the “Lost Link”...
  • Page 8: Viewing Mode Display

    VIEWING MOdE dISpLAy 4 Indicator Description x1/x1.5/x2 Zoom mode Indicates the zoom status of the viewed camera. How to use the indicator Press [ ] icon on the parent unit to zoom back out. Night Vision Indicator Indicates night vision is activated on the viewed camera.
  • Page 9: Menu Operation

    VIEWING MOdE dISpLAy 5 Menu Operation Zoom In / Zoom Out Select to digitally Zoom in and out, Zoom icon will show [ ] when in x1 and x1.5 Zoom, Zoom out icon How to use the function tools will show [ ] when in x2 Zoom. Touch the screen of the parent unit to display the menu screen.
  • Page 10 VIEWING MOdE dISpLAy Set Camera Speaker Volume • Low Sound Level Detection: Soft baby cry level can trigger screen on for 30 seconds, then back to Adjust the volume of the speaker on the camera in stand-by. this menu. The volume can be adjusted from 0 to 5, • High Sound Level Detection: Loud baby cry level with 5 being the loudest setting and 0 is mute.
  • Page 11: Getting To Know Your Baby Monitor

    OVErVIEW 6 Getting to Know Your Baby Monitor Back Controls Parent Unit After opening the box, fully charge the parent unit before use. After initial charge, recharge as required. Front Controls 4 Rear Cover 5 Antenna 6 Battery Cover 7 StandDeco 8 Stand 9 Rear screw Caps 1 Front Cover 2 Button 3 Rubber Feet...
  • Page 12: Camera Unit

    OVErVIEW Camera Unit 5 Middle Cover 6 Night light, push to turn on / off Front & Back Controls 7 Antenna 8 Power Switch 9 Bottom Cover 10 CDS Sensor Side & Bottom Controls PAIR 1 Top Cover DC IN 5V 2 Deco part 3 Camera Cover 11 Rubber Feet...
  • Page 13: How To Install

    OVErVIEW 7 How to Install STRANGULATION HAZARD - Keep cord out of child's reach. NEVER place camera or cords within 1 meter of cot or playpen. Never use extension cords with AC Adaptors. CAUTION: keep out of reach of children. Only use the AC Adaptors provided. Parent Unit 1.
  • Page 14: Specifications

    SpECIFICATIONS 8 Specifications Parent Unit Display Type/Size Colour TFT 5” Resolution 800X480 Item Details Digital Zoom x1, x1.5, x2 System General Feed Timer Alert Yes (beep sound) Operating Frequency Range 2400 MHz~2483.5 MHz Number of Camera Support Up to 4 cameras Type of Spread Spectrum TX FHSS Power Requirement Adaptor : DC 5V ±...
  • Page 15: Troubleshooting

    TrOuBLEShOOTING 9 Troubleshooting No sounds (even 1. Make sure that the power adaptor is with both units connected to the camera. turned on) 2. The battery on the parent unit may Problem Solution need charging, be sure to charge it using the adaptor included.
  • Page 16 Oricom warrants that the product is free from defects in (30) days or for the remainder of the Express Warranty materials or workmanship during the Express Warranty Period of the Oricom branded product in which they are Period. This Express Warranty does not extend to any...
  • Page 17: Express Warranty

    Products that are authorised to be returned to Oricom in Australia must 2. wilful misconduct or deliberate misuse by you of the include all of the following: product;...
  • Page 18 ExprESS WArrANTy Important Information Repair Notice Please be aware that the repair of your goods may result in the loss of any user-generated data (such as stored telephone numbers, text messages and contact information). Please ensure that you have made a copy of any data saved on your goods before sending for repair.
  • Page 20 TEMPLATE Screw holes for This template is used to the Camera install the camera on the wall. installation CAMERA FRONT...
  • Page 21 Oricom have a trained and dedicated team of Customer Support Representatives, each with the knowledge and resources to assist in answering your questions quickly and efficiently. Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. 02 4574 8888 Monday - Friday 8am –...
