Rack Requirements
This section provides information on the space requirements for the rack which will
house the Cloud Pak for Data System Components.
Rack Space
Ensure that the rack in which you plan to install the system meets the space

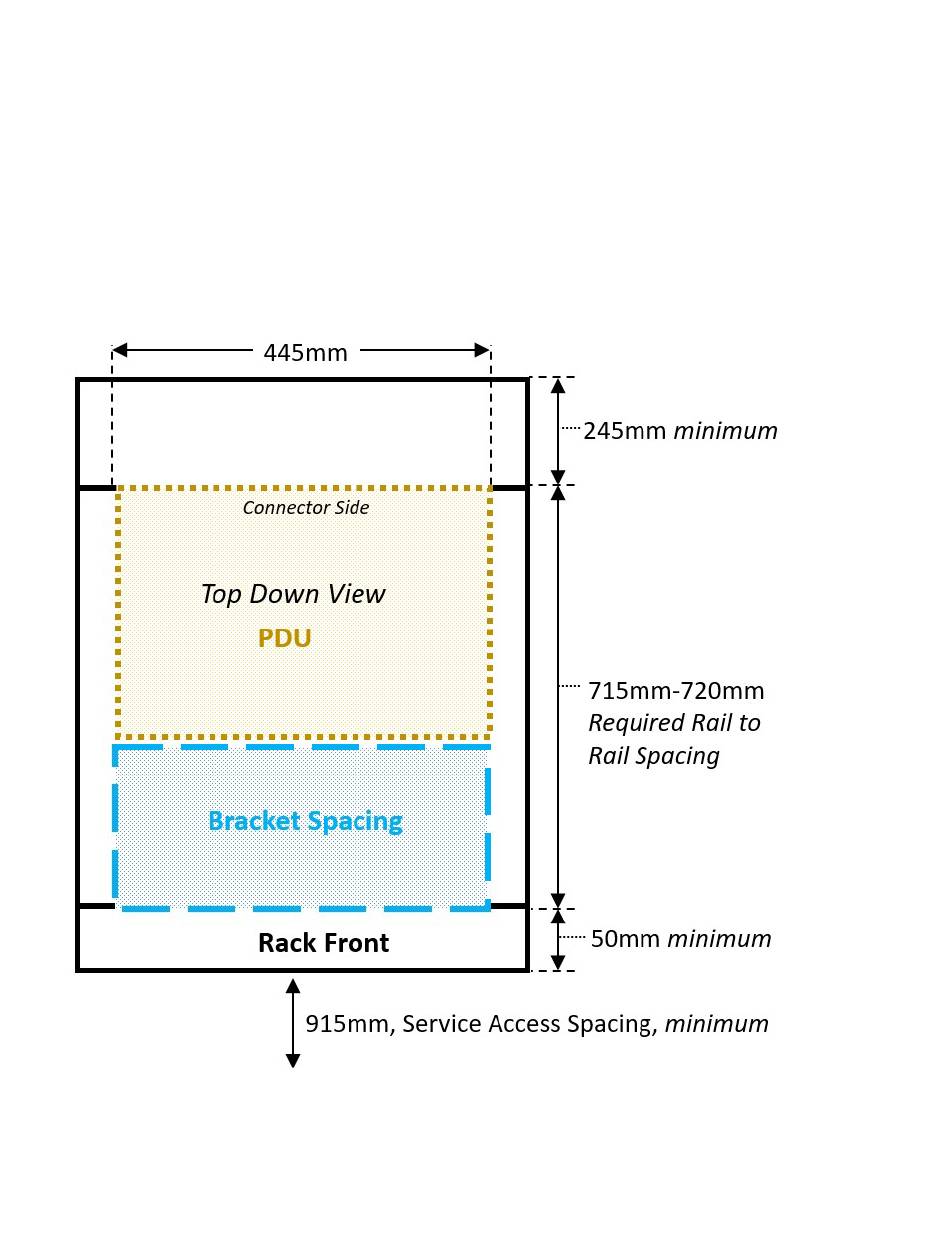

requirements outlined in Figure 6:
Figure 6: Top down view of installed PDU with 4-point horizontal mounting
Location in the Rack
The base IBM Cloud Pak for Data System consists of four main components (1G
switch, 25G switch, two compute chassis) that are designed to be integrated in the
same rack with PDUs. The recommended component placement is shown in Figure 7
© Copyright IBM Corporation 2020.
Customer Install Guide, PDU
27
