An example of button functions available in menu mode is shown below.
For the sake of simplicity, the return to the next higher menu and directly to display mode
will not be shown anymore.
6.1.5 Setting values
There are two types of values that can be altered:
− values that can be selected from a predefined parameter list
− numerical values
Selecting a value from a parameter list
Parameter lists – for example, the units list – behave like a menu. You can scroll through
the list in both directions with the arrow buttons. Each list contains the "-rEt-" item, which
allows you to return to the next higher menu level.
The middle button stores your selection. "Stor" appears on the display to confirm that the
value has been stored, and the device returns to the higher level menu item.
You can cancel the selection by pressing both arrow buttons at the same time. The device
will then switch back to the corresponding menu entry. The selected value will not be
saved.
The figure below depicts the button functions in a parameter list. E.g. if you are in the
parameter list for the unit, you can scroll thru the available units with the arrow buttons.
With the middle button you store the displayed unit. "Stor" appears on the display to
confirm that the changed unit has been stored and the device switches back to the menu
item for selecting the measuring unit (unit).
BTA 060, Rev 1K1

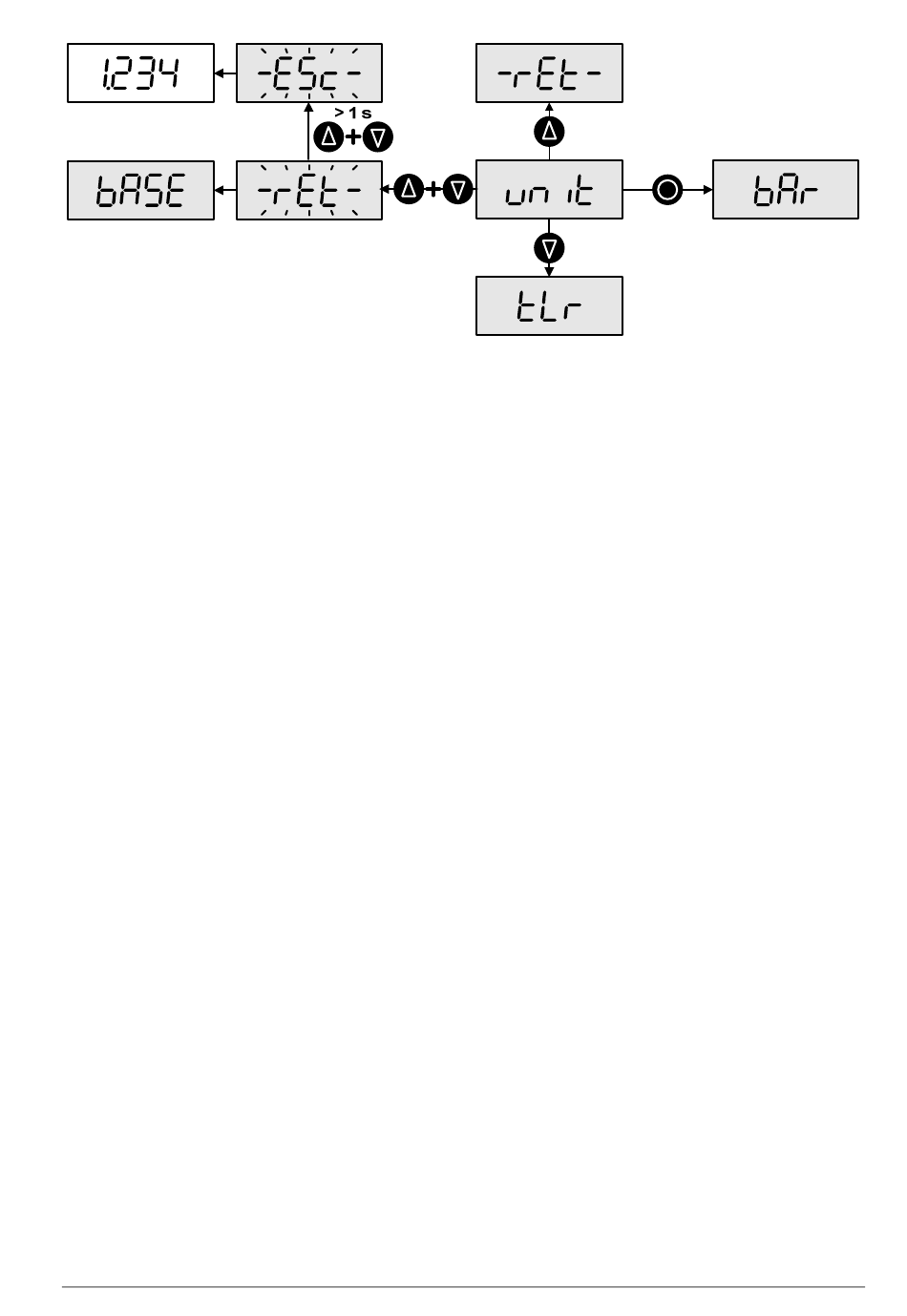

Figure 7: Button functions in menu mode (example)
