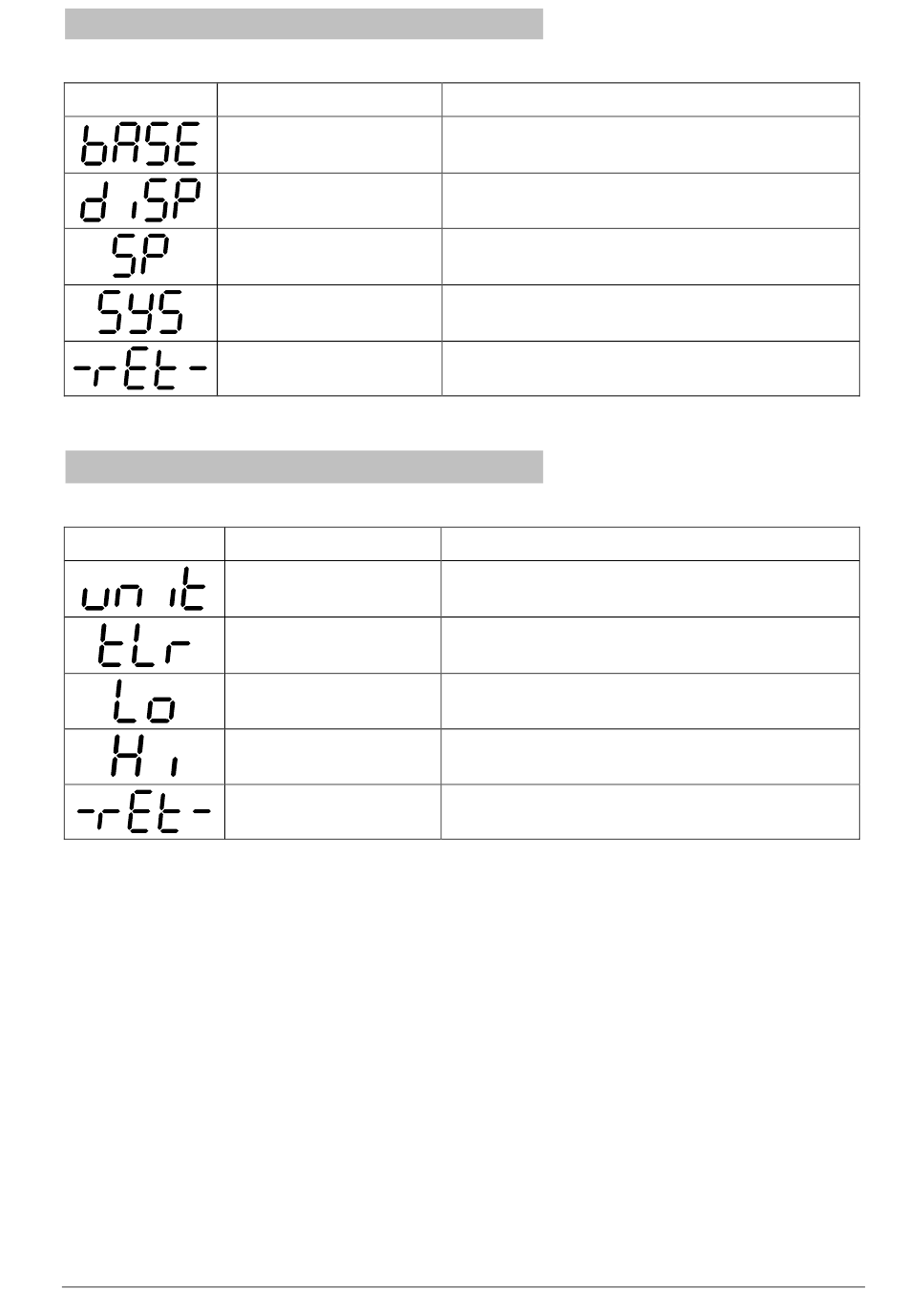

6.2 Main menu

The main menu contains the following functions:
Display Designation
Basic functions
Display functions
Switch point settings
System data
Return

6.3 Basic menu (bASE)

The basic menu contains the following items:
Display Designation
Measuring unit
Set zero point
(Teach lower range)
Min. pointer (low)
Max. pointer (high)
Return
BTA 060, Rev 1K1
Description
Setting the unit, setting the zero point,
min./max. pointer
All settings relating to the display
Configuration of the switching outputs
(optional)
Displaying system data (versions, serial
number); reset to factory settings
Return to display mode
Table 3: The items in the main menu
Description
Setting the measuring unit via a parameter
list
Setting the applied pressure as zero point
(0 bar)
Display resp. delete the min. pointer
Display resp. delete the max. pointer
Return to the main menu
Table 4: The items in the basic menu
