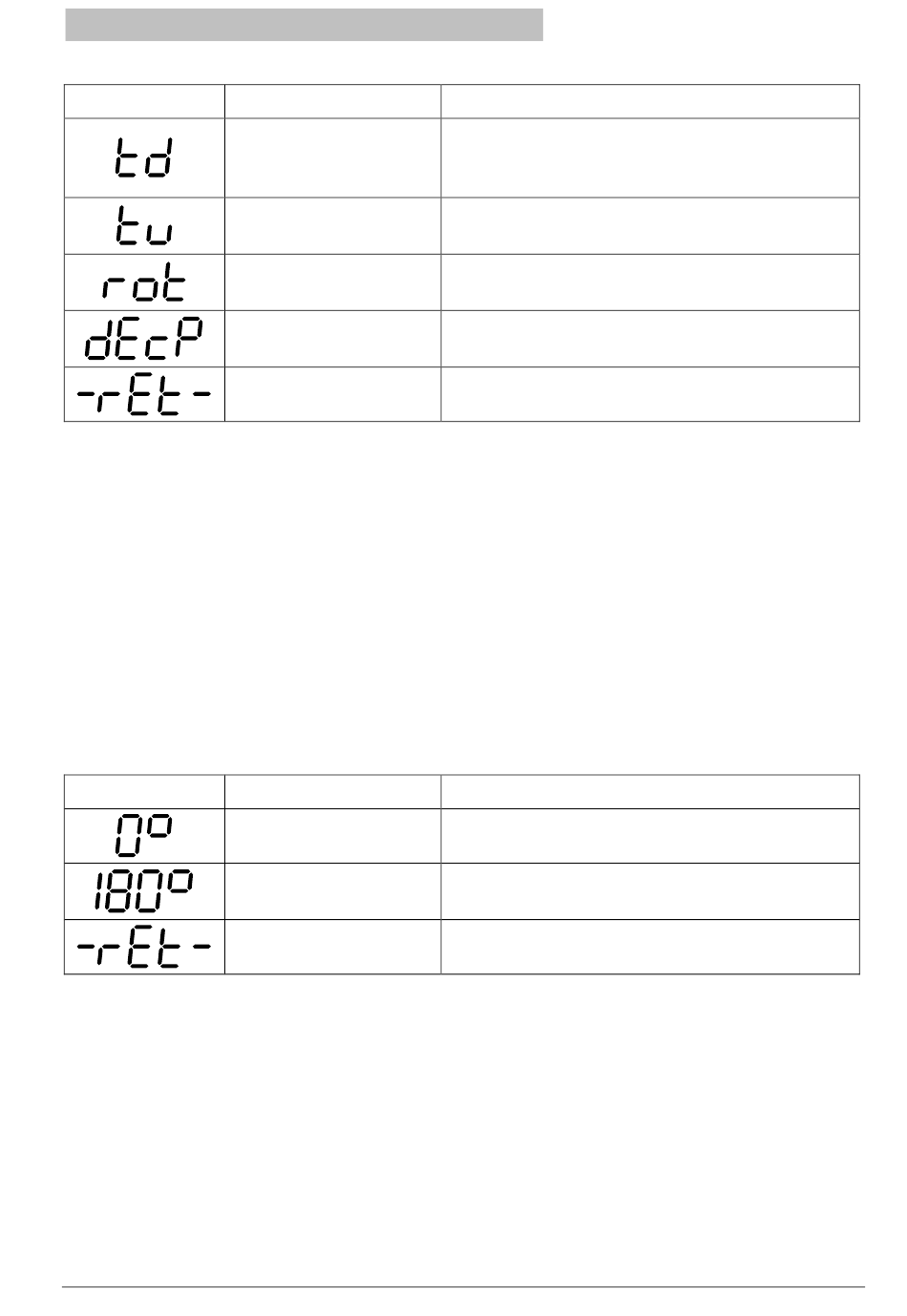

6.4 Display menu (diSP)

The display menu for configuring the display contains the following items:
Display Designation
Display period for
measured value (time
data)
Display period for unit
(time unit)
Rotate 180°
Decimal places
Return
6.4.1 Display period for measured value/unit (td / tu)
The unit can be displayed in two ways, either by pressing the middle button in display
mode or alternately with the measured value. When displayed alternately with the
measured value the display periods for the measured value and the unit can be selected
independently of one another.
If the period for displaying the unit is set to zero, only the measured value will be
displayed.
6.4.2 Rotating the display by 180° ( rot)
You can rotate the 7-segment display by 180° , so th at it can be read when the device is
put in place upside down. The function for the arrow buttons are also swapped in this
case, so that the device can be operated the same way in either position.
Display Designation
Standard (0° )
Upside down (180° )
Return
BTA 060, Rev 1K1
Description
Can be set between 0.5 and 99.9 s
Can be set between 0.0 and 99.9 s
Rotate screen by 180° when the device i s
installed upside down
Setting the decimal places (zero to three
fixed decimal places or automatic)
Return to "diSP"
Table 8: The items in the display menu
Description
Display rotated 180° for upside down
operation
Return to "rot"
Table 9: Parameter list for rotating the display
Page 13/18
