Summary of Contents for Cypress MB2198-01

  • Page 1 The following document contains information on Cypress products. The document has the series name, product name, and ordering part numbering with the prefix “MB”. However, Cypress will offer these products to new and existing customers with the series name, product name, and ordering part number with the prefix “CY”.
  • Page 2 MC-16FX Family, Emulator System MB2198-01 Installation Guide Doc. No. 002-05547 Rev. *A Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 http://www.cypress.com...
  • Page 3 Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress.

  • Page 4: Table Of Contents

    The BGA416 MCU emulator system then looks like in the picture below: ..........12 3.1.10 DIP switches on the Target System (e. g. FLASH-CAN-100P-340) ............12 3.1.11 Connect the MB2198-01 Emulator to a PC or a LAN network ..............12 3.1.12 Power connection ........................... 12 3.1.13 Power down ............................
  • Page 5 Contents Appendix A ................................. 19 Table of Emulation System Configuration and supported Starterkits ..............19 Revision History ................................... 20 Document Revision History ............................20 F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 6: Introduction

    1. Introduction This installation guide will help you to quickly start setting up the MB2198-01 Emulation Hardware for Cypress 16FX Family MCUs and its usage with the Softune Workbench V30L33R08 or higher. For in-depth information please refer to the following manuals: ...

  • Page 7: Hardware Requirements

    The basic devices which are required for setting up the 16FX emulation system for 416-pin MB96V300 Evaluation MCU:  Emulator Main Unit MB2198-01  Adapter Board MB2198-500 BGA416 F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 8  RS232-, USB- or LAN-connection cable  Two Power supplies (12V DC) In addition to the emulator, ordered from Cypress, a customer should get the ‘Accessories 16’-kit that includes a set of manuals and some cables. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 9: Setting Up The Emulation System

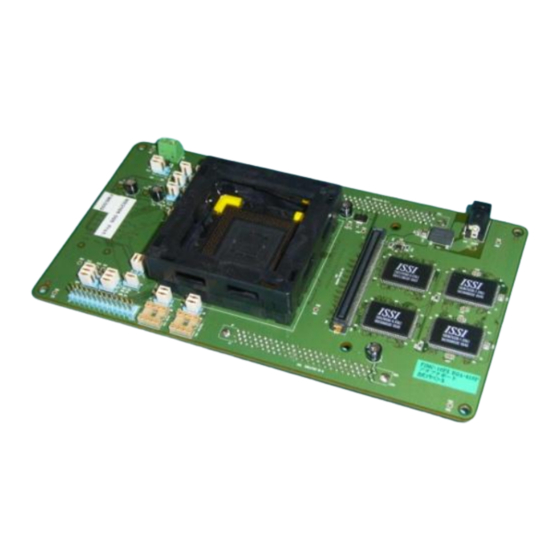

    3.1.1 Adapter Board MB2198-500 Figure 3-1. Clock installation The red arrow marks the crystal-area of the Main-Clock. The white arrow marks the crystal-area of the Sub-Clock. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 10: Main-Clock

    Please refer to the graphic above and to the Figure 3-1how to enable the Main-Clock. Table 3-1. Main-Clock Supply Clock Supply CLKSEL0 CLKSEL1 Main-Clock on adapter-board Main-Clock on target system : see Sub-Clock F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 11: Sub-Clock

    CONNECTOR A and B) on the back, which fit into the connectors of the Emulator MB2198-01. Pay attention that the small white triangles on the side of the connectors point together. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 12: Insert The Evaluation Chip

    In addition both the probe socket and the Board have small triangles which point to Pin 1. After inserting, use a small cross tip screwdriver to fix the four screws of the probe cable. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 13: The Bga416 Mcu Emulator System Then Looks Like In The Picture Below

    Contrariwise to the power-on connection, the power on the target system has to be switched off first during power-down. The emulator has to be switched off at last. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 14: Setting Up The Emulation Software

    Open the Softune Workbench. Then choose the Menu File/Open. The following window will pop up: Confirm Workspace/Project file with the OK button. Now choose the IO-Port-Workspace-File IOPort.wsp in the Open File Dialog Window. Then the Softune Workbench window will look like this: F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 15 The lower Window is the status and message window. Open the file Main.c by double clicking it in the left upper Window. The following c code will be displayed in the right upper window: F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 16 ------------------------------ Depending on your communication interface to the emulator, double click one of the following download methods in the upper left window:  MB2198-01_COM1.sup  MB2198-01_LAN.sup  MB2198-01_USB.sup F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 17 The LCD on the emulator should display: “EXEC Vol:OK [Enter]:Menu” To end debugging, choose Debug/End debug in the Softune Menu Bar. The emulator system will then halt. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 18: Troubleshooting

    Now a Setup Wizard starts. Let all entries in their default states, until the following window occurs: In this window, you can choose the COM2 port. Click Next> and finally Finish. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...

  • Page 19: Emulator Mb2198-01 Menu Settings

    Choose change in the popup window. Then a setup wizard for the LAN interface is started. Follow the next steps. When the following window is displayed, make sure that Monitor program auto-loading is selected: Follow the next steps and finally press Finish. F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 20 Table of Emulation System Configuration and supported Starterkits Flash-MCU Probe Cable Socket Starterkit MB96Fxxx NQPACK100RB 348xxA-PQC MB2198-501 FLASH-CAN-100P-340 HQPACK100RB NQPACK100SD-ND FLASH-CAN-100P-340 + 348xxA-PMC MB2198-502 HQPACK100SD ADA-91270-90340-100PFV NQPACK120SD 387xxA MB2198-16FX-120P-M21 SK-96380-120PMT HQPACK100SB F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
  • Page 21 Document Number: 002-05547 Revision Issue Date Origin of Description of Change Change 07/18/2006 MKEA Initial Release based on MB2147-01 installation 01/05/2016 MKEA Migrated Spansion Guide from MCU-AN-300209-E-V10 to Cypress format F2MC-16FX Family, Emulator System MB2198-01 Installation Guide, Doc. No. 002-05547 Rev. *A...
