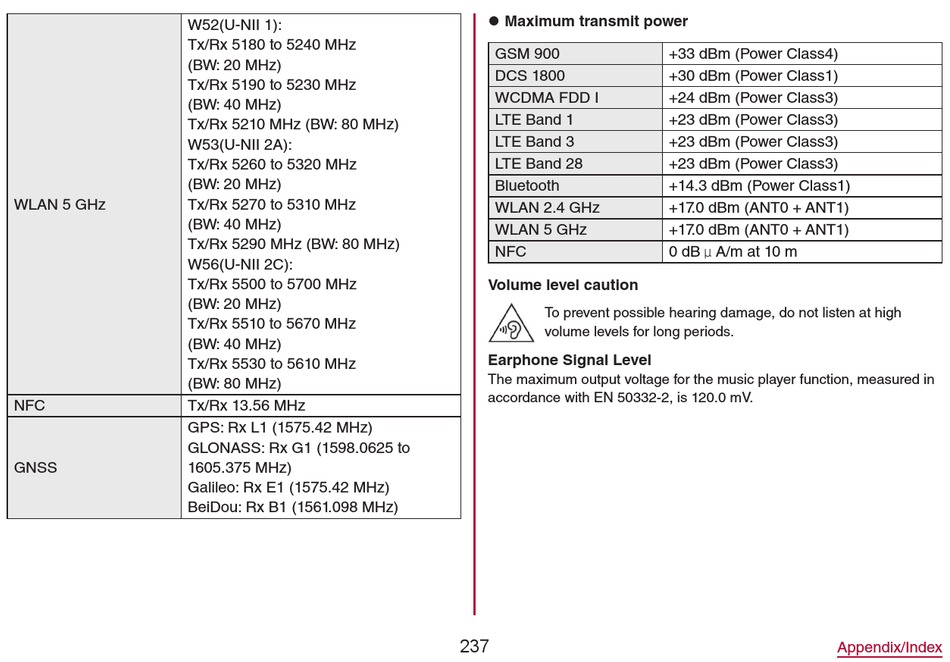

W52(U-NII 1):
Tx/Rx 5180 to 5240 MHz
(BW: 20 MHz)
Tx/Rx 5190 to 5230 MHz
(BW: 40 MHz)
Tx/Rx 5210 MHz (BW: 80 MHz)
W53(U-NII 2A):
Tx/Rx 5260 to 5320 MHz
(BW: 20 MHz)
WLAN 5 GHz Tx/Rx 5270 to 5310 MHz
(BW: 40 MHz)
Tx/Rx 5290 MHz (BW: 80 MHz)
W56(U-NII 2C):
Tx/Rx 5500 to 5700 MHz
(BW: 20 MHz)
Tx/Rx 5510 to 5670 MHz
(BW: 40 MHz)
Tx/Rx 5530 to 5610 MHz
(BW: 80 MHz)
NFC Tx/Rx 13.56 MHz
GPS: Rx L1 (1575.42 MHz)
GLONASS: Rx G1 (1598.0625 to
GNSS 1605.375 MHz)
Galileo: Rx E1 (1575.42 MHz)
BeiDou: Rx B1 (1561.098 MHz)
z Maximum transmit power
GSM 900
DCS 1800
WCDMA FDD I
LTE Band 1
LTE Band 3
LTE Band 28
Bluetooth
WLAN 2.4 GHz
WLAN 5 GHz
NFC
Volume level caution
To prevent possible hearing damage, do not listen at high
volume levels for long periods.
Earphone Signal Level
The maximum output voltage for the music player function, measured in
accordance with EN 50332-2, is 120.0 mV.
237
+33 dBm (Power Class4)
+30 dBm (Power Class1)
+24 dBm (Power Class3)
+23 dBm (Power Class3)
+23 dBm (Power Class3)
+23 dBm (Power Class3)
+14.3 dBm (Power Class1)
+17.0 dBm (ANT0 + ANT1)
+17.0 dBm (ANT0 + ANT1)
0 dBμA/m at 10 m
