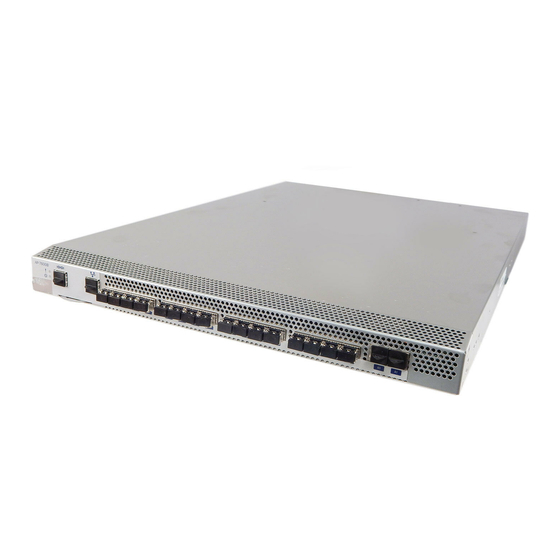

EMC Connectrix B Series
Hardware Reference Manual
Corporate Headquarters:
Hopkinton, MA 01748
DS-5300B
Version 6.1
P/N 300-006-783
REV A01
EMC Corporation
-
9103
-
-
-
1
508
435
1000
www.EMC.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Connectrix B Series and is the answer not in the manual?

Questions and answers

Related Manuals for EMC Connectrix B Series

Summary of Contents for EMC Connectrix B Series

  • Page 1 EMC Connectrix B Series DS-5300B Version 6.1 Hardware Reference Manual P/N 300-006-783 REV A01 EMC Corporation Corporate Headquarters: Hopkinton, MA 01748 9103 1000 www.EMC.com...
  • Page 2 Copyright © 2008 EMC Corporation. All rights reserved. Published July, 2008 EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION MAKES NO...

  • Page 3: Table Of Contents

    Using EZSwitch Setup (optional) ..........26 Providing power to the switch ..........26 Creating a serial connection ............27 Setting the switch IP address ............ 27 Setting the date and time ............28 EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 4 MIC statement (Republic of Korea) ........63 VCCI statement Japan............... 63 Power cords (Japan Denan)............63 CE statement ................63 Canadian requirements ............64 Laser compliance ............... 64 RTC battery................. 65 Electrical safey................65 Regulatory certifications............66 Index EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 5: Preface

    Preface As part of an effort to improve and enhance the performance and capabilities of its product lines, EMC periodically releases revisions of its hardware and software. Therefore, some functions described in this document may not be supported by all versions of the software or hardware currently in use. For the most up-to-date information on product features, refer to your product release notes.
  • Page 6 Preface EMC Connectrix B Series Fabric OS Web Tools Administrator’s ◆ Guide EMC Connectrix B Series Troubleshooting and Diagnostics Guide ◆ EMC Support Matrix For the most up-to-date information, always consult the EMC Support and E-Lab Matrix (ESM), available through E-Lab Interoperability Navigator Interoperability (ELN) at: http://elabnavigator.EMC.com, under the PDFs and...
  • Page 7 Typographical conventions EMC uses the following type style conventions in this document: Normal Used in running (nonprocedural) text for: • Names of interface elements (such as names of windows, dialog boxes, buttons, fields, and menus) •...
  • Page 8 Technical support — For technical support, go to EMC Customer Service on Powerlink. To open a service request through Powerlink, you must have a valid support agreement. Please contact your EMC sales representative for details about obtaining a valid support agreement or to answer any questions about your account.
  • Page 9 Use the licenseIdShow command to display the license ID. Your comments Your suggestions will help us continue to improve the accuracy, organization, and overall quality of the user publications. Please send your opinion of this document to: techpubcomments@EMC.com EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 10 Preface EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 11: Introducing The Connectrix Ds-5300B

    Introducing the Connectrix DS-5300B This chapter contains the following information: Overview of the Connectrix DS-5300B ........... 12 ◆ Port side of the DS-5300B..............14 ◆ Nonport side of the DS-5300B ............15 ◆ Ports on demand ................16 ◆ ISL trunking ..................17 ◆...

  • Page 12: Overview Of The Connectrix Ds-5300B

    An RJ45 Ethernet management port, in conjunction with ◆ EZSwitchSetup, that supports switch IP address discovery and configuration, eliminating the need to attach a serial cable to configure the switch IP address and greatly increasing the ease of use. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 13 Introducing the Connectrix DS-5300B USB port that provides storage for firmware updates, output of the ◆ supportsave command and storage for configuration uploads and downloads. A system motherboard that features a Freescale MPC8548 Reduced ◆ Instruction Set Computer (RISC) CPU running @ 1.3GHz with integrated peripherals that provides high performance with low power consumption.

  • Page 14: Port Side Of The Ds-5300B

    Ethernet Port 13 FC Ports 48-55 USB Port 14 FC Ports 56-63 FC Ports 0-7 15 FC Ports 64-71 FC Ports 8-15 16 FC Ports 72-79 Figure 1 Port Side of the DS-5300B EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 15: Nonport Side Of The Ds-5300B

    Introducing the Connectrix DS-5300B Nonport side of the DS-5300B Figure 2 shows the nonport side of the DS-5300B, which contains the power supplies (including the AC power receptacle and AC power switch) and fans. DS-5300B Fan Assembly #2 Nonport Side of Switch Fan Assembly #1 Power Supply #2 Power Supply #1...

  • Page 16: Ports On Demand

    For detailed information on enabling additional ports using the Ports on Demand license, refer to the EMC Connectrix B Series Fabric OS Administrator’s Guide. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 17: Isl Trunking

    ISL Trunking is optional software that allows you to create trunking groups of ISLs between adjacent switches. Each 8 port group on the DS-5300B can be used as a trunking group. For more information about ISL Trunking, see the EMC Connectrix B Series Fabric OS Administrator’s Guide. ISL trunking...
  • Page 18 Introducing the Connectrix DS-5300B EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 19: Installing And Configuring The Ds-5300B

    DS-5300B This chapter provides information on setting up and performing an initial configuration of the Connectrix DS-5300B. See the EMC Connectrix B Series Fabric OS Administrator’s Guide for more detailed configuration information: Items included with the DS-5300B ..........20 ◆...

  • Page 20: Items Included With The Ds-5300B

    • Rubber Feet, required for setting up the switch as a standalone unit • Connectrix DS-5300B QuickStart Guide • EZSwitch Setup CD • Fabric Manager Evaluation CD (not required for installation) • Optional SFP transceivers EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 21: Installation And Safety Considerations

    Installing and Configuring the DS-5300B Installation and safety considerations You can install the DS-5300B switch in the following ways: 1. As a standalone unit on a flat surface. 2. In an EIA cabinet using an optional fixed rack mount kit, slide rack mount kit, or mid-mount rack kit.

  • Page 22: Cabinet Considerations

    • Leave at least 3.28 ft (1 m) of slack for each port cable. This provides room to remove and replace the switch, allows for inadvertent movement of the rack, and helps prevent the cables from being bent to less than the minimum bend radius. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 23: Items Required For Installation

    • If you are using ISL Trunking, consider grouping cables by trunking groups. The cables used in trunking groups must meet specific requirements, as described in the EMC Connectrix B Series Fabric OS Administrator’s Guide. • For easier maintenance, label the fiber optic cables and record the devices to which they are connected.

  • Page 24: Installing A Standalone Ds-5300B

    DS-5300B on and off” on page 34 Note: Do not connect the switch to the network until the IP address is correctly set. For instructions on how to set the IP address, see “Configuring the DS-5300B” on page EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 25: Installing A Ds-5300B Into An Eia Cabinet

    Installing and Configuring the DS-5300B Installing a DS-5300B into an EIA cabinet The rack mount kit can be installed in two ways: • To allow the port side of the switch to slide out of the exhaust-air side of the cabinet. In this installation, the port side of the switch is flush with the edge of the cabinet.

  • Page 26: Configuring The Ds-5300B

    Note: Power is supplied to the switch as soon as the first power supply is connected and turned on. 3. After POST is complete, verify that the switch power and status LEDs on the left of the port side of the switch are green. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 27: Creating A Serial Connection

    Installing and Configuring the DS-5300B Creating a serial connection You will perform all configuration tasks in this guide using a serial connection. 1. Connect the serial cable to the serial port on the switch and to an RS-232 serial port on the workstation. If the serial port on the workstation is RJ-45 instead of RS-232, remove the adapter on the end of the serial cable and insert the exposed RJ-45 connector into the RJ-45 serial port on...

  • Page 28: Setting The Date And Time

    DS-5300B with an incorrect date and time value still functions properly. However, because the date and time are used for logging, error detection, and troubleshooting, you should set them correctly. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 29 The tsTimeZone command includes an option to revert to the prior time zone format. For more information about the old option, see the EMC Connectrix B Series Fabric OS Command Reference Guide. You can set the time zone for a switch using the tsTimeZone command.
  • Page 30 1. Type the tsTimeZone command as follows: switch:admin> tstimezone --interactive 2. You are prompted to select a general location. Please identify a location so that time zone rules can be set correctly. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 31 Installing and Configuring the DS-5300B 3. Enter the appropriate number or Ctrl-D to quit. 4. At the prompt, select a country location. 5. At the prompt, enter the appropriate number to specify the time zone region or Ctrl-D to quit. Synchronizing local time using NTP You can synchronize the local time of the principal or primary fabric configuration server (FCS) switch to a maximum of eight external...
  • Page 32 "10.32.170.1;10.32.170.2;ntp.localdomain.net" Updating Clock Server configuration...done. Updated with the NTP servers Changes to the clock server value on the principal or primary FCS switch are propagated to all switches in the fabric. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 33 Operating the DS-5300B This chapter contains the following information: Powering the DS-5300B on and off..........34 ◆ Interpreting LED activity ..............35 ◆ POST and boot specifications............41 ◆ Maintaining the DS-5300B ..............43 ◆ Managing the DS-5300B ..............49 ◆...

  • Page 34: Operating The Ds-5300B

    To power the DS-5300B off, power off both power supplies by setting each AC power switch to “O”. All devices are returned to their initial state the next time the switch is powered on. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 35: Interpreting Led Activity

    Operating the DS-5300B Interpreting LED activity System activity and status can be determined through the activity of the LEDs on the switch. There are three possible LED states: No light ◆ Steady light ◆ Flashing light ◆ The lights are in one of the following colors: Green ◆...
  • Page 36 11 FC Port Status LED (port 48) Ethernet Port 12 FC Port Status LED (port 52) Ethernet Speed LED 13 FC Ports (53 through 55) Ethernet Link LED LEDS on port side of the DS-5300B Figure 3 EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 37 “1”), the power cables attached, and your power source is live. If the system power LED is not green, the unit may be faulty. Contact your EMC Customer Service representative.. Steady green System is on and power supplies are No action required.

  • Page 38: Leds On The Non-Port Side Of The Switch

    One power supply LED above the AC power switch on each ◆ power supply One fan status LED at the bottom of each fan assembly ◆ Figure 4 on page 39 shows the non-port side of the switch. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 39 Operating the DS-5300B Power Supply #2 Status LED Power Supply #1 Status LED Power Supply #2 Power Supply #1 Fan Assembly #3 Fan Assembly #3 Status LED Fan Assembly #2 Fan Assembly #2 Status LED Fan Assembly #1 10 Fan Assembly #1 Status LED LEDs on non-port side of the DS-5300B Figure 4 Table 2 on page 40...
  • Page 40 Replace the fan FRU The fan FRU was disabled by the user Note: When the switch is first powered on the fan status LED will show amber until POST has completed. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 41: Post And Boot Specifications

    POST can be skipped after subsequent reboots by entering the fastBoot command. For more information about this command, see the EMC Connectrix B Series Fabric OS Command Reference Guide. POST The success/fail results of the diagnostic tests that run during POST can be monitored through LED activity, the error log, or a command line interface.

  • Page 42: Interpreting Post Results

    • Verify that the LEDs are not set to “beacon” (this can be determined through the switchShow command or Web Tools). For information about how to turn beaconing on and off, see the EMC Connectrix B Series Fabric OS Administrator’s Guide or the <Italic>Advanced Web Tools Administrator’s Guide.

  • Page 43: Maintaining The Ds-5300B

    Operating the DS-5300B Maintaining the DS-5300B The DS-5300B is designed for high availability and low failure; it does not require any regular physical maintenance. It includes diagnostic tests and field-replaceable units, described in the following sections. Installing an SFP The DS-5300B only supports Brocade-branded SFPs. If you use an unqualified SFP, the switchShow command output will show the port in an Mod_Inv state.

  • Page 44: Diagnostic Tests

    For information about specific diagnostic tests, see the EMC Connectrix B Series Fabric OS Command Reference Guide . EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 45: Field Replaceable Units (Frus)

    Operating the DS-5300B Field Replaceable Units (FRUs) You can replace the power supplies and fan assemblies on site without the use of special tools. The power supplies and fan assemblies are keyed to ensure correct orientation during installation. Installation instructions are provided with all replacement units. CAUTION The DS-5300B has two power cords.
  • Page 46 Phillips-head screwdriver #1 ◆ Replacing the fan assembly To replace a fan assembly in a DS-5300B: 1. Unscrew the captive screw on the fan assembly you are replacing using a Phillips-head screwdriver. EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 47 Operating the DS-5300B 2. Remove the fan assembly you are replacing from the chassis by pulling the handle out, away from the chassis. 3. Install the new fan assembly in the chassis: a. Orient the new fan assembly as shown in Figure 5, with the captive screw on the right.
  • Page 48 Operating the DS-5300B scale: 1/4" = 1" Scale: 3/8" = 1" DS-5300B Status LED Fan assembly unit Handle Captive screw Non-port side Installing the Fan Assembly in the DS-5300B Figure 6 EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 49: Managing The Ds-5300B

    POST, see “POST and boot specifications” on page For information about upgrading the version of Fabric OS installed on your switch, see the EMC Connectrix B Series Fabric OS Administrator’s Guide. DS-5300B You can manage the using any of the management options listed...
  • Page 50 Operating the DS-5300B EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 51: Specifications

    Specifications This appendix contains the following information: Weight and physical dimensions ............. 52 ◆ Facility requirements ................. 53 ◆ Power supply specifications............. 54 ◆ Environmental requirements............55 ◆ General specifications................ 56 ◆ Data transmission ranges..............58 ◆ Memory specifications ..............59 ◆...

  • Page 52: Weight And Physical Dimensions

    2U or 8.6 cm (3.4 in.) Depth 61 cm (24 in.) Width 42.8 cm (16.8 in.) Weight (with two power supplies, three fan assemblies, and 15.6 kg (34.4 lb) zero SFPs installed) EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 53: Facility Requirements

    Specifications Facility requirements To ensure correct operation of the switch, the facility where the switch is in use must meet the following requirements: Electrical: ◆ • Primary AC input 100-240 VAC (switch autosenses input voltage), 47-63 Hz • Correctly wired primary outlet, protected by a circuit breaker and grounded in accordance with local electrical codes •...

  • Page 54: Power Supply Specifications

    Inrush current Maximum of 15A for period of 10-150mS Input line protection Both AC lines are fused Maximum output of one power supply 300 Watts Nominal system DC power consumption 260 Watts EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 55: Environmental Requirements

    Specifications Environmental requirements Table 6 lists the acceptable environmental ranges for both operating and nonoperating (such as during transportation or storage) conditions. Table 6 Environmental requirements Condition Acceptable during operation Acceptable During Non-Operation Ambient 0º to 40º C -25º to 70º C Temperature 32º...

  • Page 56: General Specifications

    CISPR22 and JEIDA (Harmonics) European Community EN60950-1 or latest EN55022 and EN55024 Australia/New Zealand EN55022 or CISPR22 or AS/NZS CISPR22 Argentina IEC60950-1 or latest Russian Federation IEC60950-1 or latest 51318.22-99 and 51318.24.99 EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 57 Specifications EMC (electromagnetic compatibility) (2 of 2) Table 8 Country Safety Korea KN22 and KN24 China (PS only) GB4943-2001 and GB17625.1-2003 or latest GB9254-1998 or latest Taiwan (PS only) CNS 14336(94) or latest CNS 13438(95) or latest General specifications...

  • Page 58: Data Transmission Ranges

    62.5µ / 200 MHz (OM1) 33 m (108 ft) 10 Gbps 9µ 10 Km (6.2 miles) Up to 500km at 1G is supported when using long distance transport system such as DWDM. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 59: Memory Specifications

    Specifications Memory specifications The DS-5300B has three types of memory devices: Boot flash - 4 MB ◆ Compact flash - 1 GB ◆ Main memory (DDR2 SDRAM) - 1 GB ◆ Memory specifications...

  • Page 60: Fibre Channel Port Specifications

    The ports meet all required safety standards. For more information about these standards, see “Regulatory compliance” on page The ports are capable of operating at 1-, 2-, 4, or 8-Gbps and are able to auto-negotiate to the maximum link speed. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 61: Serial Port Specifications

    Specifications Serial port specifications The serial port is located on the port side of the switch. The DS-5300B uses an RJ-45 connector for serial port. An RJ-45 to DB9 adaptor cable is also provided with the switch. Note: To protect the serial port from damage, keep the cover on the port when not in use.

  • Page 62: Regulatory Compliance

    Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at the user’s own expense. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 63: Mic Statement (Republic Of Korea)

    Specifications MIC statement (Republic of Korea) VCCI statement Japan This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance might arise. When such trouble occurs, the user might be required to take corrective actions.

  • Page 64: Canadian Requirements

    Communications Systems, Inc. and comply with the FDA Class 1 radiation performance requirements defined in 21 CFR Subchapter I, and with IEC 825-2. Optical products that do not comply with these standards might emit light that is hazardous to the eyes. EMC Connectrix B Series DS-5300B Hardware Reference Manual...

  • Page 65: Rtc Battery

    Specifications RTC battery CAUTION Do not attempt to replace the real-time clock (RTC) battery. There is danger of explosion if the battery is incorrectly replaced or disposed of. Contact your switch supplier if the real-time clock begins to lose time. Electrical safey CAUTION This switch might have more than one power cord.To reduce the...

  • Page 66: Regulatory Certifications

    IEC60950-1 or latest 51318.22-99 and 51318.24.99 Korea KN22 and KN24 China (PS only) GB4943-2001 and GB9254-1998 or GB17625.1-2003 or latest latest Taiwan (PS only) CNS 14336(94) or latest CNS 13438(95) or latest EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 67 44 LOCL 31 logging timestamp 28 environmental requirements 55 event date and time 28 maintaining 43 Management Server 49 managing 49 Fabric Manager 49 memory specifications 59 facility requirements 53 EMC Connectrix B Series DS-5300B Hardware Reference Manual...
  • Page 68 28 Setting time zones 29 settings date and time 28 SNMP 49 time 28 time and date 28 time zones 28 tsclockserver 30, 32 tsTimeZone 30 VCCI statement 63 EMC Connectrix B Series DS-5300B Hardware Reference Manual...
