OTHERS
Power
Dimension (LWD)
Weight
Temperature
Accessories

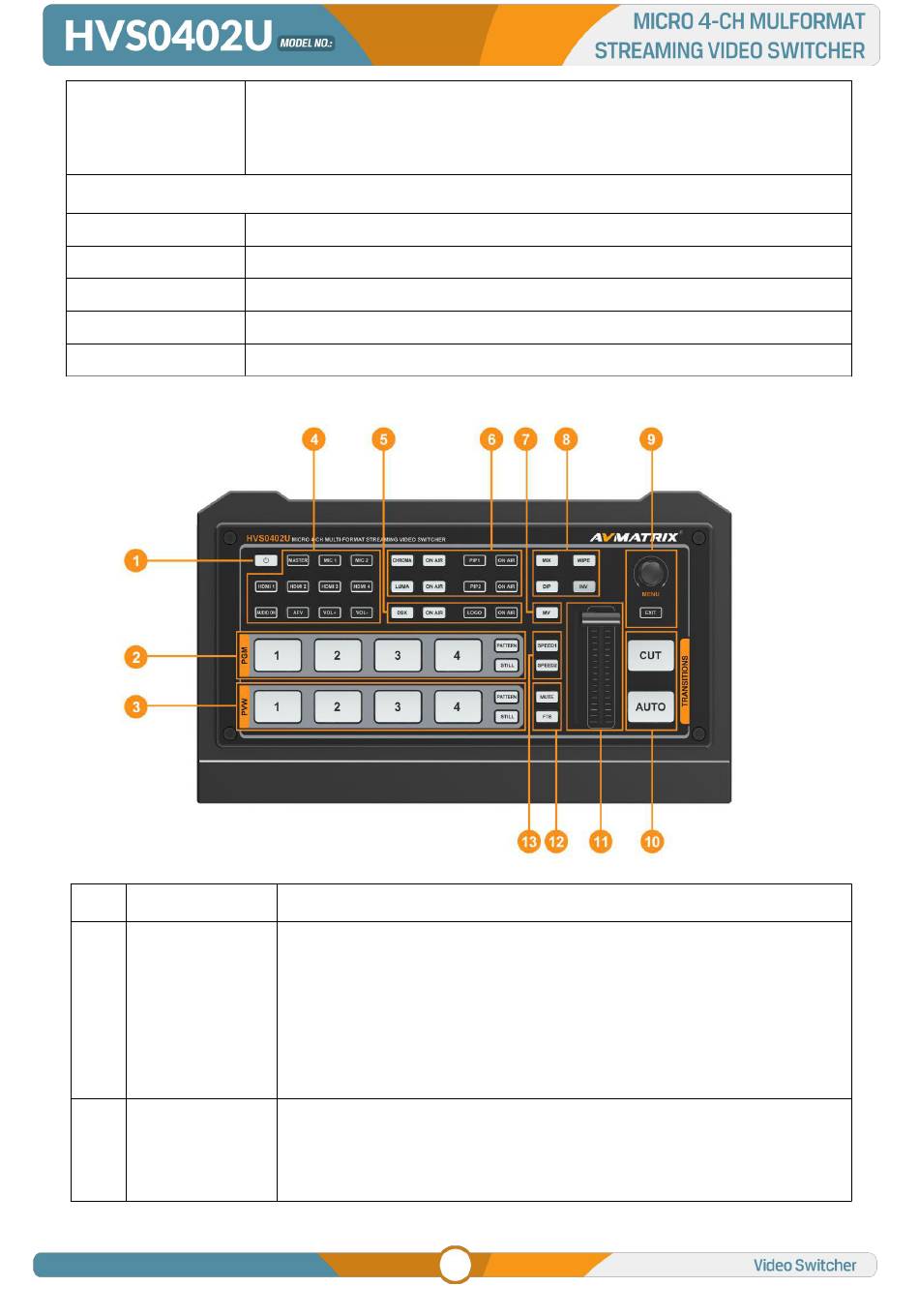

4. FRONT CONTROL PANEL

1 Power
2 PGM:1-4
3 PVW:1-4
Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo size support: 10×10 pixel to 600×600 pixel
Wide voltage: 7~24V; Operating power:12W (12V 1A)
244.5 × 143.2 × 44.5mm
Net: 1030g; Gross: 1500g
Working: -20℃~60℃, Storage: -30℃~70℃
Power supply (12V 2A) ×1; USB cable (type A-C) ×1; Tally connector (DB-15) ×1
Press the power to start the device; Press 3s to shut down the system
Selecting the signal source for Program.
PATTERN for setting a pattern to PGM, STILL for freezing the input source.
Note: different patterns can be set including Black/Color Bar/Color1
/Color2/ HDMI In1/HDMI In2/HDMI In3/HDMI In4/Image. (Refers to Part
13.1)
Selecting the signal source for Preview.
PATTERN for setting a pattern to PVW (Refers to Part 13.1), STILL for
freezing the input source (Refers to Part 7.2).
4
