AVMATRIX HVS0402U Manual

Micro 4 channel hdmi live stream multi-format video switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

MICRO 4 CHANNEL HDMI LIVE STREAM
MULTI-FORMAT VIDEO SWITCHER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HVS0402U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVMATRIX HVS0402U

Summary of Contents for AVMATRIX HVS0402U

  • Page 1 MICRO 4 CHANNEL HDMI LIVE STREAM MULTI-FORMAT VIDEO SWITCHER...
  • Page 2 USING THE UNIT SAFELY Before using this unit, please read below warning and precautions which provide important information concerning the proper operation of the unit. Besides, to assure that you have gained a good grasp of every feature of your new unit, read below manual. This manual should be saved and kept on hand for further convenient reference.

  • Page 3: Table Of Contents

    CONTENTS 1. BRIEF INTRODUCTION..........................1 1.1. Overview..............................1 1.2. Main Features............................. 1 2. INTERFACES..............................2 2.1. Interface Overview............................2 2.2. Tally PIN Definition.............................2 3. SPECIFICATION............................3 4. FRONT CONTROL PANEL.........................4 5. POWER ON/ OFF............................5 6. MULTIVIEW..............................6 6.1. Status Page..............................6 6.2. Layouts.................................7 6.3.
  • Page 4 10.2. LOGO............................... 18 11. OUTPUT SETTING........................... 19 11.1. Output Interfaces............................ 19 11.2. Multiview Out............................19 11.3. PGM Out..............................20 11.4. USB Out..............................20 11.5. Output Format Setting........................... 21 11.6. FTB................................21 12. AUDIO SETTING............................22 12.1. Master Audio............................22 12.2. Audio On (MIX)............................22 12.3.

  • Page 5: Brief Introduction

    1. BRIEF INTRODUCTION 1.1. Overview HVS0402U is a 4-channel HDMI multi-format video Switcher with compact metal case design. It supports various functions including video switching, audio mixing, PGM/ multiview/ Aux out, different transition effects, Luma Key Chroma Key, DSK, LOGO, PIP/ POP, media library, pattern and color generator, etc.

  • Page 6: Interfaces

    2. INTERFACES 2.1. Interface Overview MIC/Line level IN × 2 HDMI IN × 4 MULTIVIEW(AUX) OUT × 1 PGM(AUX) OUT × 1 USB OUT × 1 (for live streaming on PC) LAN port for PC software control GPIO (for tally) DC 12V IN ×...

  • Page 7: Specification

    3. SPECIFICATION CONNECTION Video In HDMI type-A ×4 HDMI type-A PGM ×1 HDMI type-A Multiview ×1 Video Out USB2.0 type C ×1 (Streaming on PC) Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview Audio In MIC/ Line level (3.5mm stereo audio) ×2 PC Control Port LAN×1 Media Library...

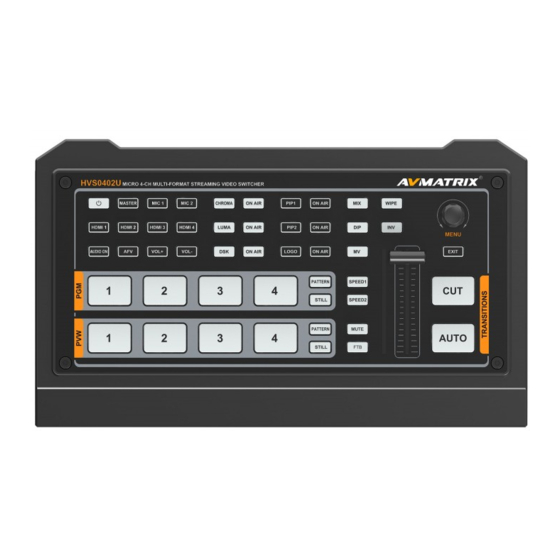

  • Page 8: Front Control Panel

    Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga Logo size support: 10×10 pixel to 600×600 pixel OTHERS Power Wide voltage: 7~24V; Operating power:12W (12V 1A) Dimension (LWD) 244.5 ×...

  • Page 9: Power On/ Off

    User can configure the audio of each channel in this area, including AFV or AUDIO audio mix mode, audio source selecting, adjust volume + & volume - DSK: Enable the downstream key ON AIR: make the DSK on air CHROMA: Enable the Chroma Key LUMA: Enable the Chroma Key CHROMA KEY PIP1/PIP2: Enable two group of Picture in Picture.

  • Page 10: Multiview

    6. MULTIVIEW The switcher has two HDMI outputs (PGM/Multiview). The two HDMI ports are both the AUX out that user can define it as output of HDMI 1/ HDMI 2/ HDMI 3/ HDMI 4/ PGM/ Clean PGM/ PVW/ Color Bar/ Multiview (Refer to part 11).

  • Page 11: Layouts

    The information of user name, working time, USB connection, CPU working temperature, system time keeps displaying in the bottom of the Status/Menu page. The information on the status page will be updated in real time as the settings changed. It’s clear and visible for user to know the current situation and settings.

  • Page 12: Audio Meter

    - Vertical Layout: 6.3. Audio Meter There are audio meters in each windows of Multiview, including HDMI1-4, PGM and MIC to show the audio status of each audio. The audio meters of MIC 1 and MIC 2 show in the left and right of PVW window.

  • Page 13: Umd Settings

    HDMI input. User can turn on/off overlay in each input window. Besides, user can set the overlay Opacity (50%, 75%, 100%), Size (Small/Medium/Large), Position X & Y (1-100), Text color and Background Color. See below image. 6.5. UMD Settings The default UMD of the four inputs are HDMI1, HDMI2, HDMI3, HDMI4. User can turn on/off the UMD in each window.

  • Page 14: Pgm Pvw Switching

    The UMD string content for 4 HDMI inputs can be set from menu. User can rename the UMD content for each window by using a virtual keyboard and rotary button. It supports input max 10 characters for the UMD content. Below image as an example, rename the HDMI 1 to CAM1. 7.

  • Page 15: Still

    7.2. STILL The video switcher supports STILL function, which user can freeze the input sources. Press the channel you want to freeze in the PGM or PVW row, then press the STILL button to make the input source freeze. User can freeze all the four inputs if they need. Press the input channel and STILL again to unfreeze. 7.3.

  • Page 16: Dip

    Press the INV button to invert the selected wipe so it acts in the opposite direction. 8.2. DIP Press the DIP button to perform the DIP transition effect. User can select the various color for DIP from the palette on menu. The default color is black. DIP to Black (fade out): DIP to White (fade out): 8.3.

  • Page 17: Upstream Key

    9. UPSTREAM KEY Upstream Key essentially means that these are keys that are included as part of the transition, so in the transition from whatever on Preview to Program, anything that's an Upstream key is going to be transitioned with it. 9.1.

  • Page 18: Chroma Key

    Menu Sub-menu Item Parameter Default Luma Status OFF/ KEY (PVW)/ ON AIR (PGM)/ KEY & ON AIR Black/ Color Bar/ Color 1/ Color 2/ HDMI 1/ HDMI Fill Source Color1 2/ HDMI 3/ HDMI 4/ Image Black/ Color Bar/ Color 1/ Color 2/ HDMI 1/ HDMI Key Source Image 2/ HDMI 3/ HDMI 4/ Image...
  • Page 19 two images or video streams together based on color hues (chroma range). The technique has been used in many fields to remove a background from the subject of a photo or video, particularly the newscasting, motion picture, and video game industries. User can configure the effect of Chroma Key, including the key source, Key color, Clip, Gain, key Fetch and mask, etc.

  • Page 20: Pip & Pop

    9.3. PIP & POP The video switcher supports two groups PIP or one POP. When press PIP1 or PIP2 button, there will be a small image display on the top left corner of PVW window. Press the Menu knob and choose the PIP setting interface, user can set parameters including position, size, border etc.

  • Page 21: Downstream Key

    PIP2 Position X 0~100 PIP2 Position Y 0~100 OFF/ KEY (PVW)/ ON AIR (PGM)/ POP Status KEY & ON AIR Black/ Color Bar/ Color 1/ Color 2/ POP Source 1 HDMI 1/ HDMI 2/ HDMI 3 /HDMI 4/ HDMI 1 Image Black/ Color Bar/ Color 1/ Color 2/ POP Source 2...

  • Page 22: Logo

    Downstream Key detailed parameters as below: Menu Sub-Menu Item Parameter Default OFF/ KEY (PVW)/ ON AIR (PGM)/ KEY & DSK Status ON AIR Black/ Color Bar/ Color 1/ Color 2/ HDMI 1/ Fill Source Black HDMI 2/ HDMI 3 /HDMI 4/ Image Black/ Color Bar/ Color 1/ Color 2/ HDMI 1/ Key Source Black...

  • Page 23: Output Setting

    OUTPUT SETTING 11.1. Output Interfaces HVS0402U has 3 output interfaces. They are default as Multiview Out, PGM Out and USB Out. All the 3 outputs also can be defined as an AUX OUT from HDMI1, HDMI2, HDMI3, HDMI4, PVW, PGM, Clean PGM, Color Bar and Multiview out.

  • Page 24: Pgm Out

    11.3. PGM Out When one of outputs defined as PGM out, user can connect it to an additional LCD display to monitor the PGM out video. The PGM out video is the program video including the overlay images from USK and DSK. PGM Clean out is the program video removing the overlay images from DSK.

  • Page 25: Output Format Setting

    11.5. Output Format Setting 11.5.1. PGM Image Setting User can set Brightness, Contrast, Saturation of PGM output in the menu. The setting range is from 0%-100%. The default setting is 50%. 11.5.2. PGM and Multiview Format The switcher supports up/ down scaling output. Besides, user can switch the Frame Rate Mode between Integer or Decimal.

  • Page 26: Audio Setting

    (1) Set the FTB and Mute speed Besides, the speed of FTB / MUTE can be adjusted from 0-3s in the menu. The speed is the time of whole transition for FTB and MUTE. For example, if the speed set to 2.5s the PGM video will be fading to black with audio becoming mute gradually in 2.5s.

  • Page 27: Afv

    12.3. AFV(Audio-Follow-Video) Each channel of the 4 HDMI embedded audios can be set to AFV (Audio-Follow-Video). When one HDMI audio is set to AFV mode, then the audio will be turned on only when PGM switch to this channel video source.

  • Page 28: Audio Keyboard Configuration

    Earphone or adjust audio volume. 12.7. Audio Keyboard Configuration The audio not only can be configured by the menu but also can be configured by the keyboard control of the switcher. The keyboard includes two parts as below image. Part A is for selecting one audio to be configured, including Master, MIC 1, MIC 2, HDMI 1, HDMI 2, HDMI 3 and HDMI 4.

  • Page 29: Mute

    ON button is on in green and indicator of AFV button is off, which means the audio of HDMI 1 is on and the AFV of HDMI 1 is off. 12.7.2. Audio Configuration Steps Step 1. Press one button from Part A to select the audio for configuration, the LED indicator of the button will keep flashing, which means it is available to make configuration.

  • Page 30: Image Setting

    luminance to generate the color pattern for Color 1 and Color 2. See below image. 13.3. Image Setting The Image as one of sources for PVW Pattern and PGM Pattern. User can choose the Image source from Default Image, Local Image or Capture Image. The selected image is the last selection from Default image, Local Image, and Capture Image.

  • Page 31: System Setting

    13.3.3. Capture Image The capture image comes from screenshot of HDMI 1, HDMI 2, HDMI3, HDMI 4, Clean PGM, PGM. The captured image will be listed in the media list. Up to 16 captured images supported. User can press the rotary button to select the captured image as source for PVW/ PGM pattern by selecting the option Select.

  • Page 32: System Reset

    OS computer via LAN port to have remote control. The software user manual downloaded from website: https://www.avmatrix.net/download/ , or through scanning below QR code in the menu. 14.5. Version Check the switcher’s Software Version, FPGA Version, MCU Version, PCB Version. 14.6. Time Setting 14.6.1. Setting Time Manually User can set Year/ Month/ Day/ Hour/ Minute directly through the Menu.

  • Page 33: User Setting

    When turn off the DHCP, user can set the IP address, Subnet Mask, Gate way from menu manually. The default IP address of the switcher is 192.168.1.215. 14.8. User Setting User can save all current settings into an account in the switcher. Adding a new user account, renaming the account, switching between accounts, deleting the account or even user can import or export the account to a USB flash disk.
